DC-R Series（Large-sized machine）
Die casting machine with electric mold clamping function “DC1100R-E”
- Mold clamping time is reduced by adopting a toggle mechanism driven by an electric servo motor. Stable operation by high response and precise position control compared with hydraulic mold clamping. Simultaneous operation of electric clamping and hydraulic actuator realizes high cycle.
- The injection mechanism adopts a piston control system newly developed in the small-and medium-sized R series to shorten the adjustment time.
- Stable pressure intensifying injection by installing an accumulator as standard as a conventional large-sized machine.
Die casting machine with electric mold clamping function “DC1300R-E”
- The injection mechanism is equipped with the same large-capacity servo as the high-grade model.
- By adopting the wide template as the standard for the die plate, it is also possible to handle large molds!

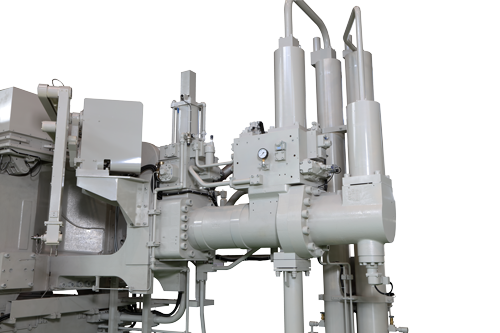

Injection mechanism

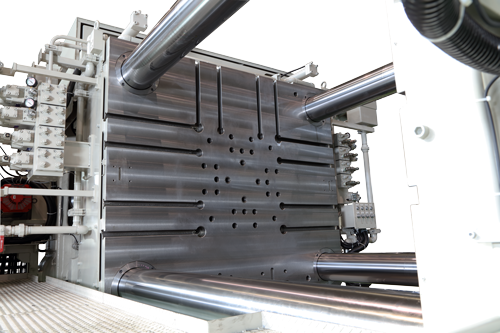

Peripheral part of the die plate
