DC-J Series

J series that fills three performances requested from high cycle to say nothing of J high performance and convenience and machine. The preset feature will be enhanced and we answer needs that are three models of high-grade machine JMH that demonstrates standard machine JMS and highest shooting speed 10 - 13m/s at which standard machine JSC and the servo valve equipped with CAST EYE are installed more various.

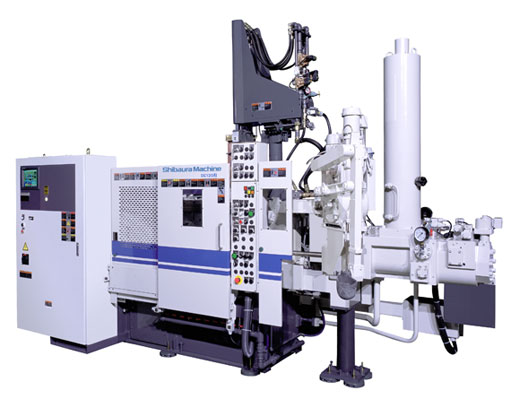

DC135J -T
DC135J -T
Specification item Unit DC135J-SC DC135J-T
Die locking force kN (ton) 1350 (138) 1350 (138)
Injection speed m/sec 0.05 - 7.0 0.05 - 6.0
Tie-bar spacing (H*W) mm 460 × 460 460 × 460
Die height mm 500 - 250 500 - 250
Die stroke mm 350 350
TOSCAST No Standard
Servo Control Injection No Option
CAST EYE Standard No
Specification item Unit DC250J-SC DC250J-MS DC250J-MH
Die locking force kN (ton) 2500 (255) 2500 (255) 2500 (255)
Injection speed m/sec 0.1 - 7.0 0.05 - 8.0 0.05 - 13.0
Tie-bar spacing (H*W) mm 580 × 580 580 × 580 580 × 580
Die height mm 600 - 300 600 - 300 600 - 300
Die stroke mm 360 360 360
TOSCAST No Standard Standard
Servo Control Injection No Standard Standard
CAST EYE Standard No No

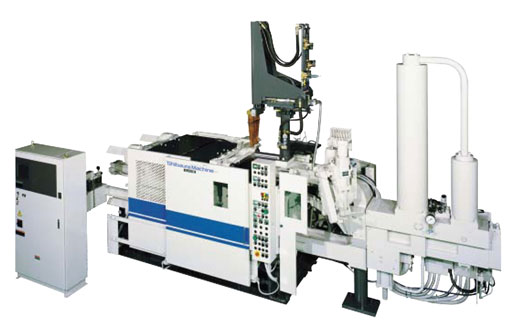

DC350J-MS
DC350J-MS
Specification item Unit DC350J-SX DC350J-MS DC350J-MH
Die locking force kN (ton) 3500 (357) 3500 (357) 3500 (357)
Injection speed m/sec 0.1-7.0 0.1-8.0 0.05-11.0
Tie-bar spacing (H*W) mm 650*650 650*650 650*650
Die height mm 700-300 700-300 700-300
Die stroke mm 420 420 420
TOSCAST No Standard Standard
Servo Control Injection No Standard Standard
CAST EYE Standard No No
Specification item Unit DC500J-SX DC500CJ-MS DC500J-MH
Die locking force kN (ton) 5000 (510) 5000 (510) 500 (510)
Injection speed m/sec 0.1-7.0 0.1-8.0 0.1-12.0
Tie-bar spacing (H*W) mm 750*750 750*750 750*750
Die height mm 850-350 850-350 850-350
Die stroke mm 550 550 550
TOSCAST No Standard Standard
Servo Control Injection No Standard Standard
CAST EYE Standard No No
Specification item Unit DC650J-SX DC650J-MS DC650J-MH
Die locking force kN (ton) 6500 (663) 6500 (663) 6500 (663)
Injection speed m/sec 0.1-7.0 0.1-7.0 0.05-10.5
Tie-bar spacing (H*W) mm 850*850 850*850 850*850
Die height mm 900-350 900-350 900-350
Die stroke mm 660 660 660
TOSCAST No Standard Standard
Servo Control Injection No Standard Standard
CAST EYE Standard No No
DC800J-MS

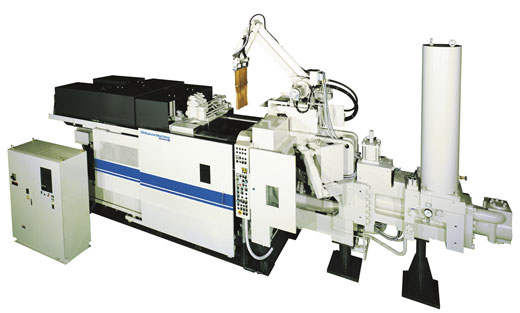

Photo: DC800J-MS
Specification item Unit DC800J-SX DC800J-MS DC800J-MH
Die locking force kN (ton) 8000 (816) 8000 (816) 8000 (816)
Injection speed m/sec 0.1-7.0 0.1-6.5 0.05-10.0
Tie-bar spacing (H*W) mm 930*930 930*930 930*930
Die height mm 950-400 950-400 950-400
Die stroke mm 760 760 760
TOSCAST No Standard Standard
Servo Control Injection No Standard Standard
CAST EYE Standard No No
