DC-R Series

R series machines are equipped with super-high-speed hydraulic servo injection and electrical die locking system. The standard model is 70G, while the high-grade model achieves an acceleration performance of 100G. We meet the needs with a wide variety of variations, including a combination of injection and die locking system and multi injection position option. In addition, all models are equipped with a new control device (TOSCAST-888) as standard, and we can strengthen traceability systems such as expanding quality control items using IoT, as well as dealing with remote maintenance and preventive maintenance.

※ R-* is equipped with Hydraulic die locking system, and R-E* is with Electrical die locking system.

DC350J-MS

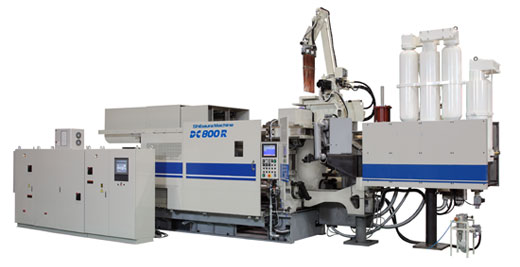

DC800R-EH
Specification item Unit DC250R-M/EM DC250R-H/EH
Die-locking force kN(ton) 2500(255) 2500(255)
Injection speed m/sec 0.03~8.0 0.03~13.0
Distance between Tie-bars (V × H) mm 580×580 580×580
Die height mm 600~300 600~300
Die stroke mm 360 360
Required floor space mm 5829×1830 5829×1830
Machine height mm 2781 2781
Machine mass ton M:9.7
EM:10.1
H:9.7
EH:10.1
Specification item Unit DC350R-M/EM DC350R-H/EH
Die-locking force kN(ton) 3500(357) 3500(357)
Injection speed m/sec 0.03~6.5 0.03~11.0
Distance between Tie-bars (V × H) mm 650×650 650×650
Die height mm 700~300 700~300
Die stroke mm 420 420
Required floor space mm 6189×2197 6189×2197
Machine height mm 2931 2931
Machine mass ton M:12.5
EM:12.9
H:12.5
EH:12.9
Specification item Unit DC500R-M/EM DC500R-H/EH
Die-locking force kN(ton) 5000(510) 5000(510)
Injection speed m/sec 0.03~8.0 0.03~12.0
Distance between Tie-bars (V × H) mm 750×750 750×750
Die height mm 850~350 850~350
Die stroke mm 550 550
Required floor space mm 6069×2295 6069×2295
Machine height mm 3600 3600
Machine mass ton M:21.5      EM:21.8 H:21.5
EH:21.8
Specification item Unit DC650R-M/EM DC650R-H/EH
Die-locking force kN(ton) 6500(663) 6500(663)
Injection speed m/sec 0.03~7.0 0.03~10.5
Distance between Tie-bars (V × H) mm 850×850 850×850
Die height mm 900~350 900~350
Die stroke mm 660 660
Required floor space mm 6609×2470 6609×2470
Machine height mm 3760 3760
Machine mass ton M:29.5      EM:29.8 H:29.5
EH:29.8
Specification item Unit DC800R-M/EM DC800R-H/EH
Die-locking force kN(ton) 8000(816) 8000(816)
Injection speed m/sec 0.03~6.5 0.03~10.0
Distance between Tie-bars (V × H) mm 930×930 930×930
Die height mm 950~400 950~400
Die stroke mm 760 760
Required floor space mm 8977×2585 8977×2585
Machine height mm 3845 3845
Machine mass ton M:39
EM:39.3
H:39
EH:39.3
