High-productivity, low environmental impact die casting machine
DC-R2 SERIES
DC-R2 SERIES

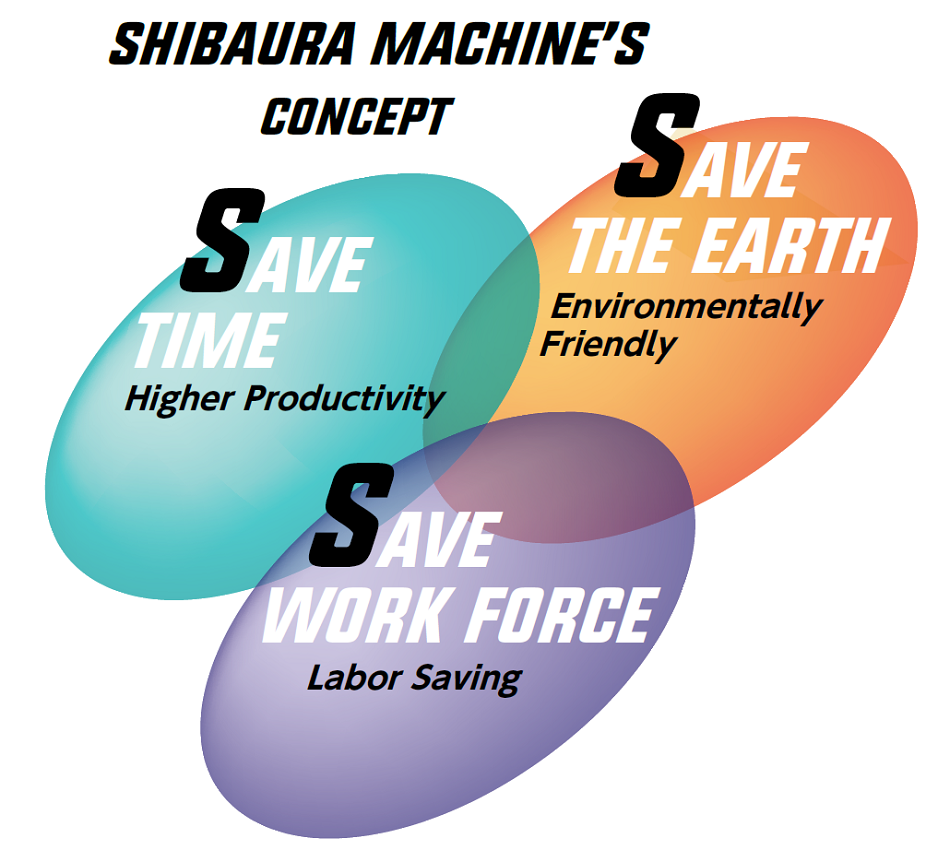

In order to realize the “New 3S” with high-productivity and low environmental impact die-casting machines, we have developed the R series die-casting machines,the world's first die-casting machines equipped with an electric clamping mechanism as standard equipment.
This time, the R series has been further evolved and minor-changed to the R2 series.
















Line-up
Based on the “New 3S” concept, the R2 series features many improvements that
combine high productivity with reduced environmental impact, including improved workability.
The R2 series offers 250ton, 400ton, 500ton, 650ton, and 850ton die locking force lineups.
model | 射出構成 | 型締構成 | 制御装置 | ポイント |
---|---|---|---|---|
DC*R2-EH | High grade servo injection |
Electric die locking |
TOSCAST-999 | Ultra-high performance (difficult casting, Mg) +Energy saving |
DC*R2-H | High grade servo injection |
hydraulic die locking |
TOSCAST-999 | Ultra-high performance (difficult casting, Mg) |
DC*R2-EM | Standard grade servo injection |
Electric die locking |
TOSCAST-999 | Ultra-high performance (difficult casting)+Energy saving |
DC*R2-M | Standard grade servo injection |
hydraulic die locking |
TOSCAST-999 | Ultra-high performance (difficult casting) |














SAVE TIME
Die locking force UP
The conventional DC350R/DC800R series has been upgraded to DC400R2/DC850R2 in terms of die locking force clamping force.

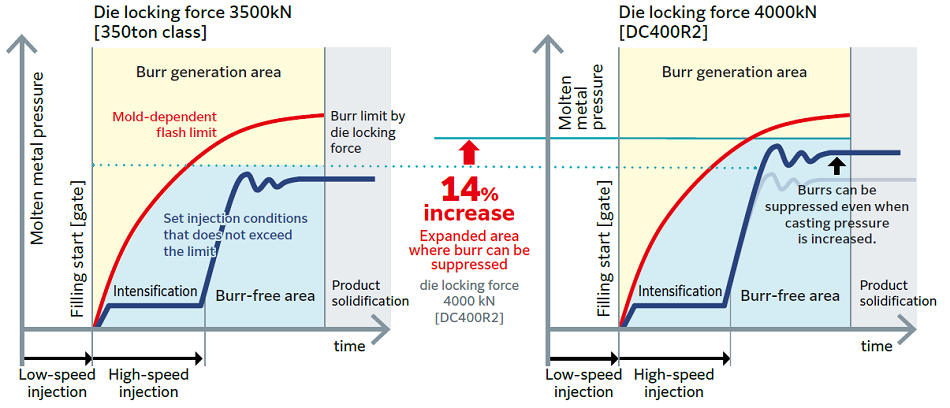

DC350R is now 400R2 with 14% higher die locking force.
DC800R is now DC850R2 with 6% higher die locking force.
Expect quality improvement in a wide variety of products, both thick and thin-walled
The die mounting relationship between DC350R and DC400R2 is the same.
Existing molds can take advantage of difference in die locking force
Existing molds can take advantage of difference in die locking force.

Lightweight pistons due to increased speed and pressure100G/10m/s
Highly controlled speed to suppress burrs. Reduces defective products.
The injection piston is made lighter and more controllable by using a two-cylinder system: a speed cylinder for speed control and an intensification cylinder for intensification control.
Injection Structure Features
- Conventional 2-cylinder system
- Meter-out speed control
- High flow rate, high response servo-hydraulic valve
- Meter-in intensification control
- V-P switching control
Reduced pressurizing time up to 9.6msec

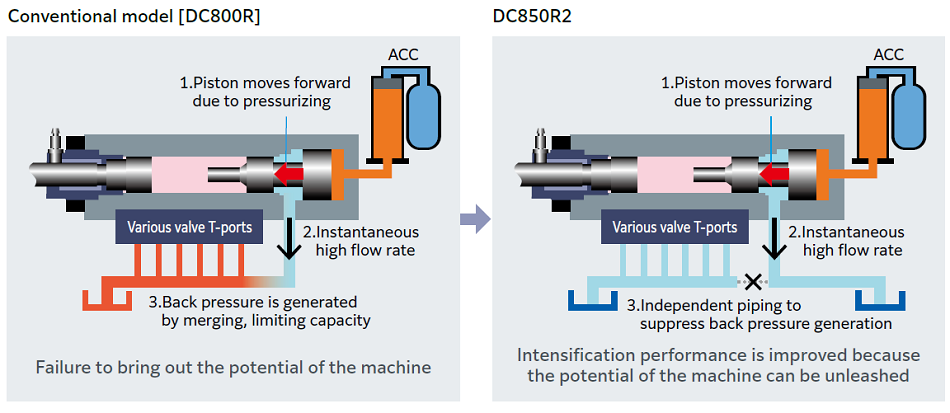

Fluctuations in molten metal supply volume are controlled by a new intensification start control.
Shortens pressurizing time, improves safety, and stabilizes internal quality.

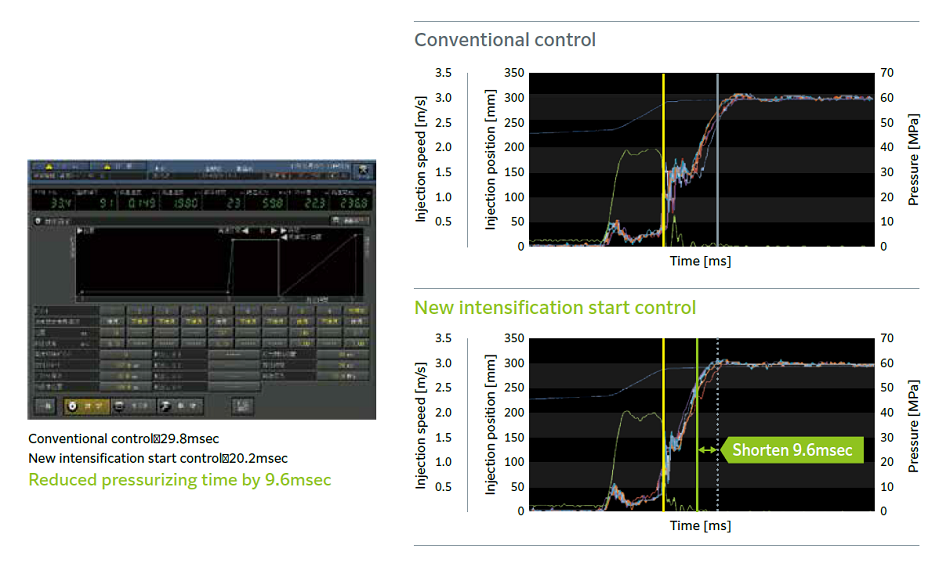

Reduces pressurizing time up to 9.6 msec with new intensification start control.
Speed control is added to the conventional position start control, and the pressurizing start timing changes according to the change in molten metal supply. The quality is stable even when used at high speeds or deceleration.

Improved pressurizing performance (reduced pressure boosting time)

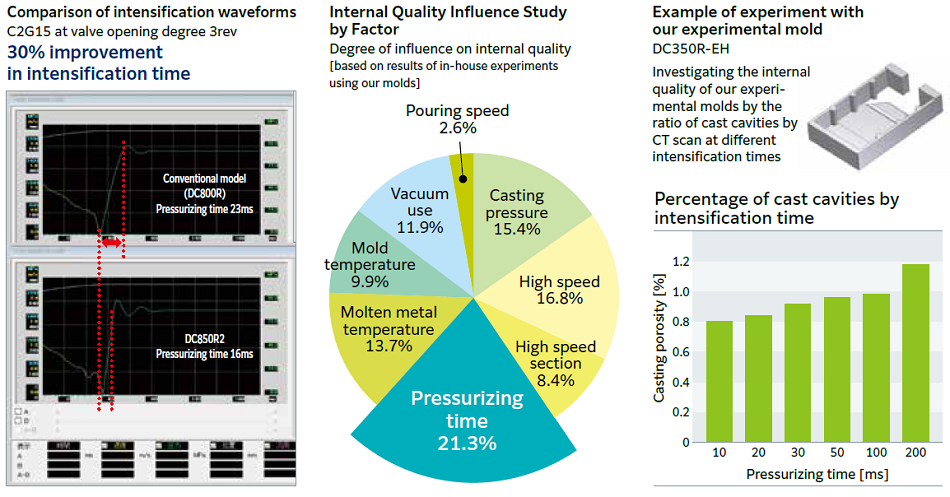

Short-time intensification improves internal quality

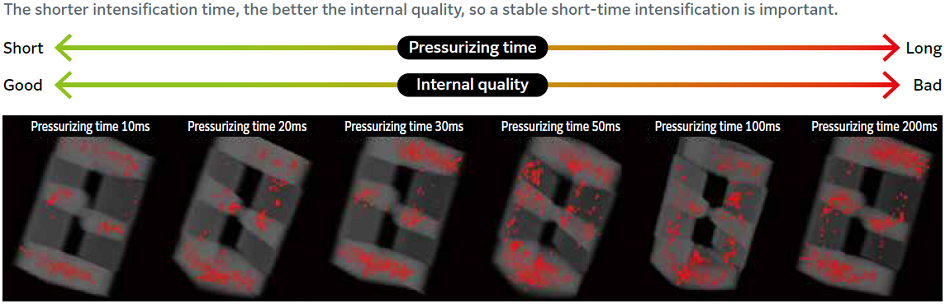

The shorter intensification time, the better the internal quality, so a stable short-time intensification is important.


SAVE THE EARTH
41% reduction of power consumption
Servo-hydraulic source significantly reduces power consumption

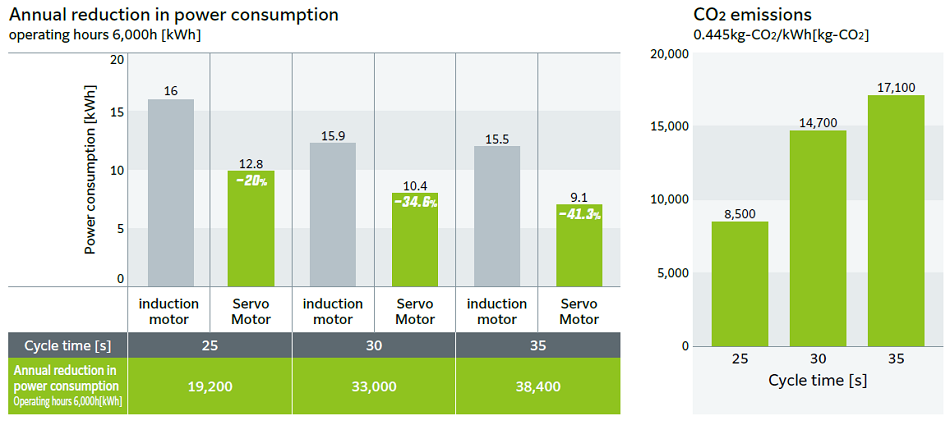

Servo-hydraulic source reduces power consumption by up to 41.3% compared to conventional hydraulic sources (for R2-E 400ton).


CO2 emissions reduced by 20.8%
Electric die locking unit reduces CO2 emissions

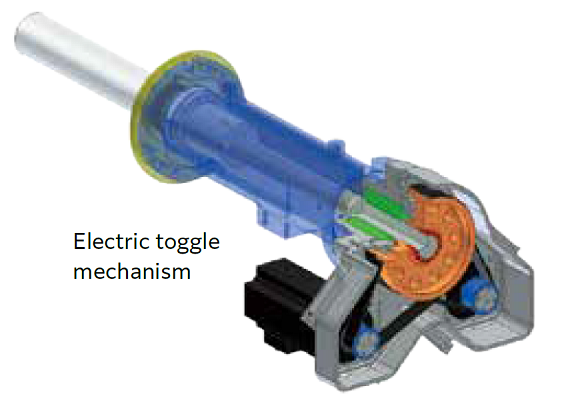

Electric toggle machines reduce CO2 emissions by up to 20.8% compared to hydraulic toggle machines.

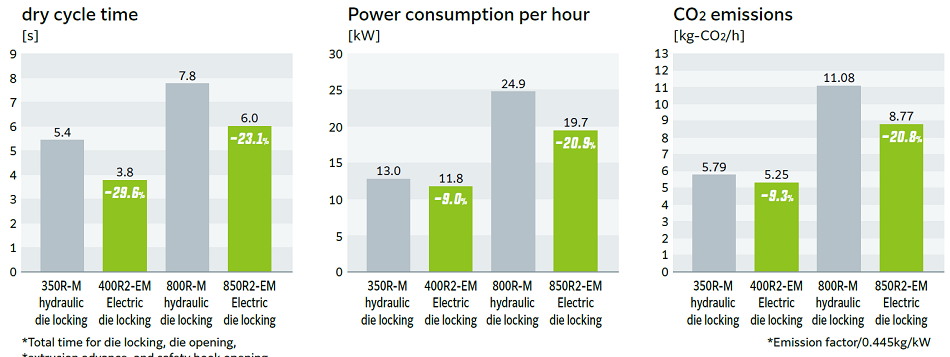

DC850R2-EM compared to DC800R-M
Comparison of electric and hydraulic toggle machines
●CO2 emissions are expected 9.3% lower for DC400R2-EM than for DC350R-M
●CO2 emissions are expected 20.8% lower for DC850R2-EM than for DC800R-M


SAVE WORKFORCE
Die Casting Machine Total Control System TOSCAST-999
TOSCAST-999 is a controller for large size die casting machines (R2 series).
Improved operator visibility and operability with larger screen.
For more details, please refer to the above link.
Die Casting Production Monitoring System dPAQET/dPAQET2
dPAQET/dPAQET2 is software specialized for data collection from die casting machines.
It can be installed and used on ordinary computers, and it enables quick and inexpensive centralized management of information at foundry sites using LAN.
For more details, please refer to the above link.
