Die Casting Machine Total Control System
TOSCAST-999 / 888

toscast999-1

Dual screen | Full screen | Operation | Document display

Pursued usability by adopting both a large touch panel and functionality.

TOSCAST-999 is a controller for large size die casting machines (R series).
Improved operator visibility and operability with larger screen.
The controller supports multiple languages. This enhanced user management function improves the efficiency of global production management.
In addition, the remote management system “dPAQET (optional)” helps maintenance and production efficiency.

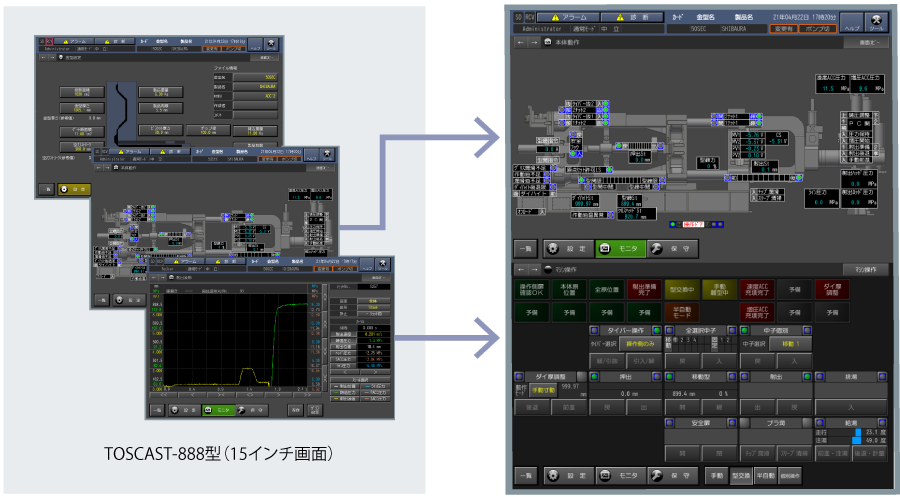

Dual screen

Enable to change from single display to double display
The large 19-inch vertical screen improves visibility, operability, and setting flexibility,
Two screens of your choice can be displayed on the top and bottom of the screen.
The new system responds to customer needs such as “production control while looking at the monitor” and “changing conditions while checking the monitor.

19inchi

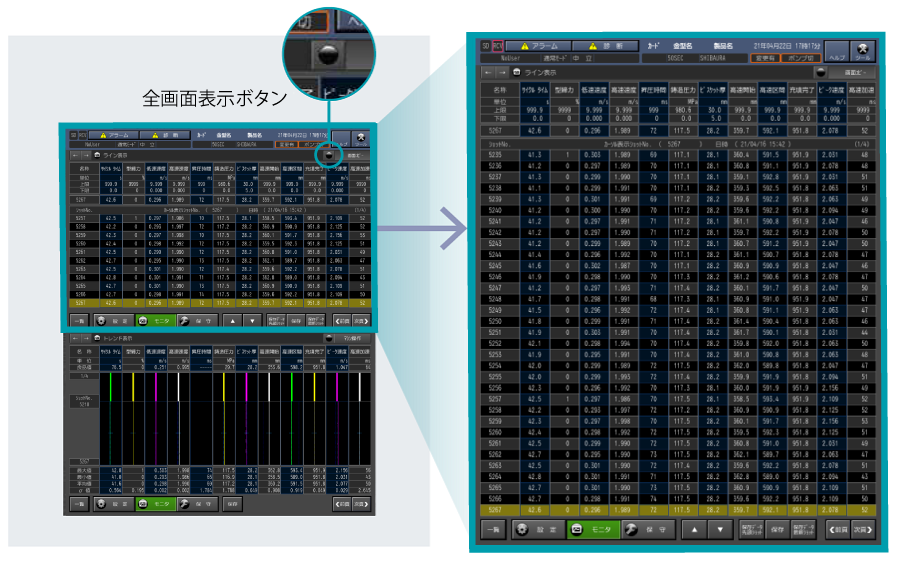

Full screen

Immediate full-screen display by simply pressing the full-screen button
With Full Screen button, line data, trend data, documents, etc.
can be displayed on the 19-inch sigle vertical screen.
Compared to conventional models, several data can be displayed and checked at once, which improved visibility further.

toscast999-2

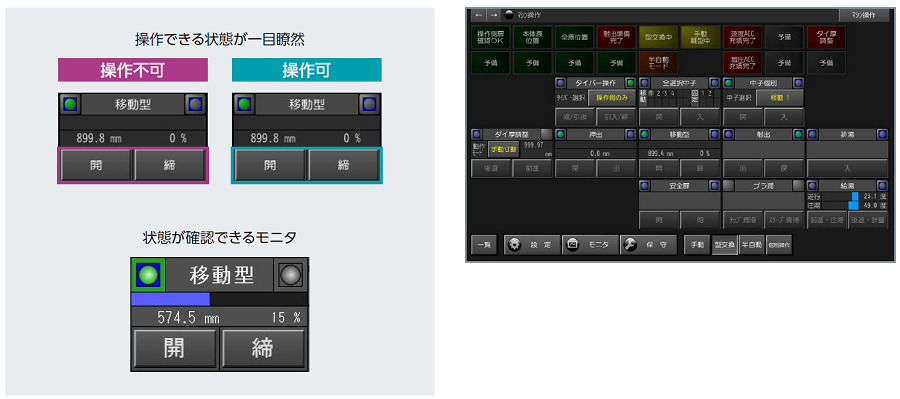

Operation

Operation, production, and management can be done on the TOSCAST screen
Added machine operation function to TOSCAST, which equipped condition setting, monitoring, quality control, production control, and error detection functions.
This allows operation, production, and management to be performed all at once on the TOSCAST screen.

toscast999-3

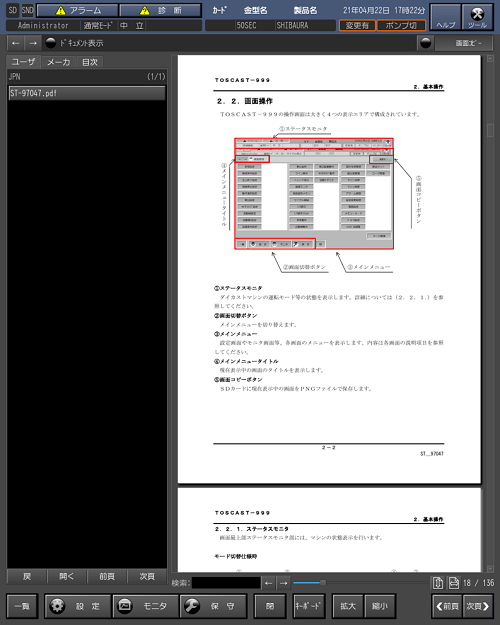

Document display

Instruction manuals, images, and PDFs can be displayed
Instruction manuals can be viewed in TOSCAST. Also images and PDF files can be stored and displayed.
(procedure manuals, operation manuals, phone books, consumables lists, etc.)

toscast999-4
