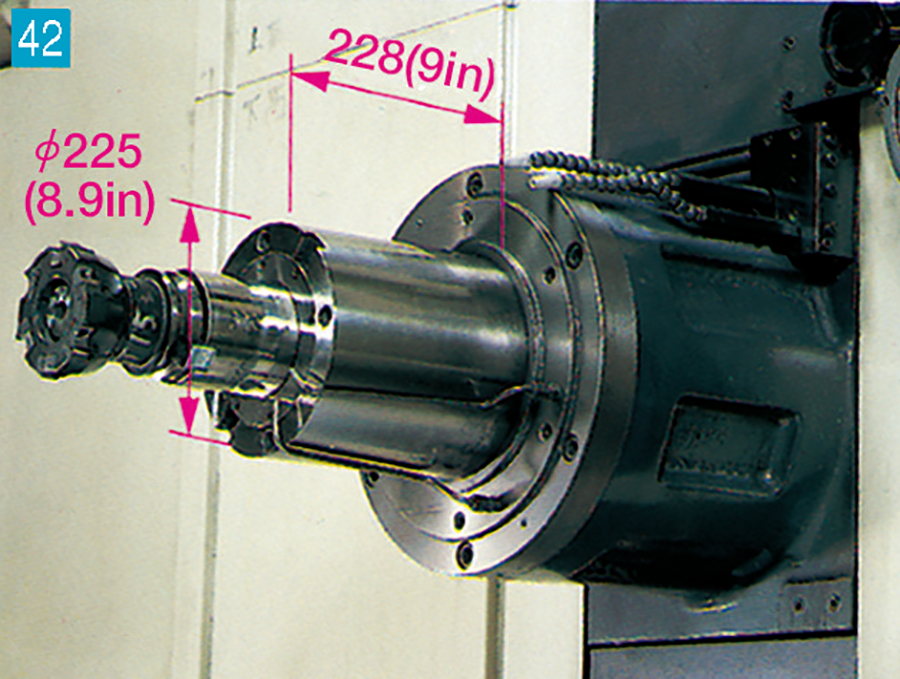

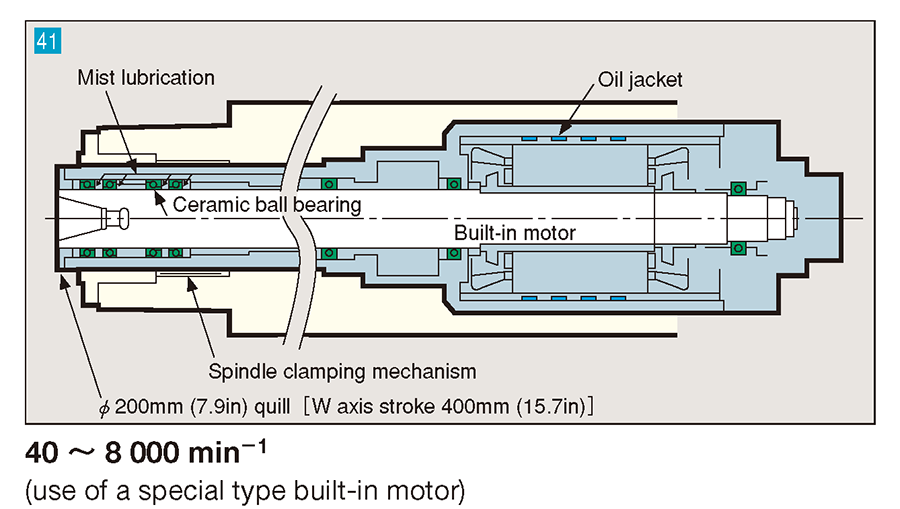

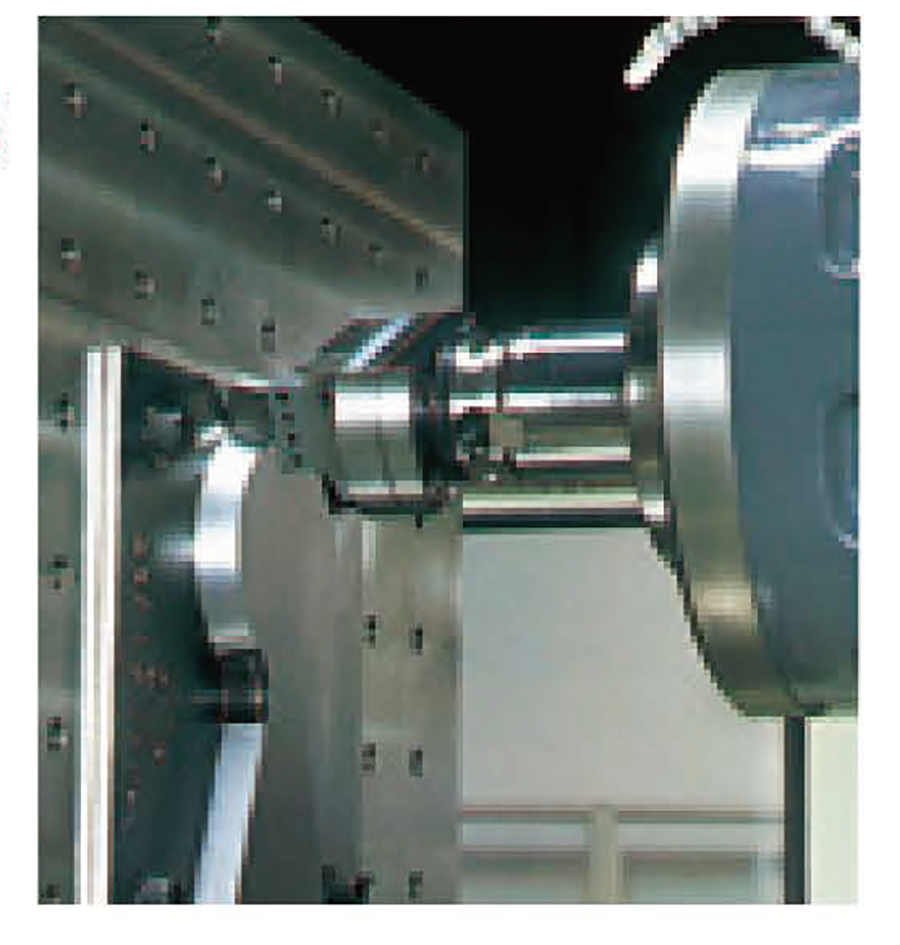

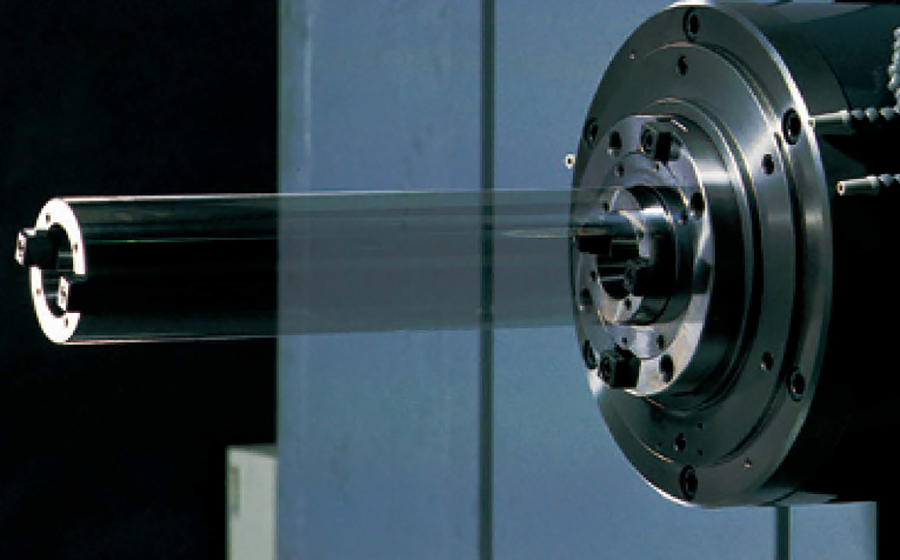

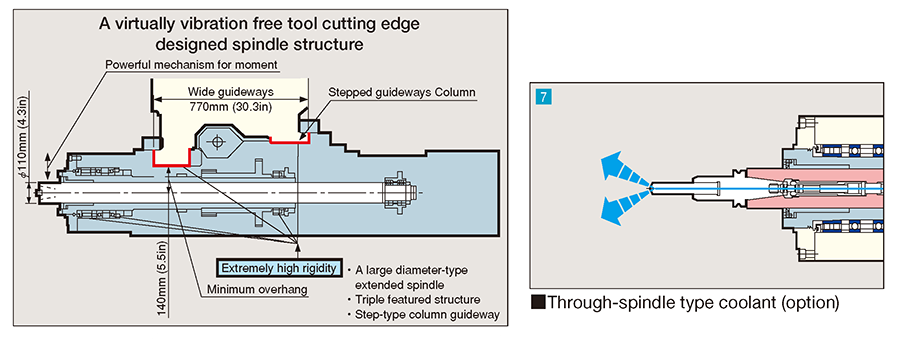

A newly developed spindle for optimum high speeds, assurance of high accuracy and heavy duty machining

Main features

Accuracy movements and reliable movements

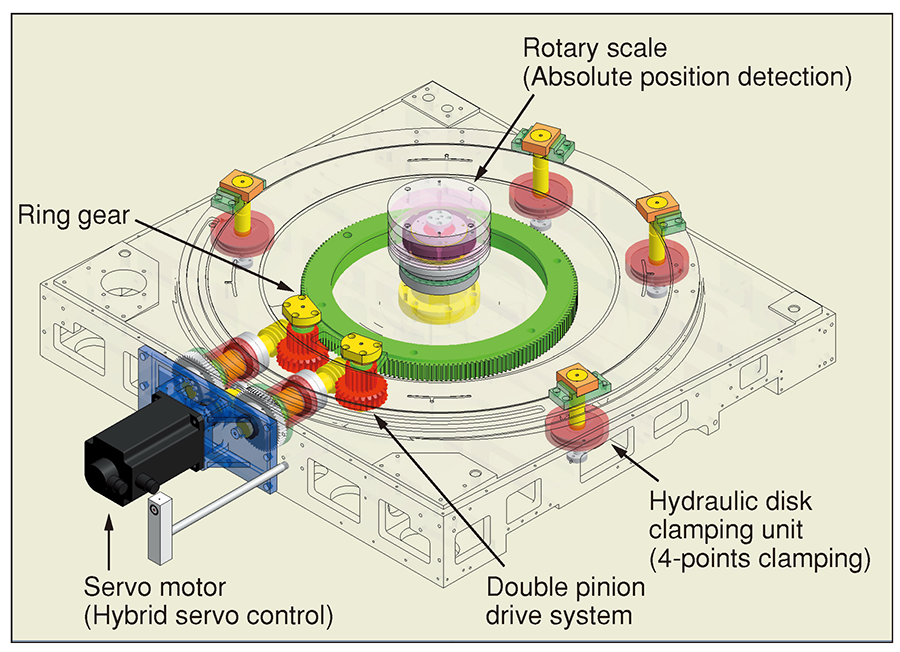

A closed-loop control system for the X, Y, Z and B axes with standard 1μm linear scales and rotary scale provides

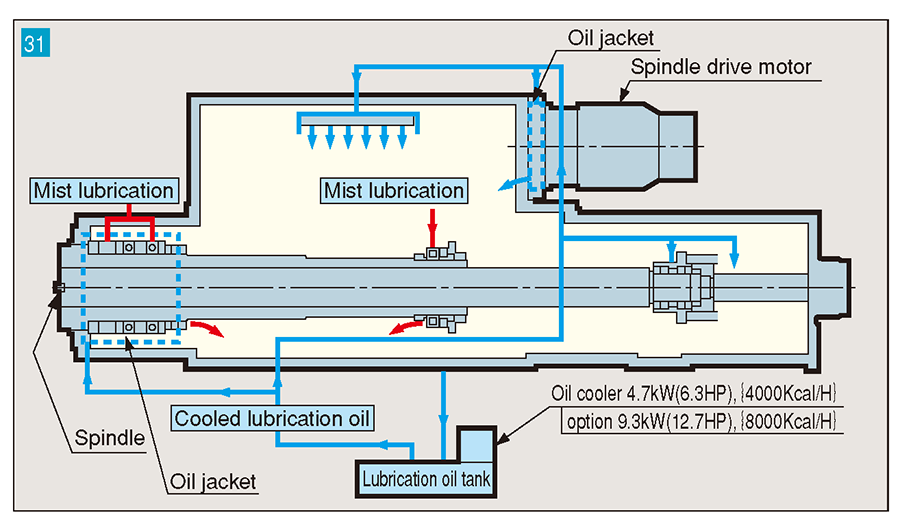

Minimal thermal displacement of spindle head

Use of an oil jacket and constant lubrication air mist volume for stabilized high accuracy cutting operations. Spindle bearings constant mist lubrication

Easy operations

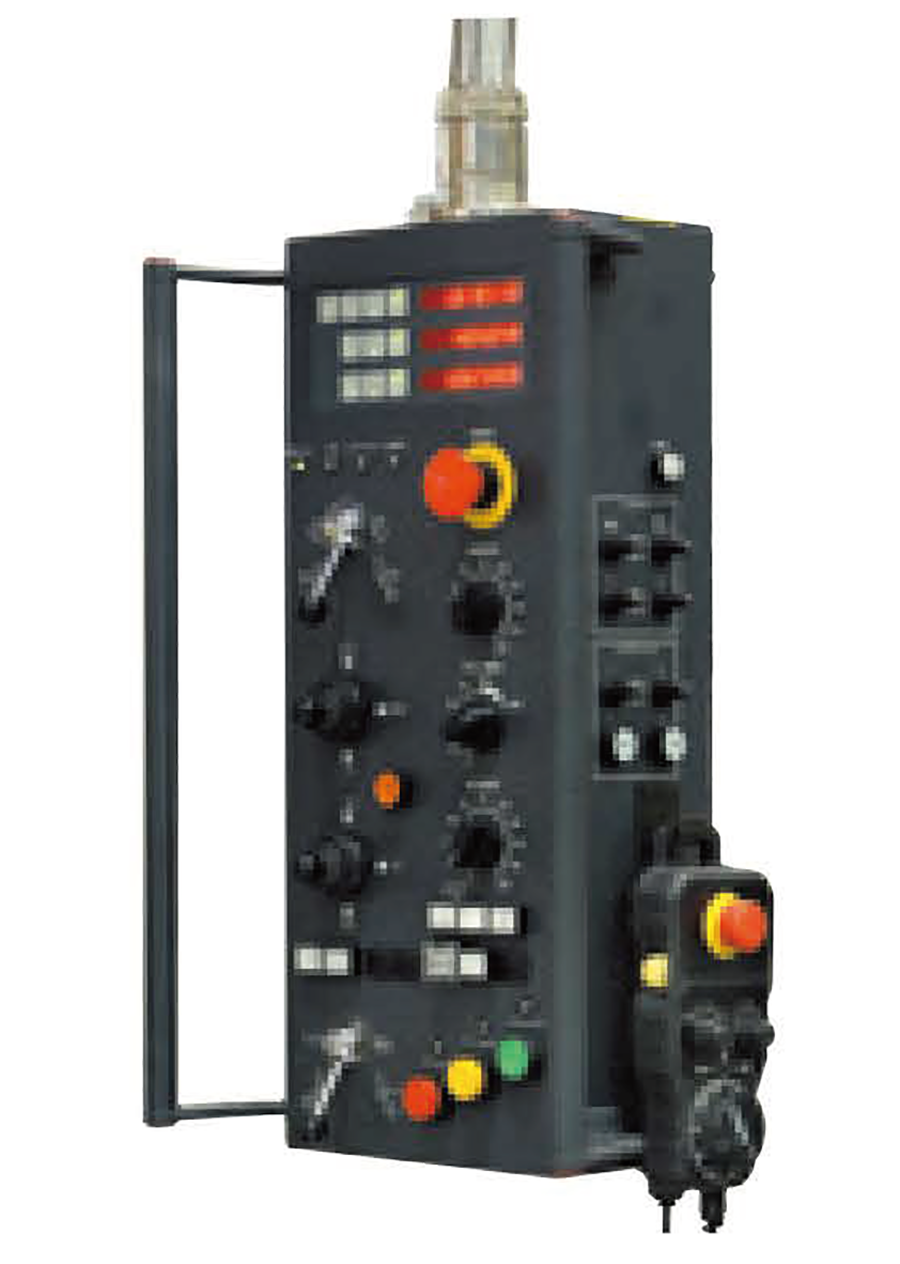

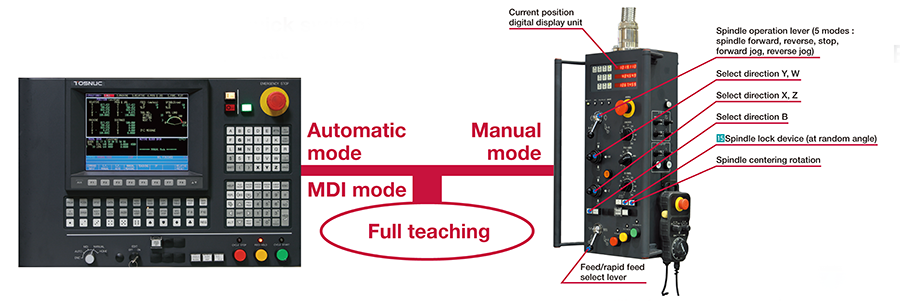

Manual operations relating to machine movements are separate from the NC operation unit and centrally arranged on the pendant operation box. Manual machining operations can be performed smoothly

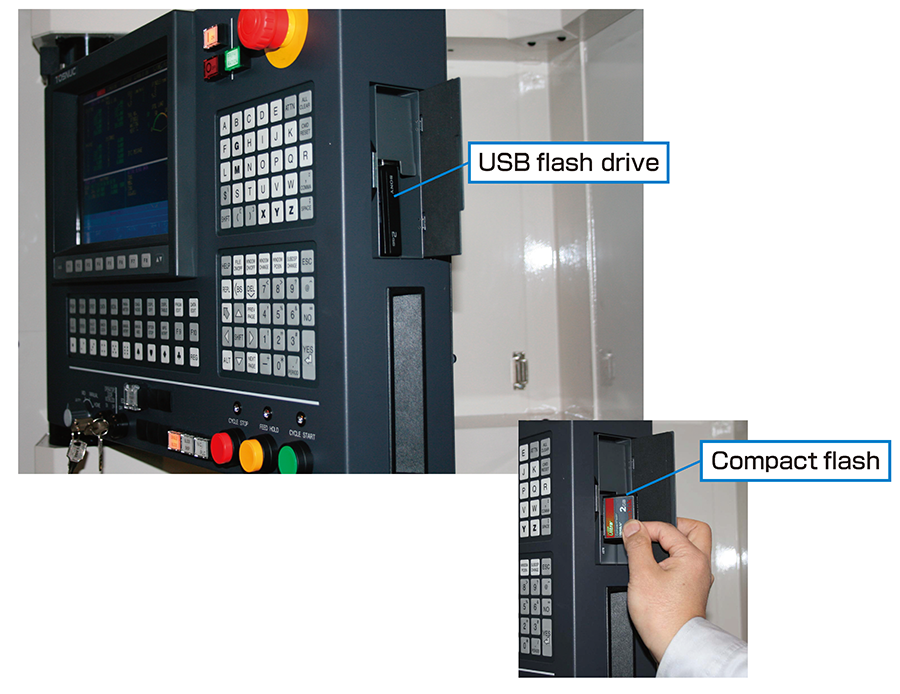

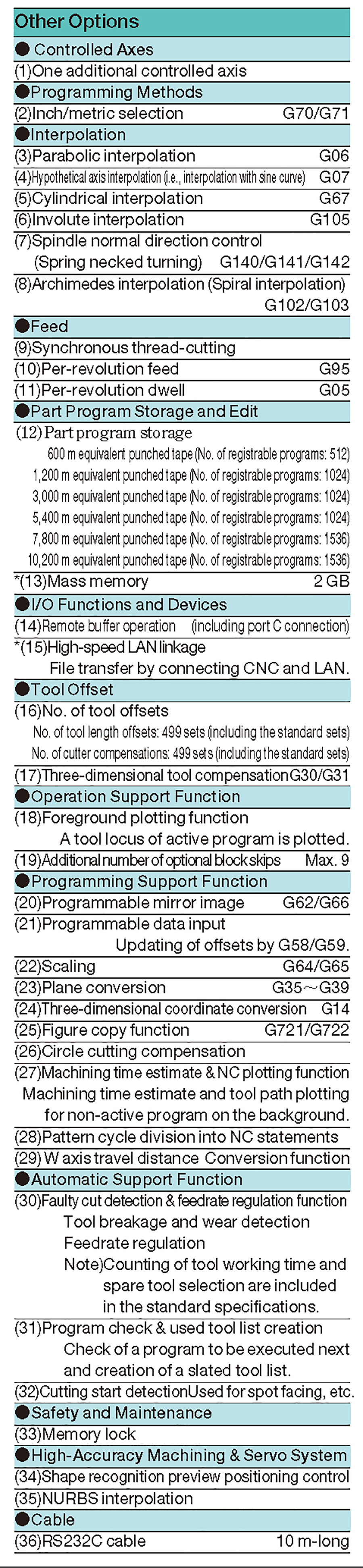

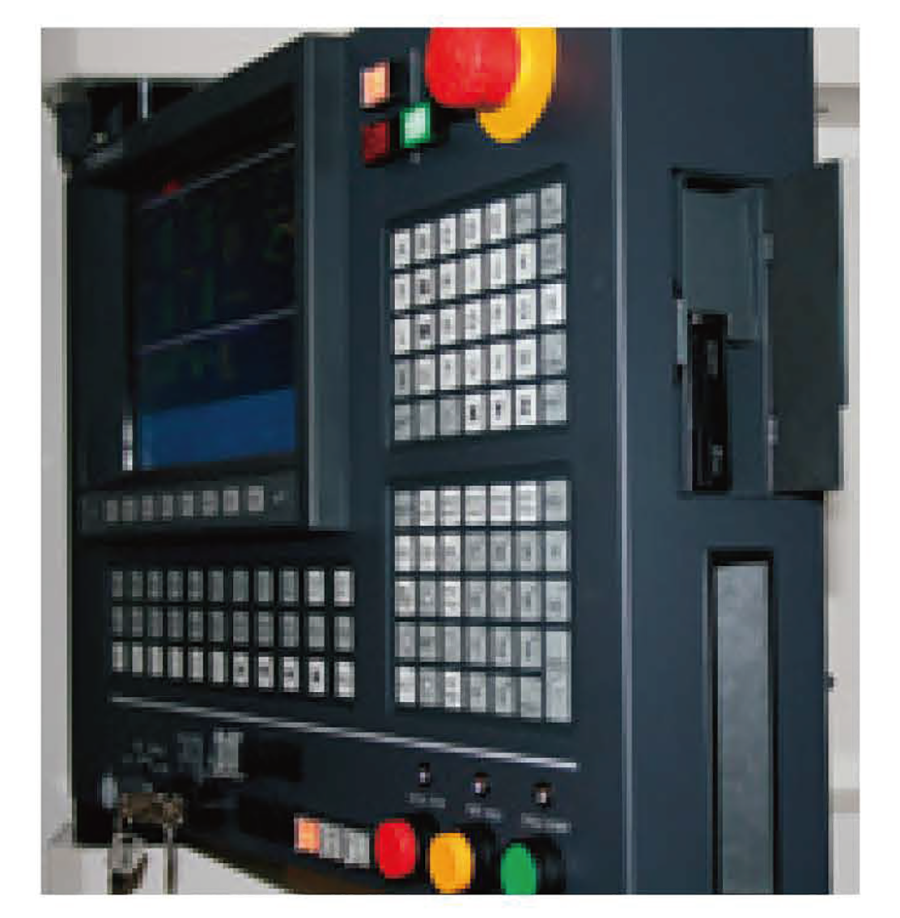

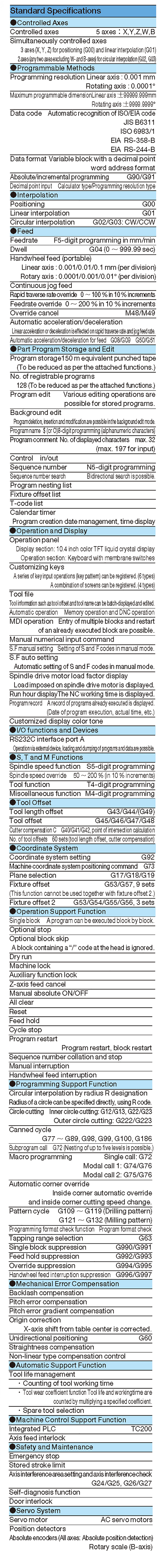

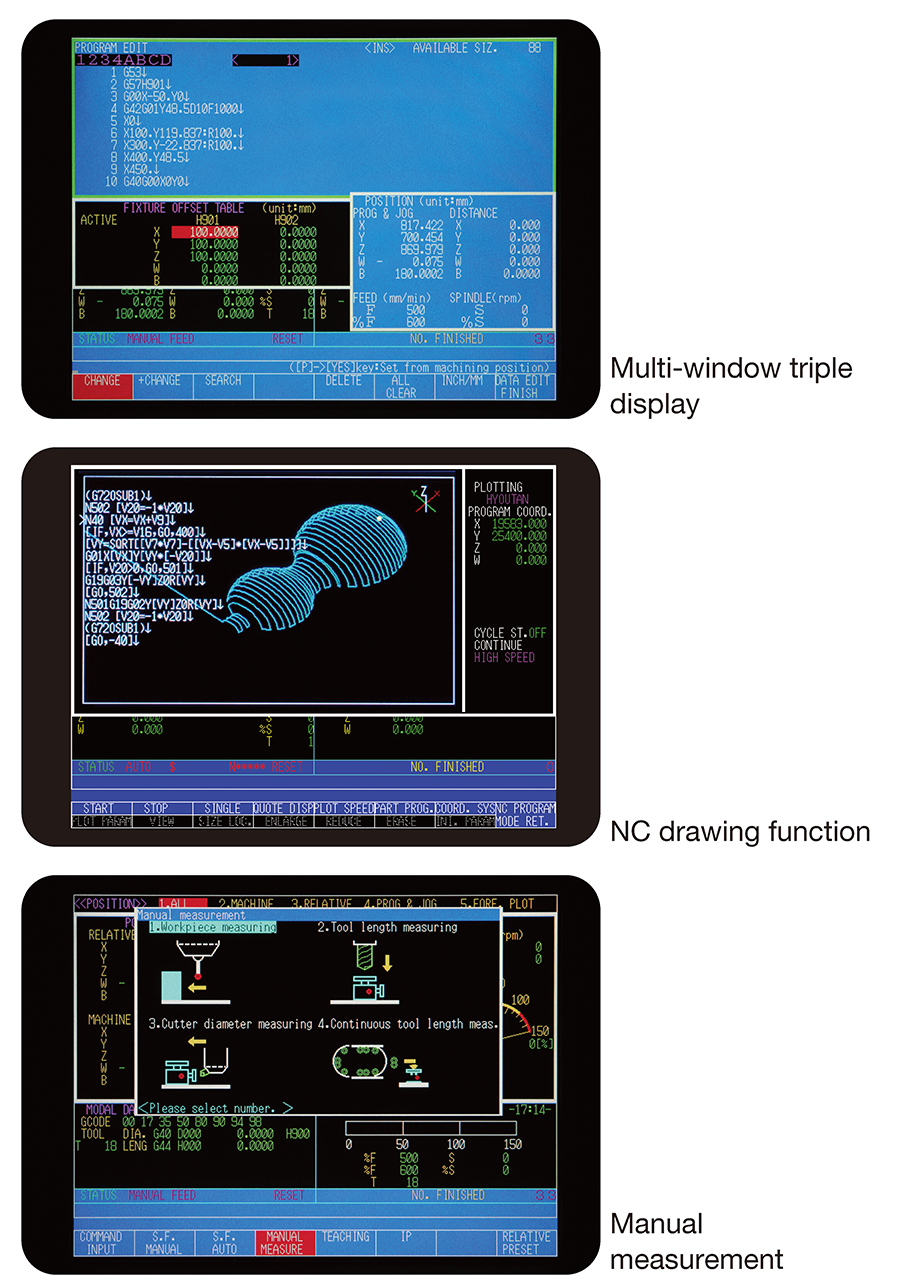

CNC system TOSNUC 999

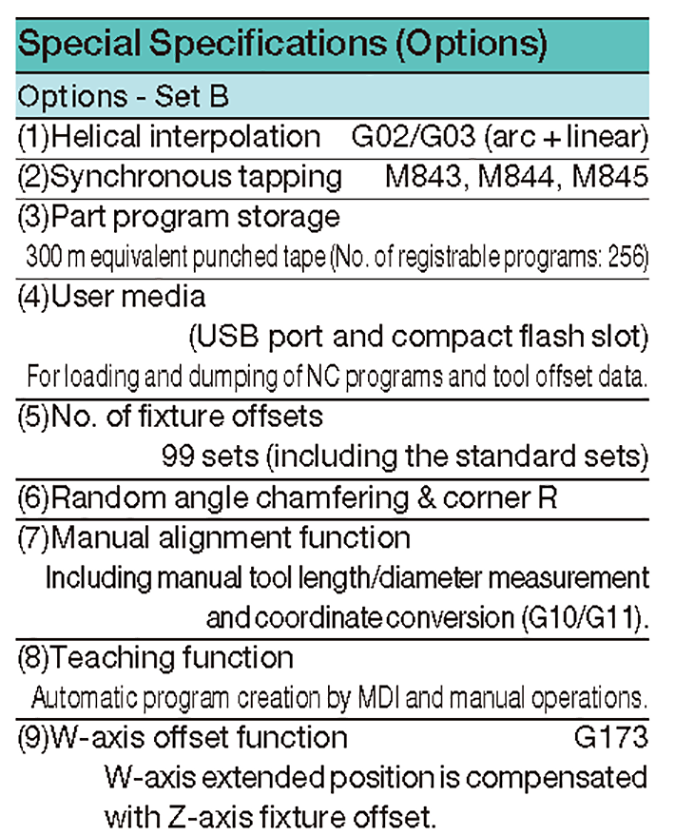

High-Performance CNC controller

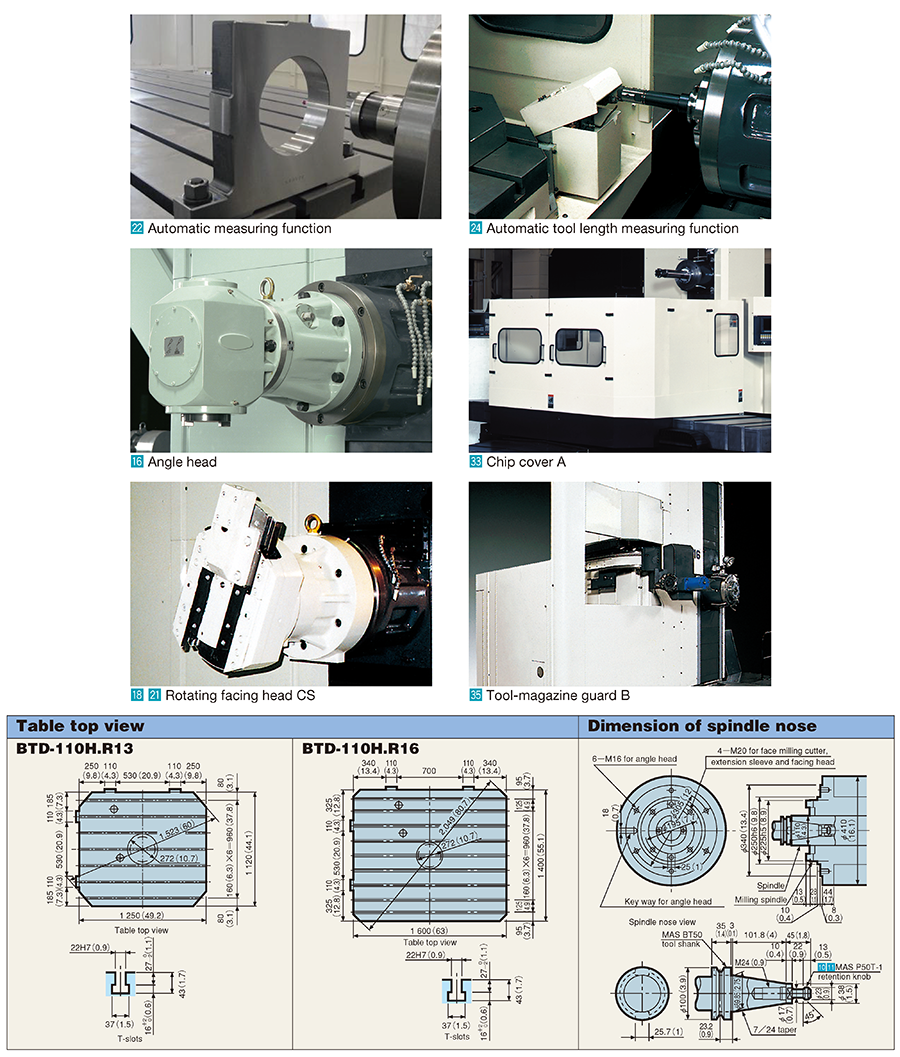

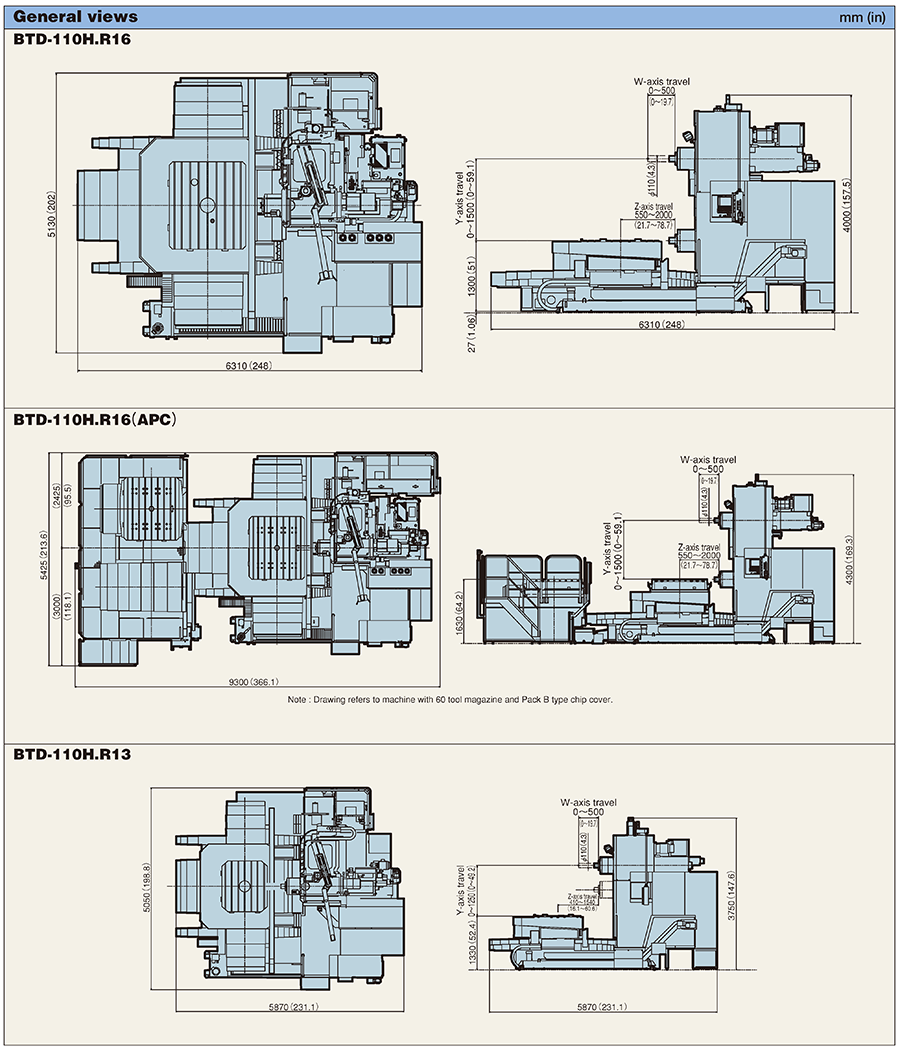

General view and Machine Layout

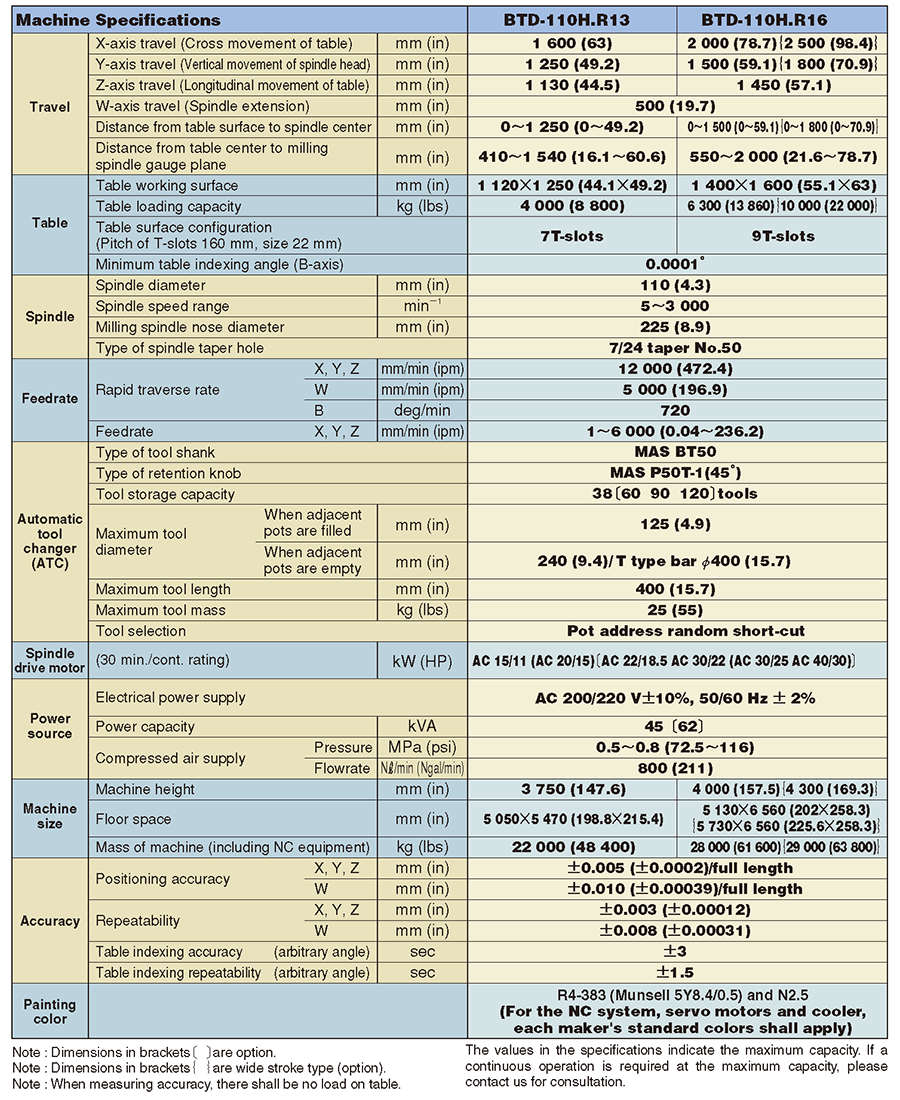

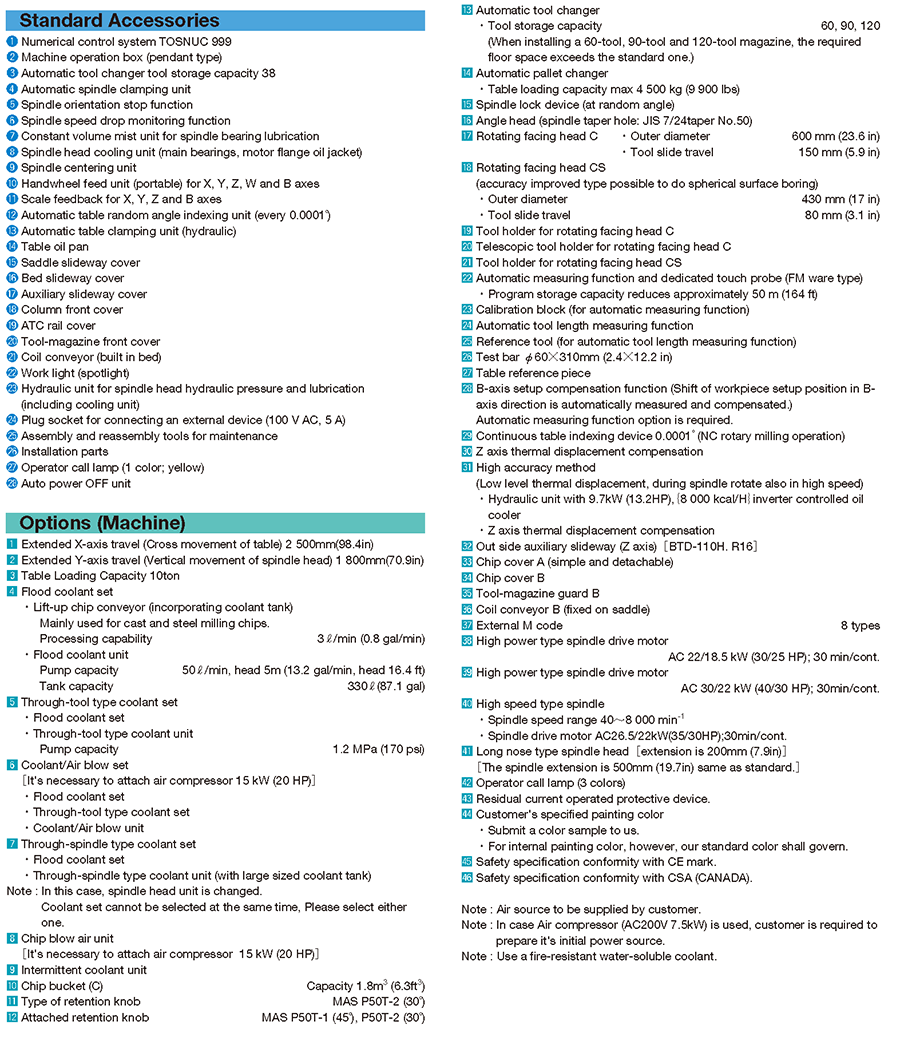

Machine specifications
