BSF-150C

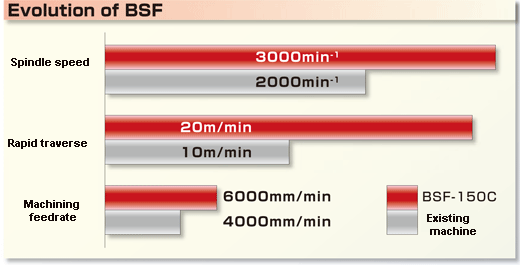

This new model has been re-engineered in regard to performance and design to respond to the market's need for higher speed and accuracy
Features
High efficient productivity has been achieved.
High efficient productivity has been achieved.

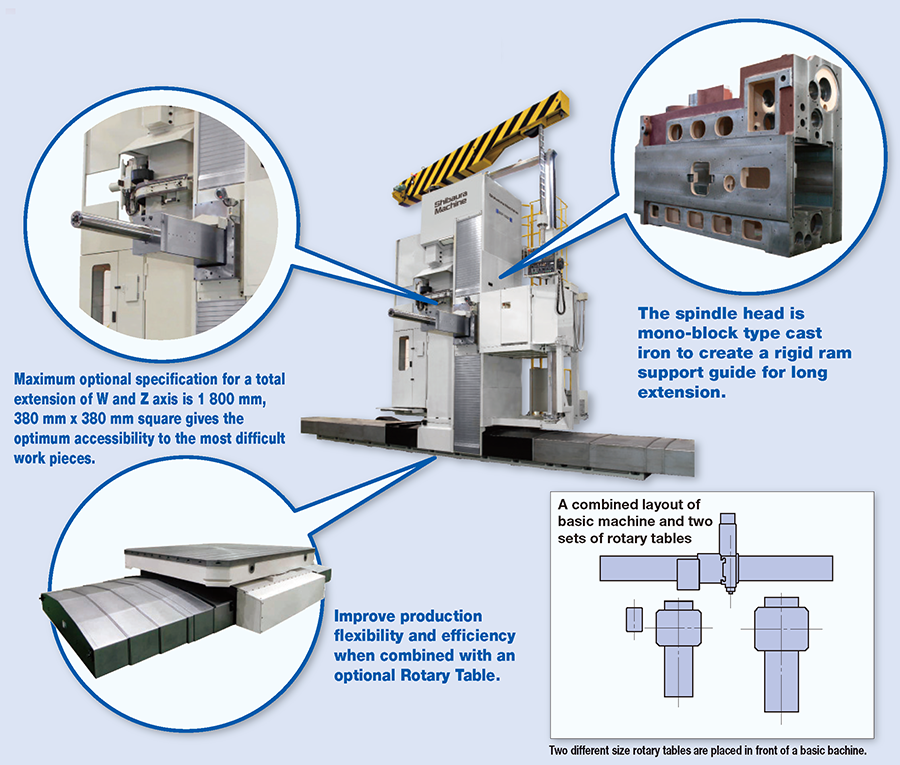

Good accessibility

A total extension of W and Z axis is 1 800 mm in case of a special option, 380 mm x 380 mm square ram dimension gives optimum accessibility on a deep workpieces
Features of BSF-150C

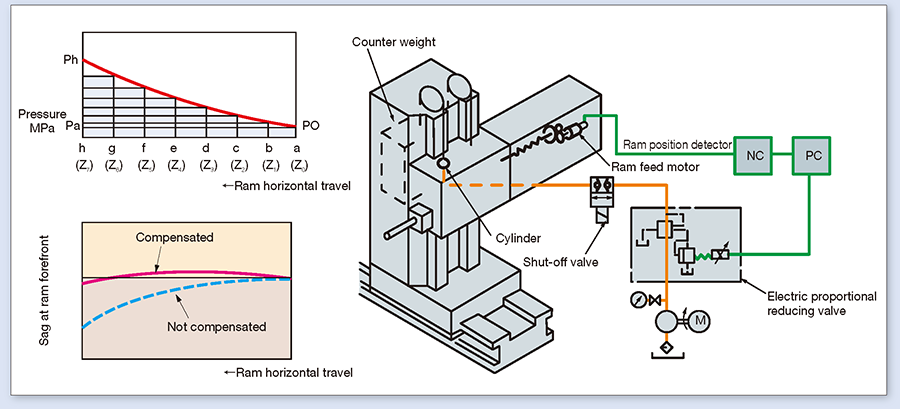

Spindle head gravity center compensating device
The Spindle head-center of gravity compensating device counteracts the primary cause of ram sag which occurs when changing center of gravity as the ram moves out. Tension on two balancing cables, front and rear, are automatically adjusted based on ram position to achieve optimum straightness when extending the ram.

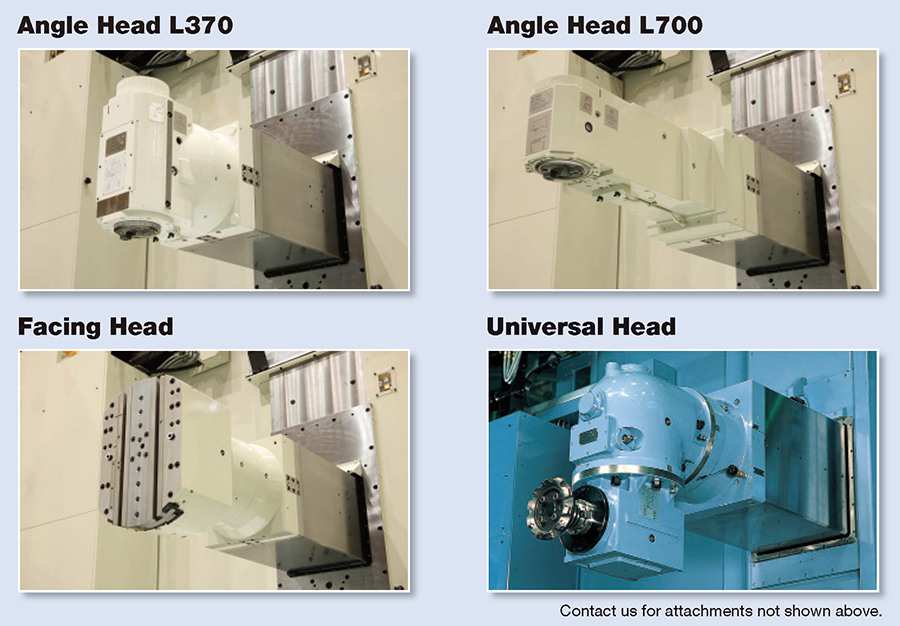

Extensive Attachments (Optional accessories)
Other attachments can be supplied based on customer requirements.

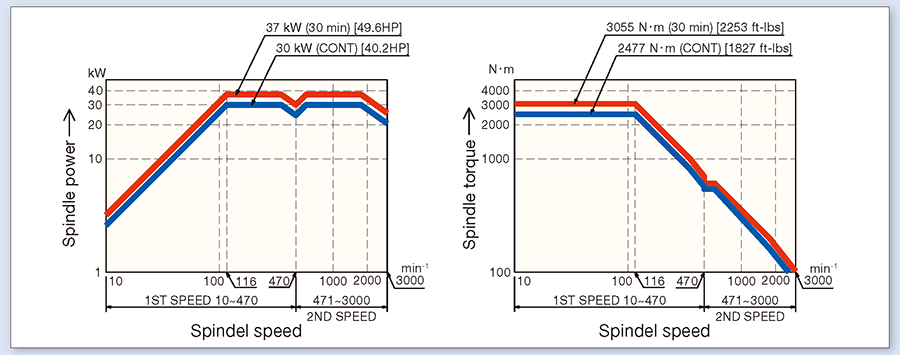

Spindle capacity diagram

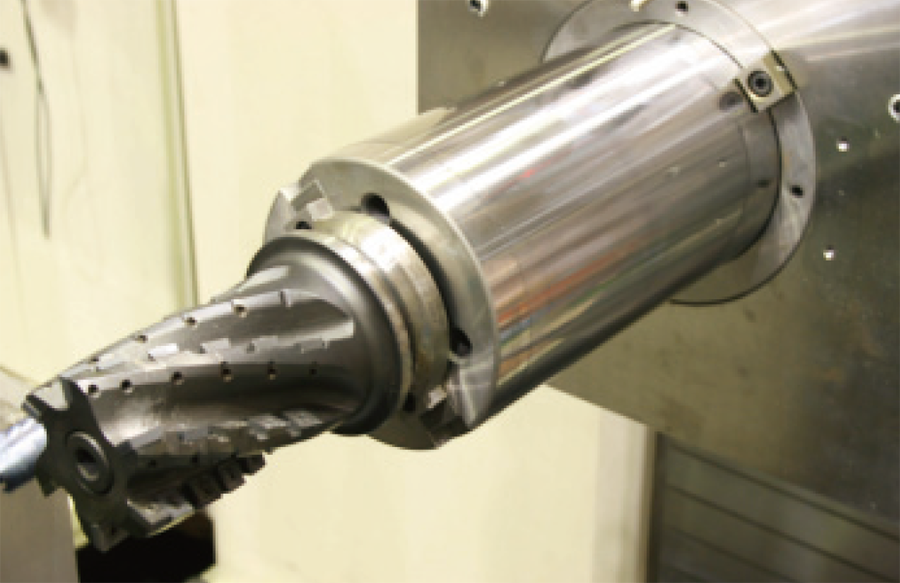

Machining data example

Machine Layout

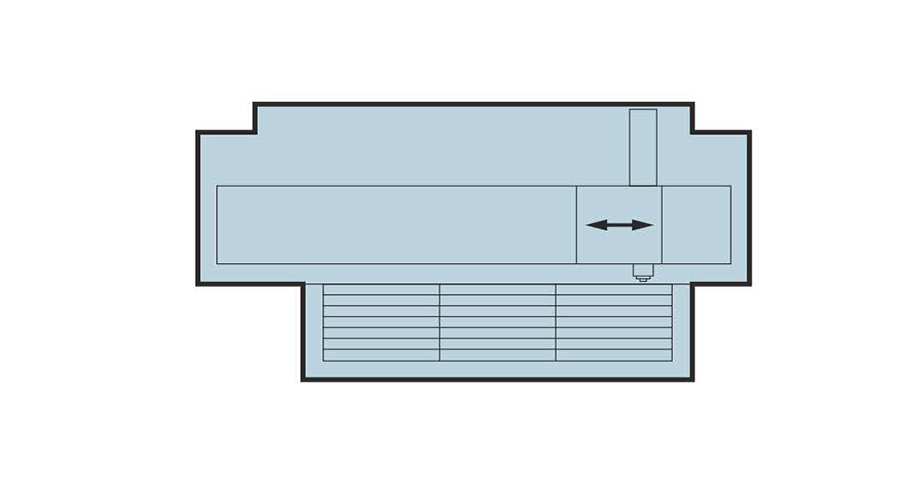

Versitile Layout with Floorplates
Floor plates provide minimum size and weight restrictions for work pieces and allow flexible work piece set-ups. The example sketch shows three floorplates arranged in lengthwise, in a single row along X-axis travel. Multiple floorplate arrangements are restricted only by available floor space and can be in crosswise or double row depending customers requirements.
Flexible Layout with Floorplates and Rotary Table

A Rotary Table provides great flexibility allowing machining on multiple face workpieces, boring on inverted face and high precision rotary milling and drastically improves productivity. Combined with floor plates, this specification provides flexibility to machine a wide variety of work pieces Multiple arrangements of this layout are available.

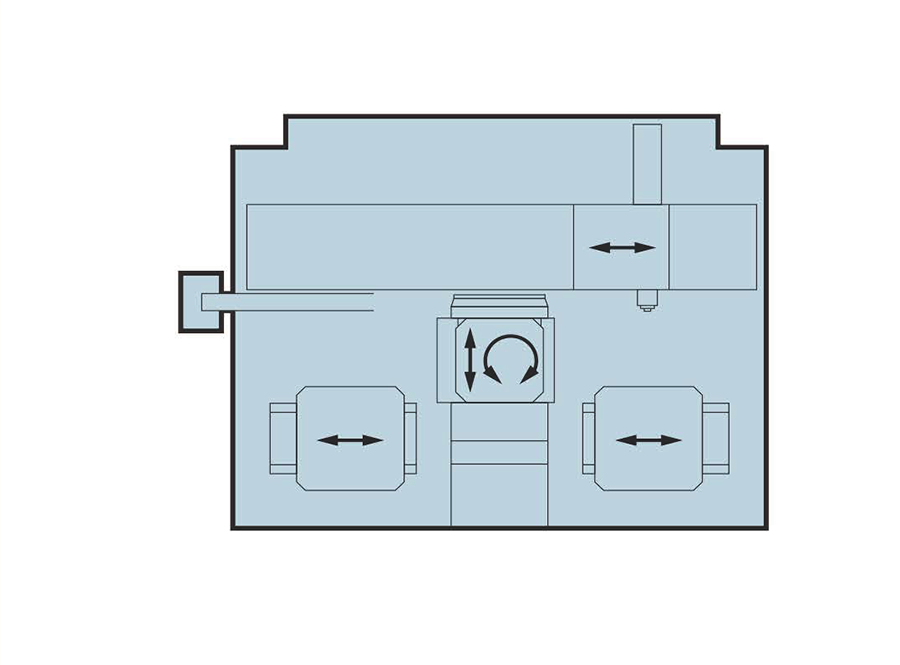

Unattended operation layout with Rotary Table equipped with pallet changer

A Rotary Table equipped with pallet changer enhance performance and productivity by allowing unattended operation 15 percent of production time for a workpiece is used for set-up on average. By utilizing the pallet changer, set-up for the next work piece can be completed while machining the current workpiece reducing machine downtime to a few minutes to complete a pallet change, greatly increasing machine efficiency and multiple work piece flexibility.

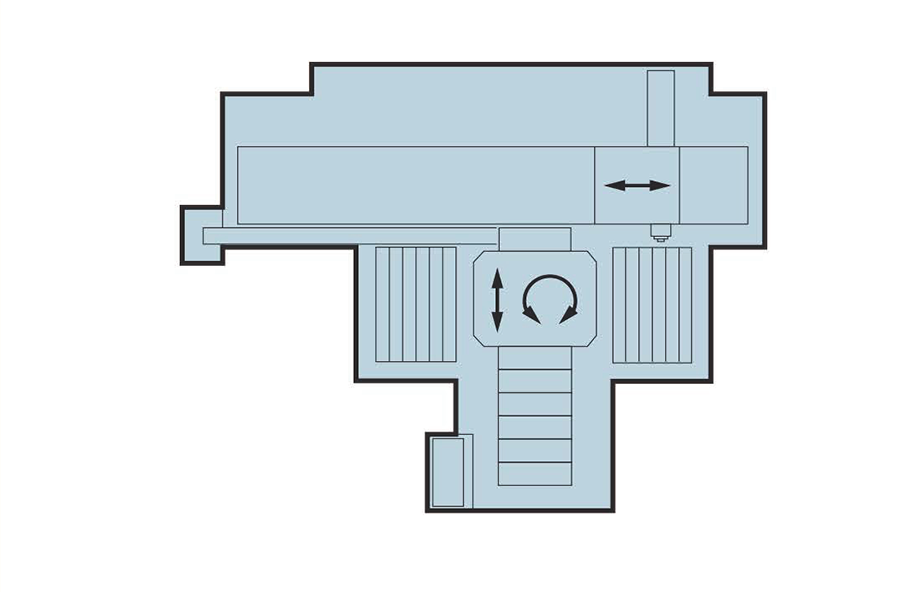

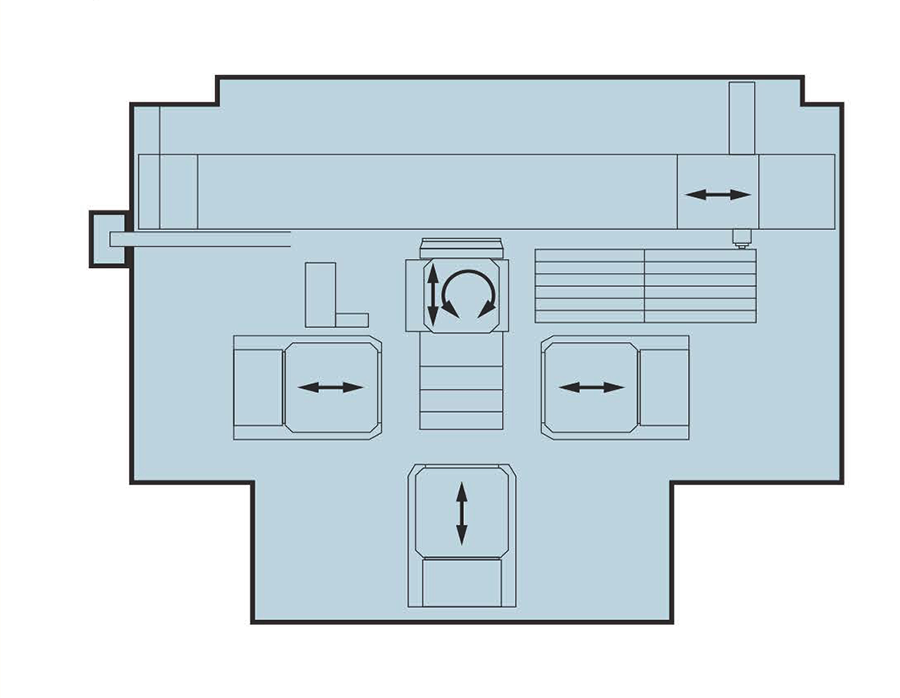

Labor saving layout with Floorplates, Rotary Table and pallet changer

The sketch shows two floor plates, rotary table with pallet changer. Combined with an attachment stocker, performance and productivity are drastically enhanced.

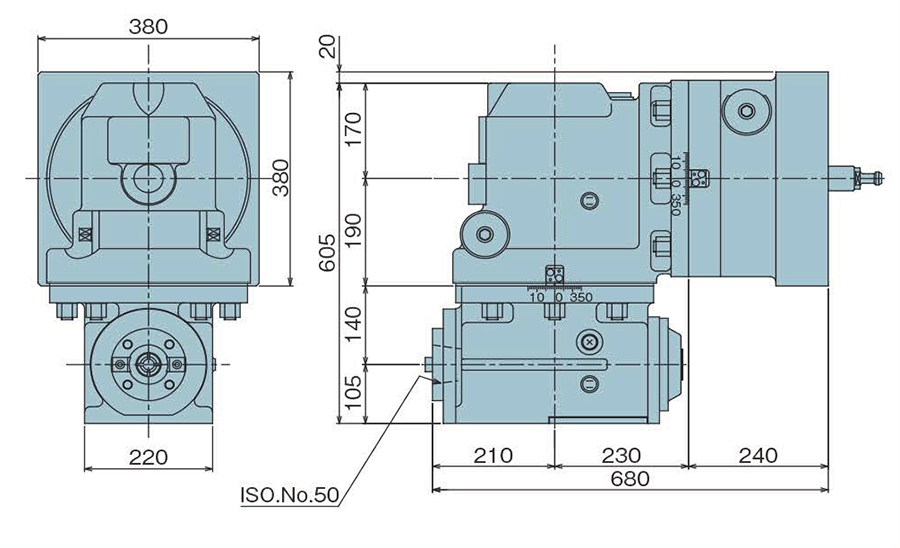

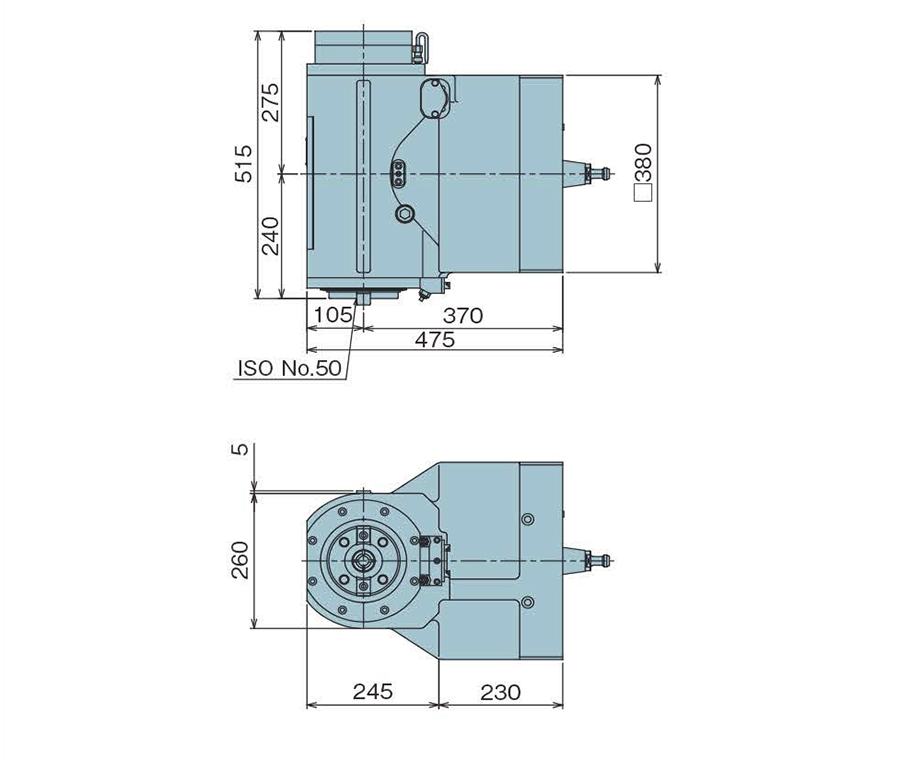

Attachment dimensions
Angle Head

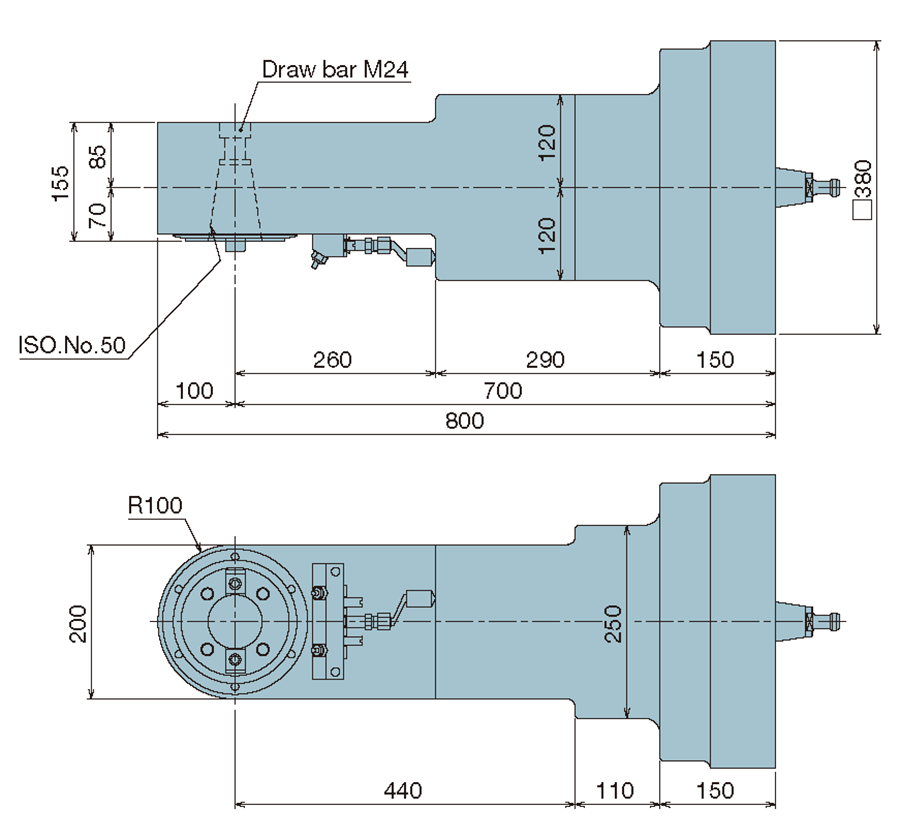

Angle Head L700

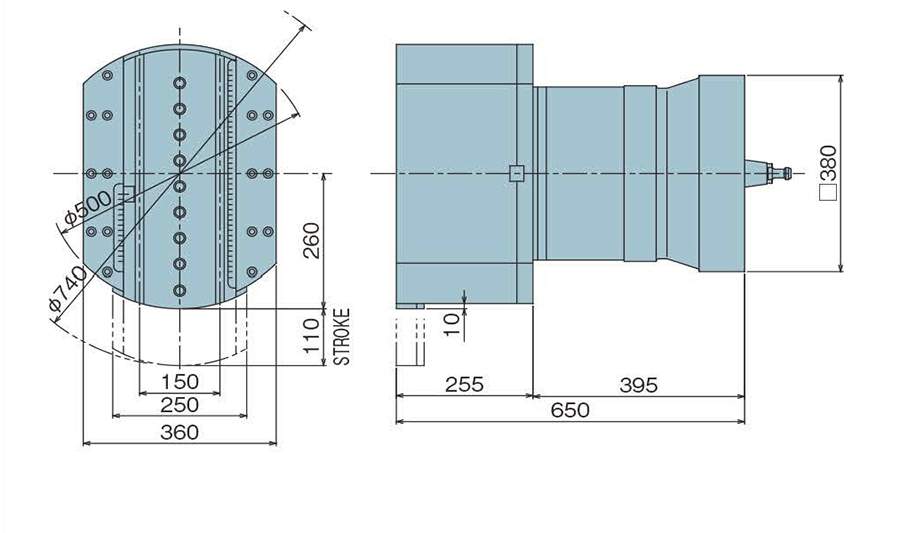

Facing Head

Universal Head

Attachment Stocker
Note: It changes with combination of Attachments

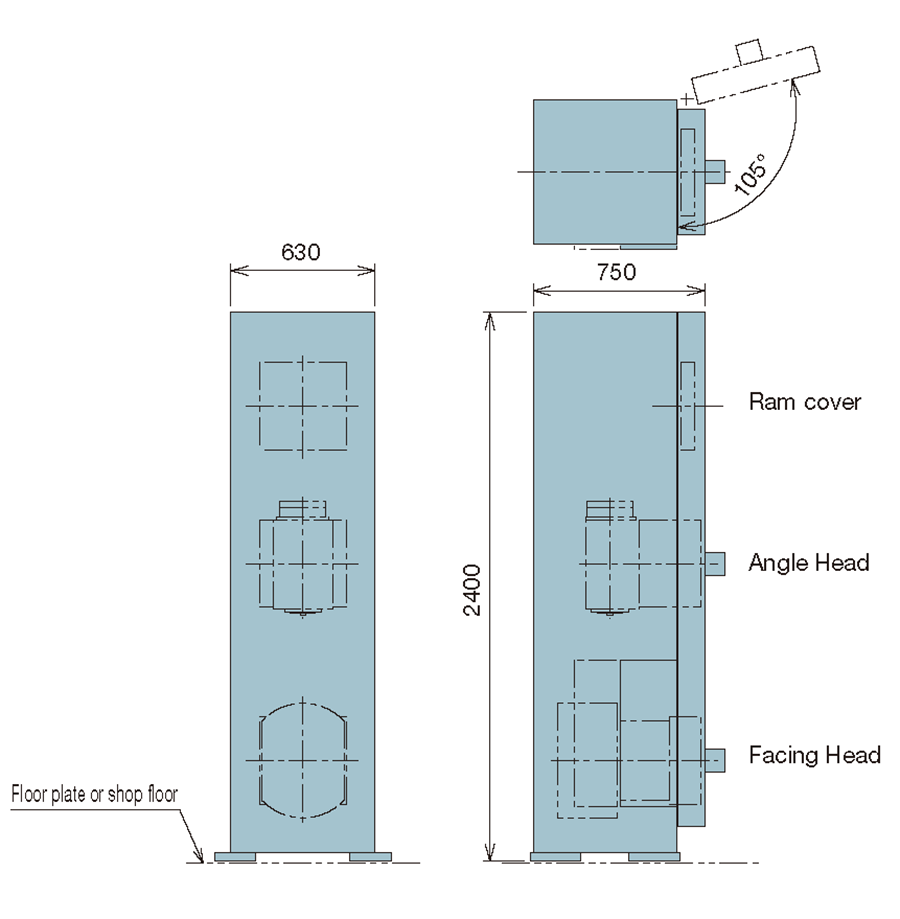

Rack Type
Example ; Angle Head and Facing Head

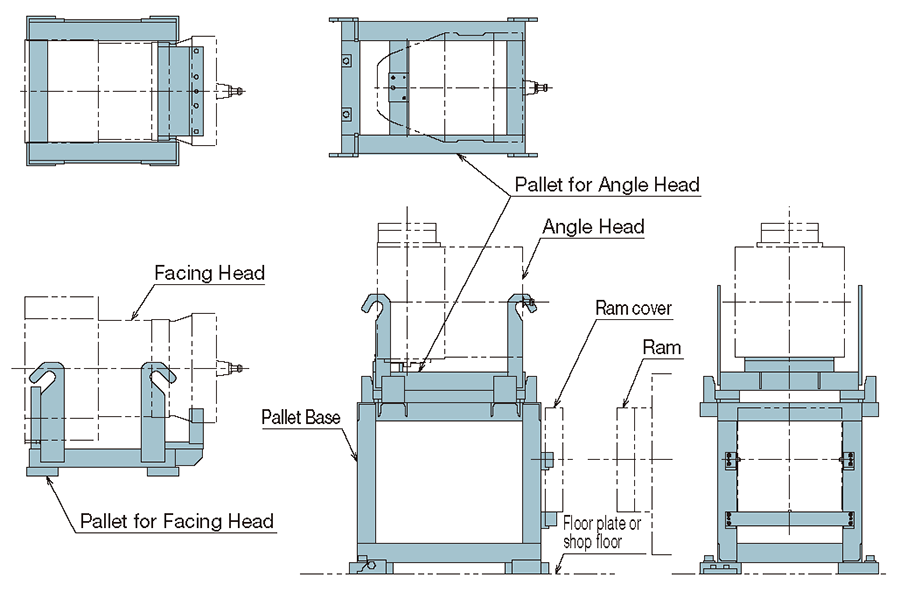

Pallet Type
Example ; Angle Head and Facing Head
・An attachment located on the pallet base will be picked up onto the ram.
・An attachment on the pallet base should be replaced by means of crane, before mounting another attachment on the ram.

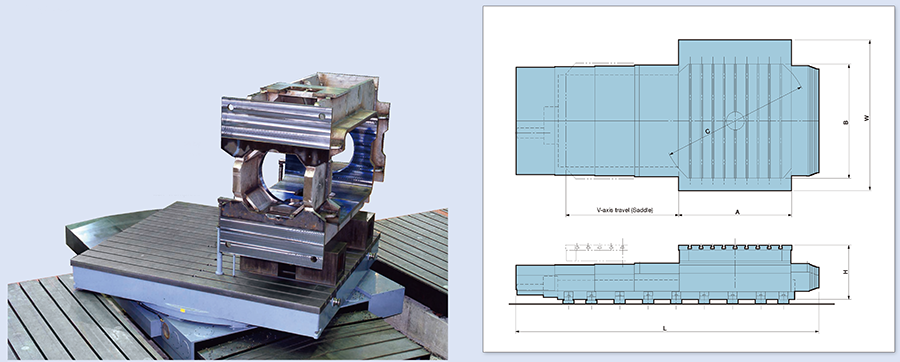

Rotary Table (Optional accessory)
BR series Rotary Table can be supplied for our BSF series machine In addition to above application, the unit can work together with your machine as a independent unit when equipped with an independent controller
- A special hydrostatic system with unique servo slottles, developed by Shibaura Machine, assures accurate posioning, smooth and stable movement, coupled with rigid main compoments and feed system, minimizes the affect of table load.
- Workpiece can be located on any angle and position by control or part program AC servo motors drive each axis on the unit.
- This model provides power in improving productivity, saving manpower and machining complex workpiece when coupled with various attachments.

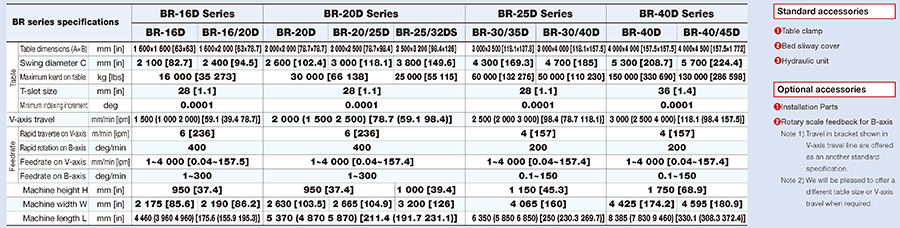

Specifications of Rotary Table

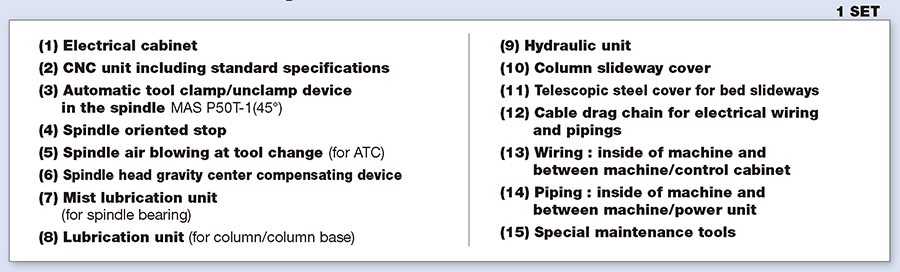

Standard accessory

Optional accessory

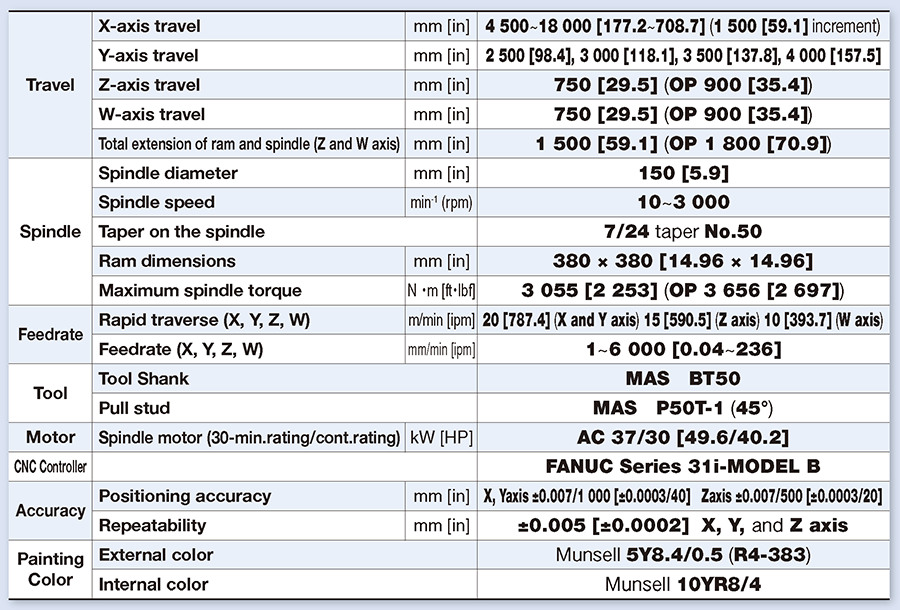

Machine Specifications

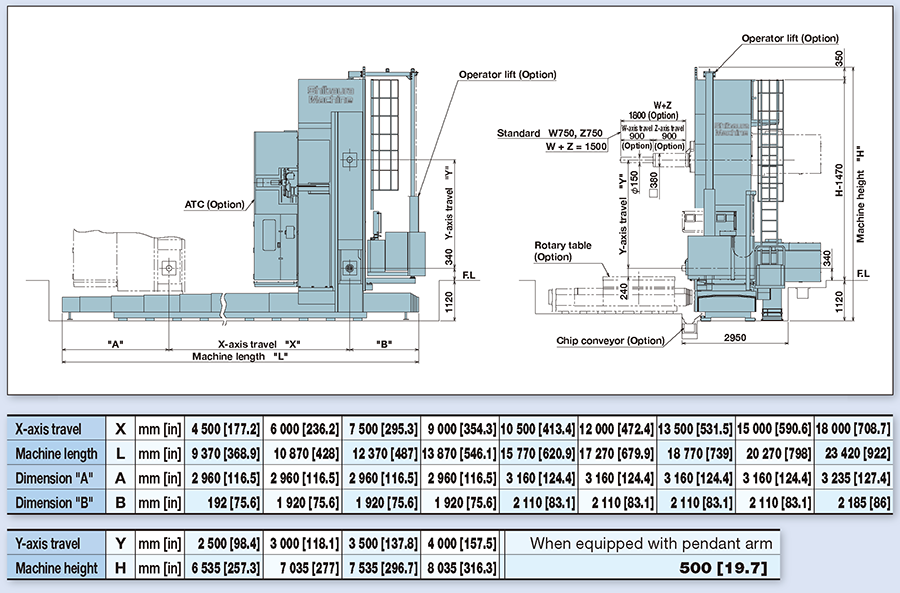

General View

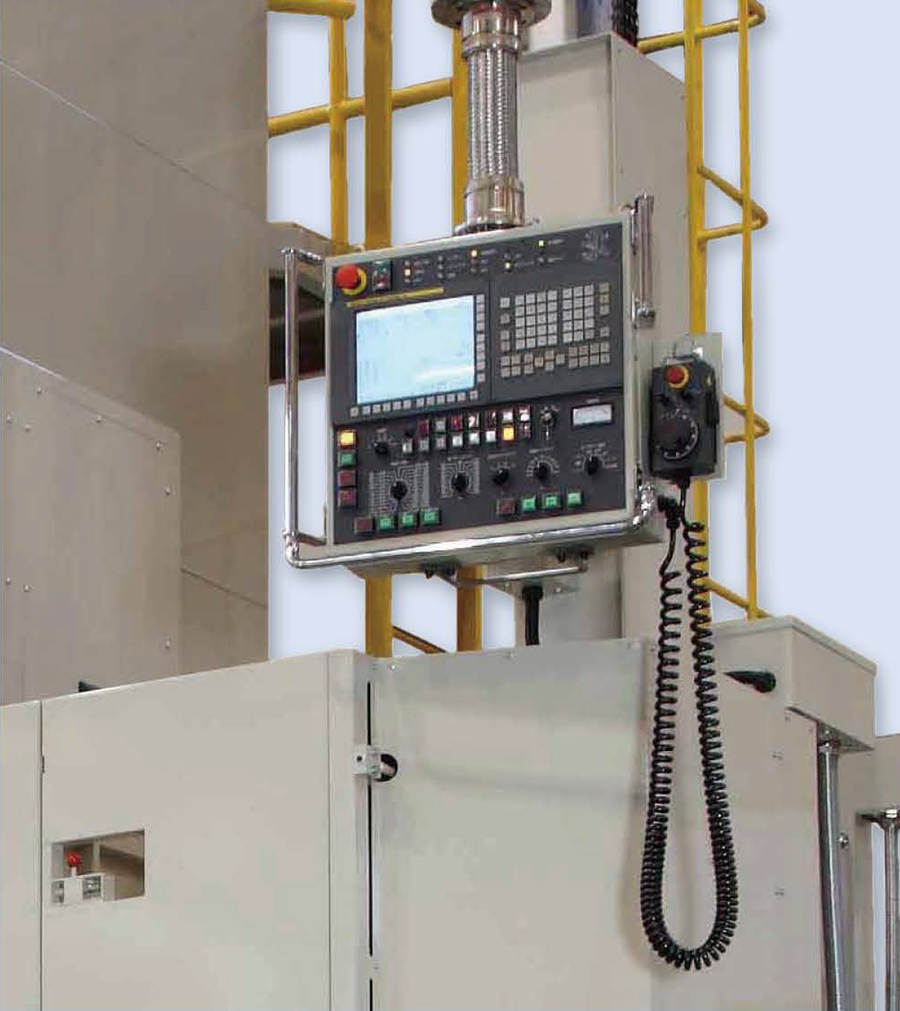

CNC Controller FANUC Series 31i-MODEL B

Excellent operability
Manual Operation
Manual pendant allows for easy manual operation. Levers for Jog, spindle, override rotary swiches, coolant/conveyor swtiches tool unclamp/clamp and more, allows for convienient operation in Manual mode and CNC mode. A portable handwheel unit allows fine movement in manual mode for set up and manual machining.
Automatic Operation
Essential optional functions for the FANUC control are included in the standard machine specifications. They include canned cycles, custom macro, etc.

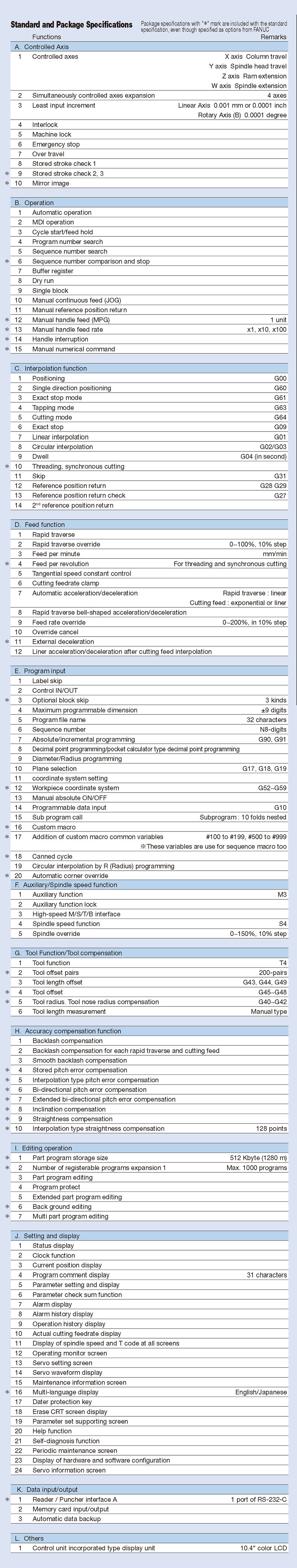

Standard and Package Specifications
Package specifications with "*" mark are included with the standard specification, even though specified as options from FANUC

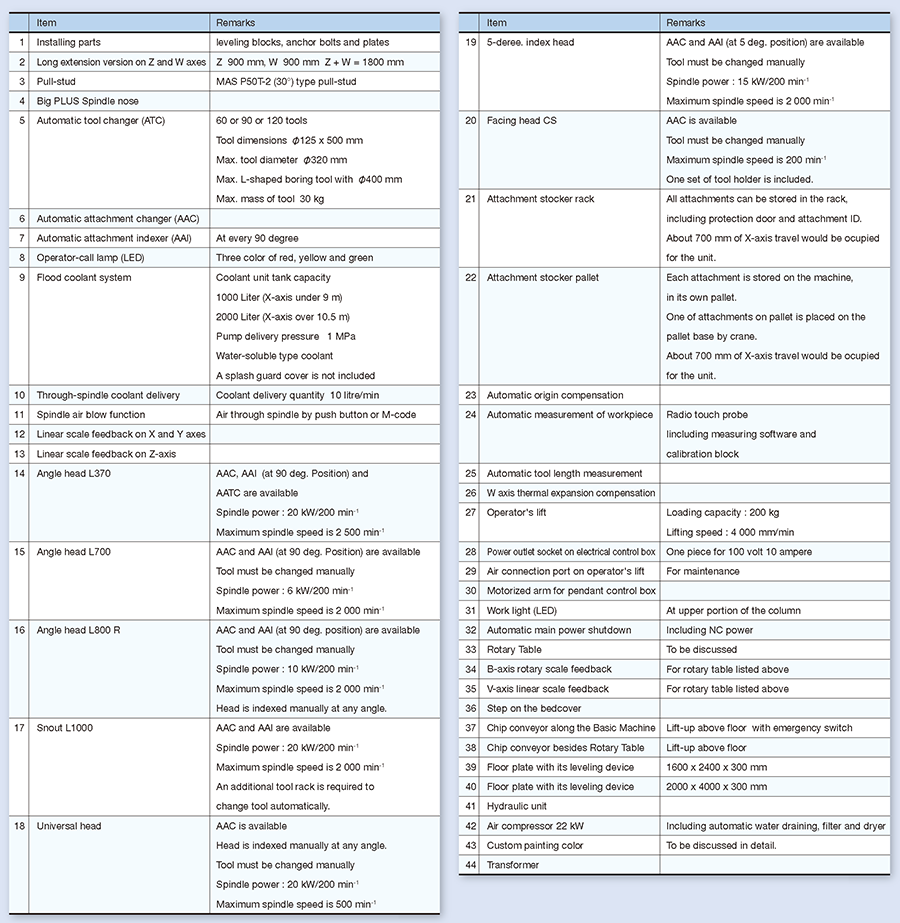

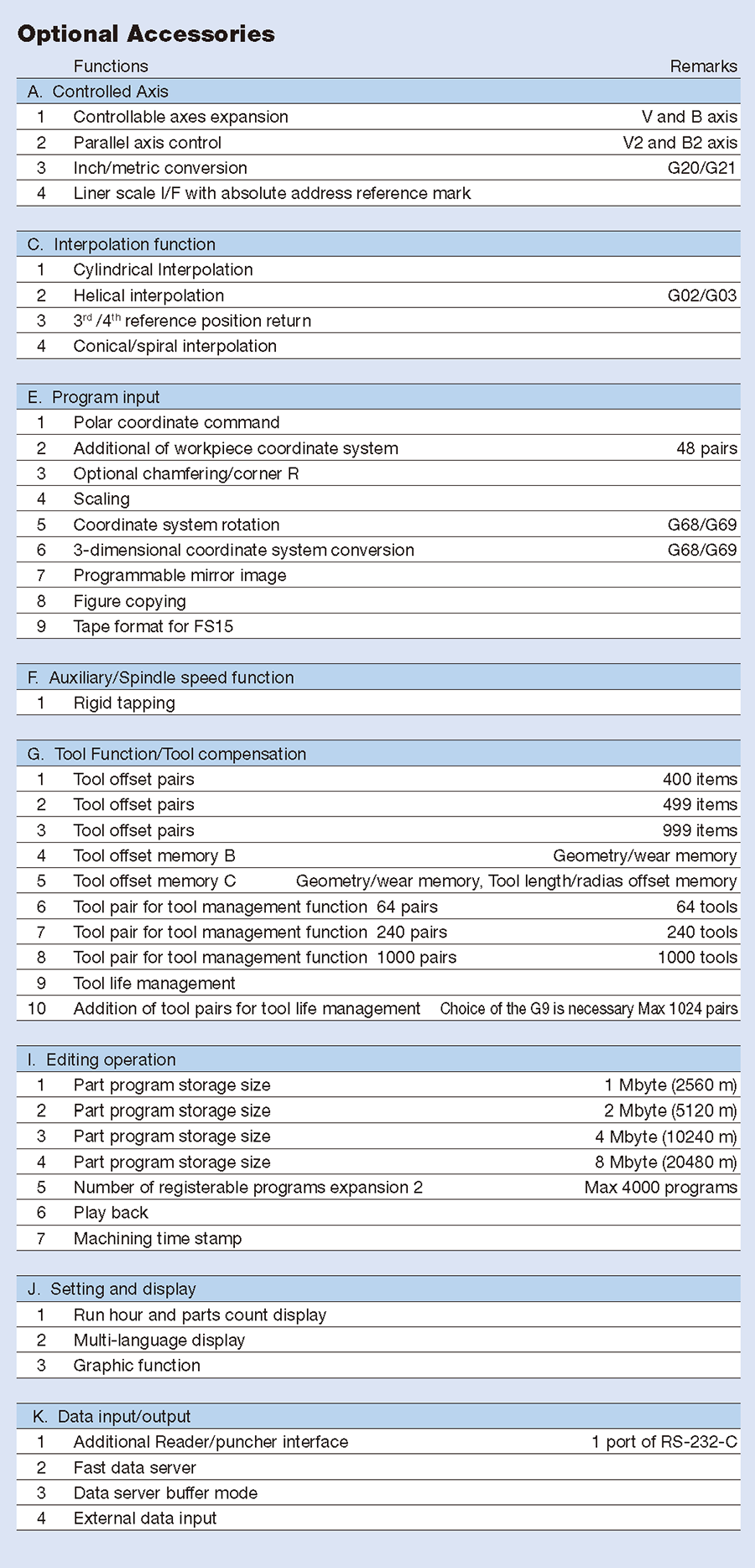

Optional Accessories

CNC Controller
CNC "FANUC Series 31i-MODEL B" is adopted on the machine for taking into consideration on grobal sales operation.
