Floor type horizontal milling and boring machine with a quill-type spindle head and renewed design and performance responding to the users' requirements for high speed and high precision

Main features

Vastly enhanced productivity

A vast array of accessories such as an ATC, AAC, AAI and AATC are available for automatic combined operation
Increased spindle speed and feedrates

Greatly improved operability

Easy changeover from manual to NC mode machining by a combination of manual and automatic operations. Specially designed and engineered TOSNUC 999 CNC system with extensive NC functions specific to the horizontal milling and boring machine for improved operability.

Excellent workability

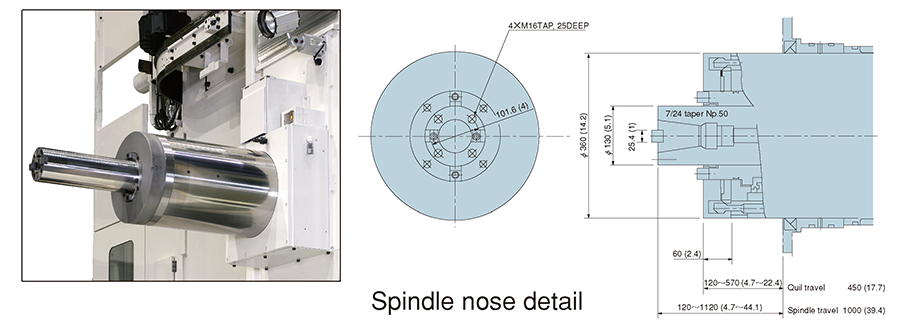

Quill-type spindle head allows easy access to the workpiece Extensive cutting operation is made easy by the spindle extension Machining of multiple surfaces is possible in a single setup by using a rotary table (option) As a workpiece is secured on the floor plate, no limitation is imposed on the shape and weight of workpiece. Also, machining of a workpiece larger than the machine is also possible Labor-saving chip disposal for easy unmanned operation

HIGH PRODUCTIVITY

HIGH PRODUCTIVITY

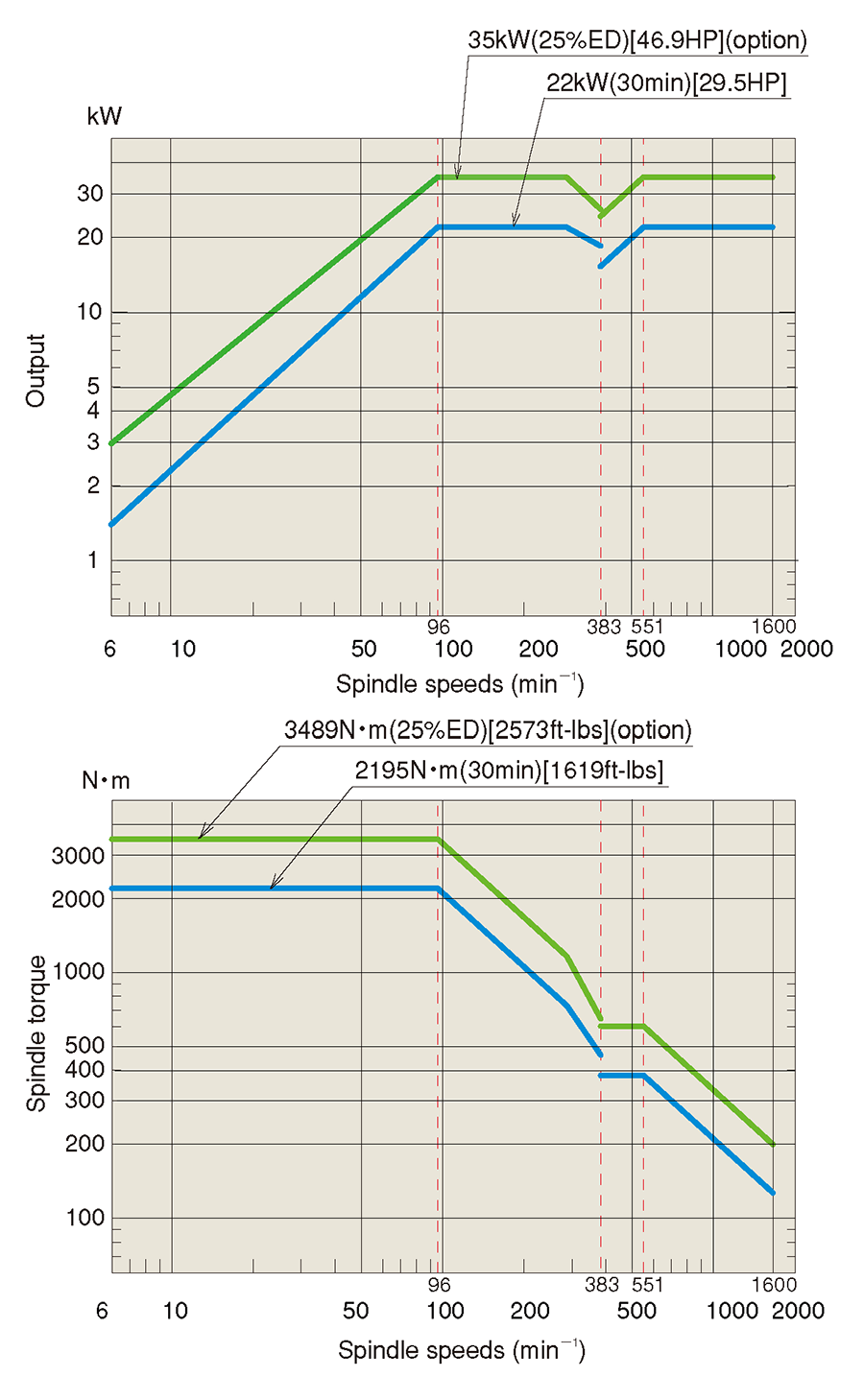

Spindle speed-torque diagram

Spindle speed-torque diagram

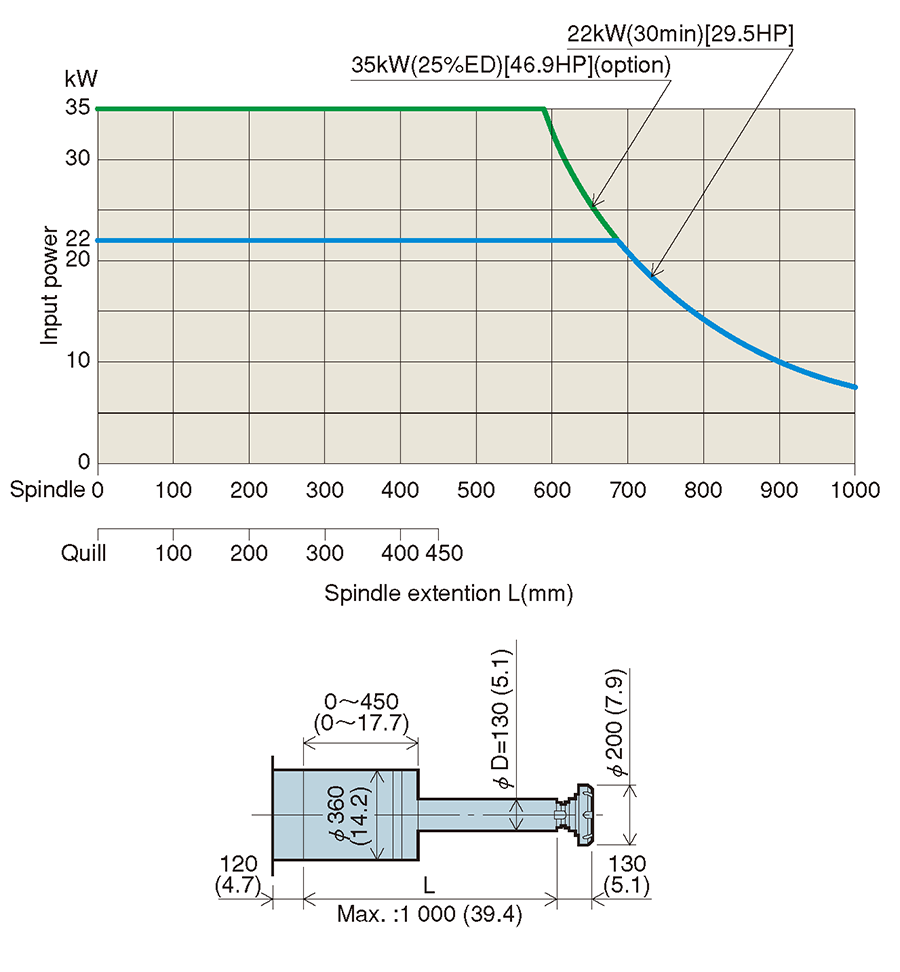

Milling capacity in relation to spindle extension

Milling capacity in relation to spindle extension

Material :SS400P (Steel)
Milling cutter :Tungsten-carbide face milling cutter
Cutting speed :100 m/min
Cutting feed :500~1000 m/min
Cutting height :Within 1300 mm from lowest position

EASY OPERATION

EASY OPERATION

In machining workpieces, higher efficiency and accuracy are aIways required. Not only machining abiIity of the machine, but interface controlling the machine according to the operator,s commands is also very important. TOSNUC 999, the easy-to-use and easy-to-learn CNC system born from Toshiba Machine,s special NC technologies integrating the machine and controI system, provide a number of functions supporting the operator.

Improved operability based on years of experience

Independent display and status changeover keys

DispIay changeover and seIection of edited data can be performed instantly by independent key operation, without using any soft menu keys.

Pop-up menus

A desired menu window can be called on the dispIay by an appropriate function key without changing the current display. List of any desired function can be confirmed on the display without any complex operation of menu hierarchy.

Multi-editing operation

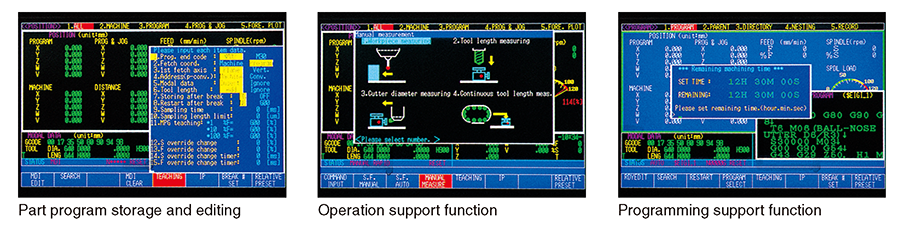

Simultaneous display of two programs and data such as compensation values are aIso possible on the same TFT (thin fiIm transistor) screen which is divided into three sections. Each display can be edited separateIy, and a new program can be created easily as if you were operating a word processor, while referring to an existing program in memory.

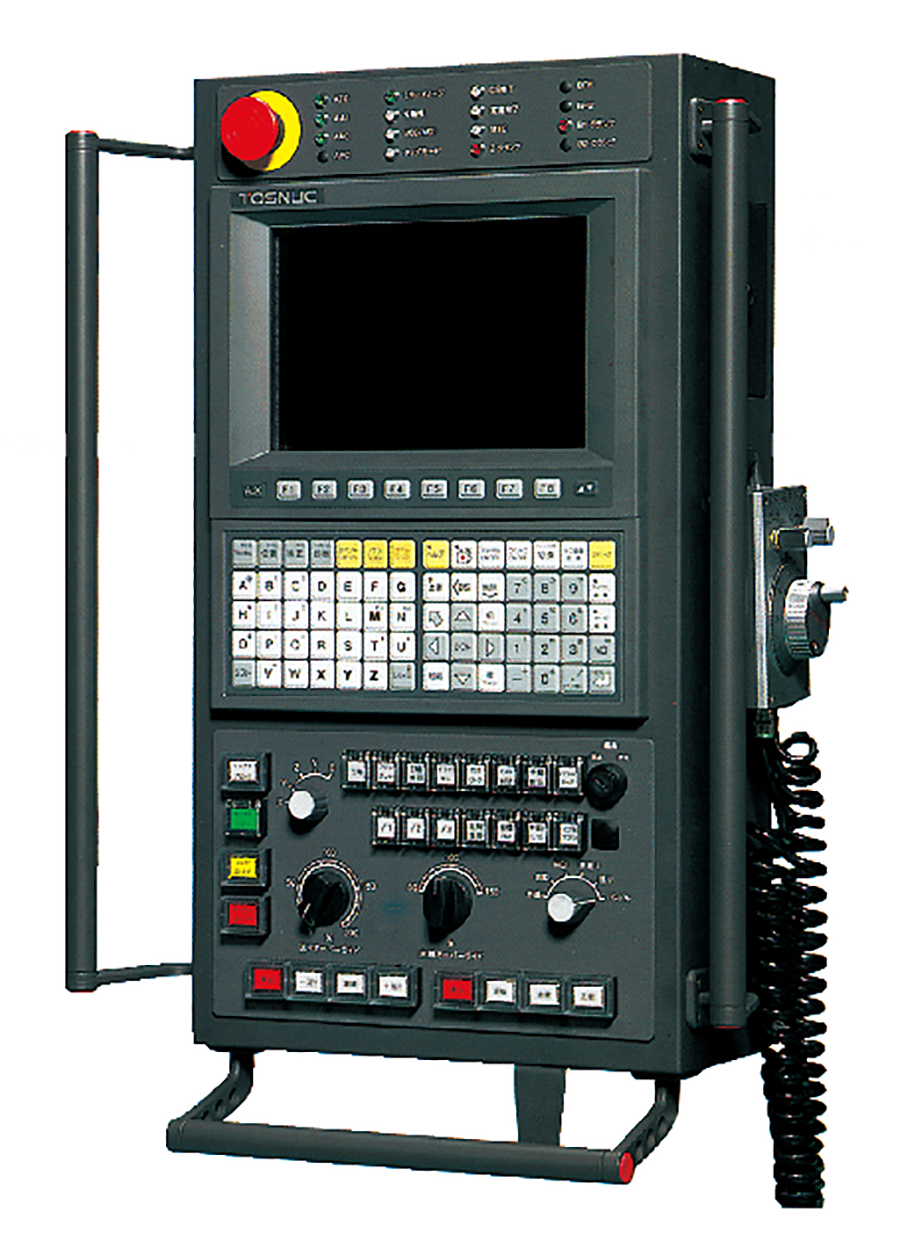

Easy-to-operate centralized operation stand

  • Dials and switches required for manual operation are arranged from operator , s standpoint, thus enhancing the workability.
  • Handwheel feed which is very convenient for moving X-, Y-, Z-, W-, V- and B-axes is standardly equipped on handy box.
  • Machine coordinates and work coordinates of X-, Y-, Z and W-axes can be identified on a display. Display of Vand B-axes coordinates, S and F values is on other page of screen by a changeover switch.
  • The S/F change and spindle rotation lock help improve the machine operability.
Easy-to-operate centralized operation stand

Machine configuration

A combination of floor plates, suited for general-purpose machining

A combination of floor plates, suited for general-purpose machining

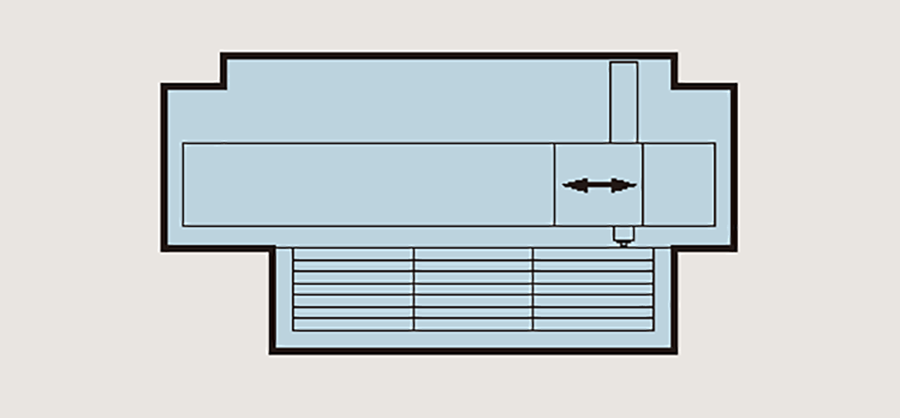

This type floor plan imposes no restrictions on the shape, size and weight of workpiece and can be pIanned according to customer , s specific machining reguirement. This figure shows the arrangement of three floor plates placed side by side according to X-axis travel. It is aIso possibIe to line them up in a row or in paralleI.

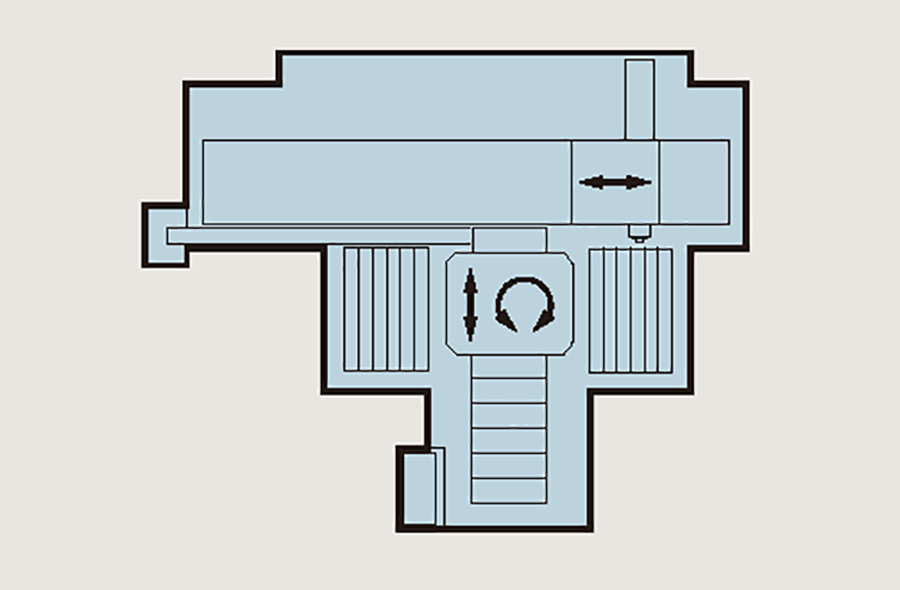

A combination of a rotary tabIe and fIoor plates, best suited for combined machining

A combination of a rotary tabIe and fIoor plates, best suited for combined machining

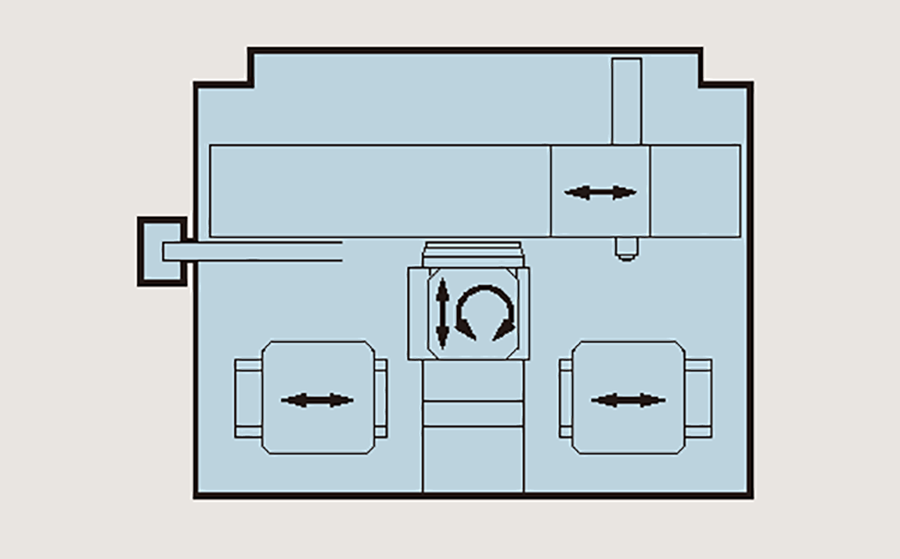

A high-performance rotary table and floor plates realizes combined machining including precision machining of multiple surface, boring by 180°tabIe index and rotary milling, in addition to normal machining operation using a floor plate. Thus, productivity can be significantly enhanced.

A pallet changer type rotary table suited for unmanned operation

A pallet changer type rotary table suited for unmanned operation

A pallet changer type rotary table not only improves productivity of combined machining, but allows unattended operation.
Normally, the time for workpiece setup is said to amount to 15 % of the total machining time. Only a few minutes is required for pallet change, when this rotary tabIe is used. Idle time for changing set-up of workpiece is producting a variety kinds of workpiece wiIl be minimized and reaI cutting time can be increased sharply.

A combination of a pallet changer type rotary table and floor plates

A combination of a pallet changer type rotary table and floor plates

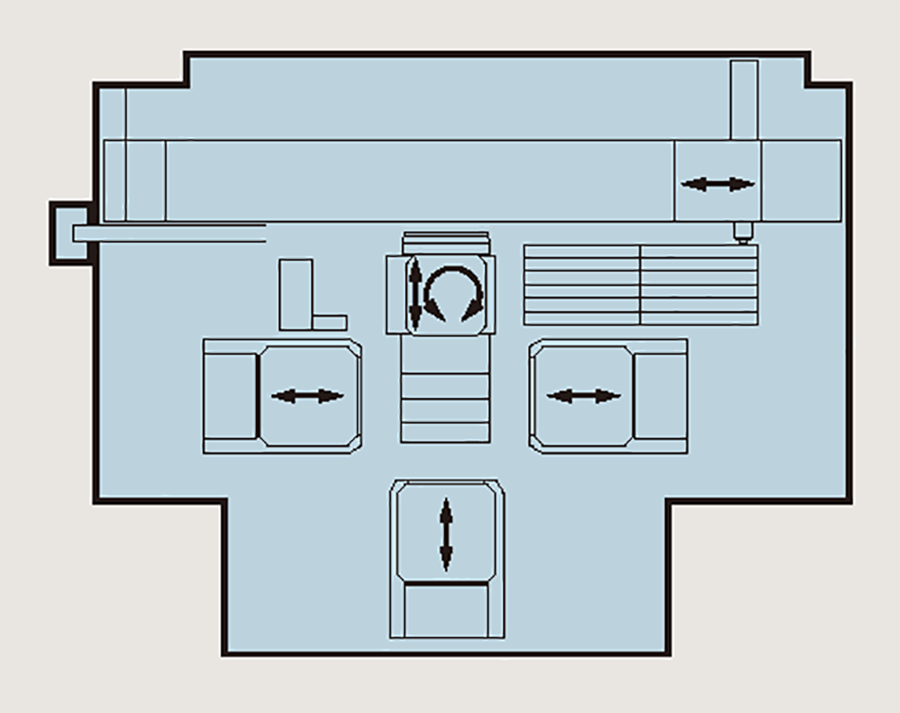

Another pallets can be added to the standard two pallets and arranged along a star. Also, an attachment stocker can be provided. This type floor plan is very useful for more advanced combined machining operation and for further improvement of productivity.

Note:In addition to the above floor plans, a diversity of floor plans such as installation of opposing two machines are also available. Please consult us for details.

General view

General view

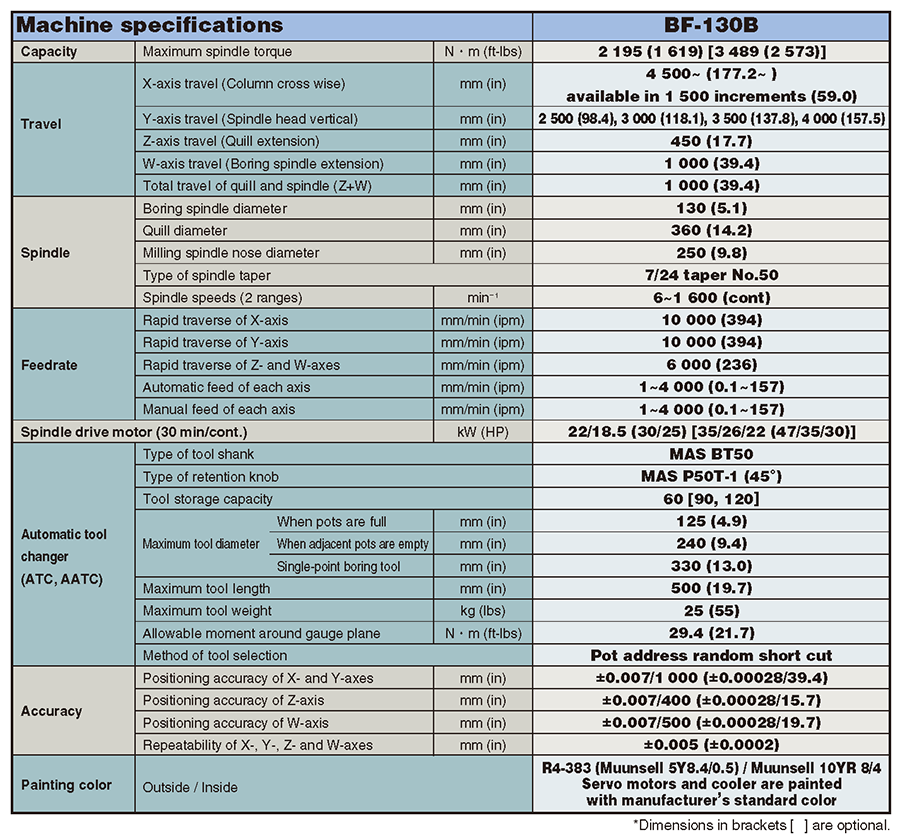

Machine specifications

Machine specifications

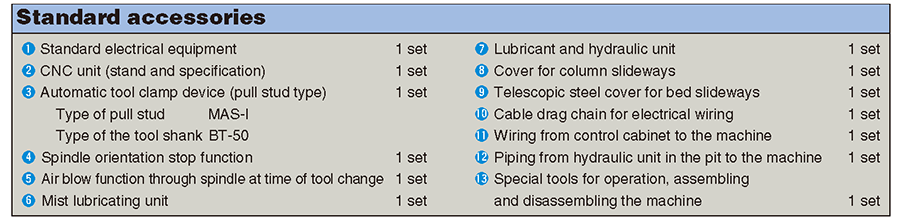

Standard accessories

Standard accessories

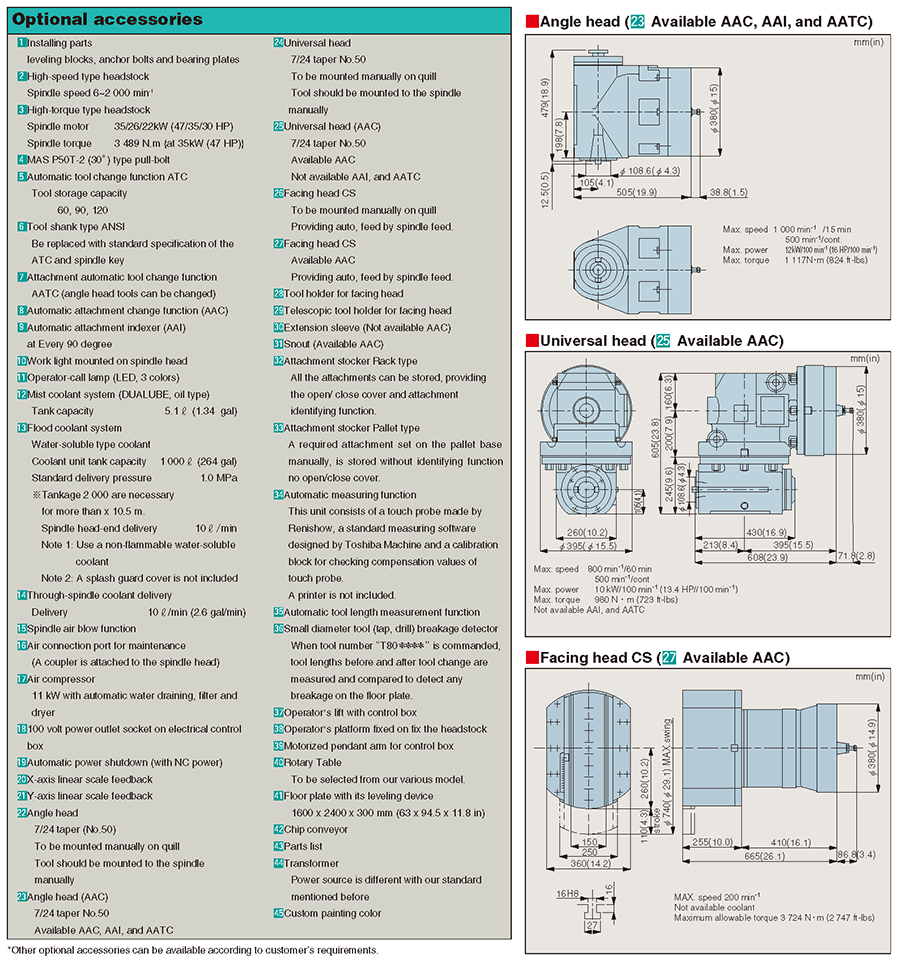

Various peripheral equipment for greater (production) efficiency.

Various peripheral equipment for greater (production) efficiency.

CNC system specifications

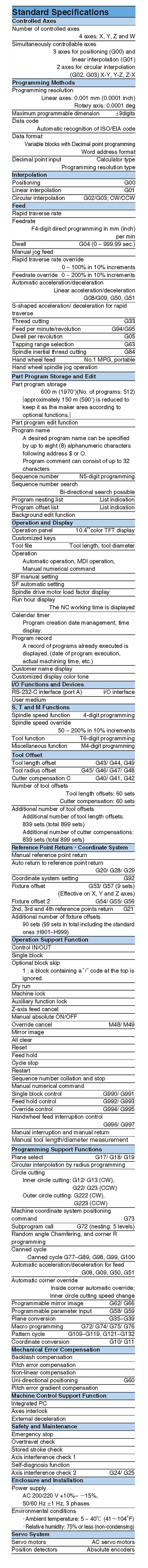

Standard Specifications

Standard Specifications

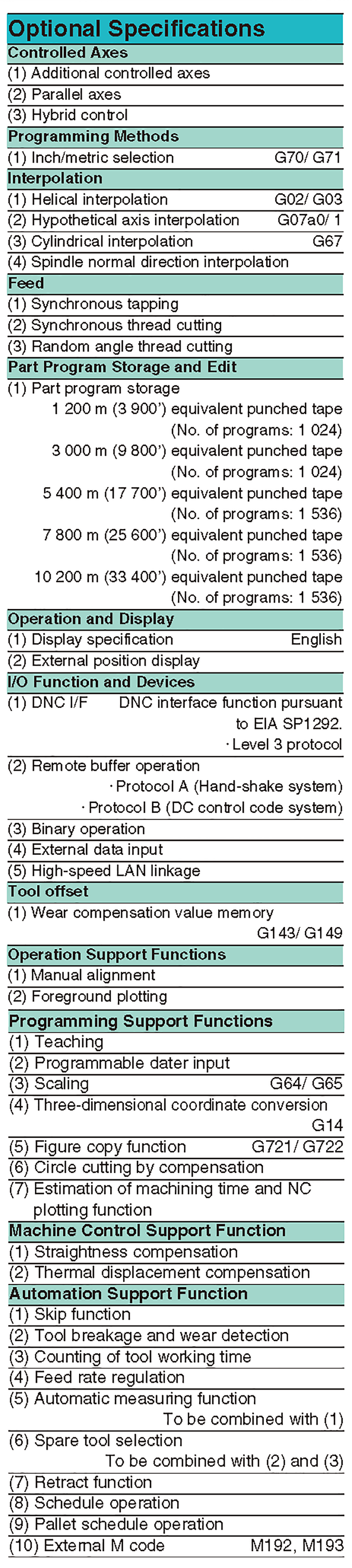

Optional Specifications

Optional Specifications

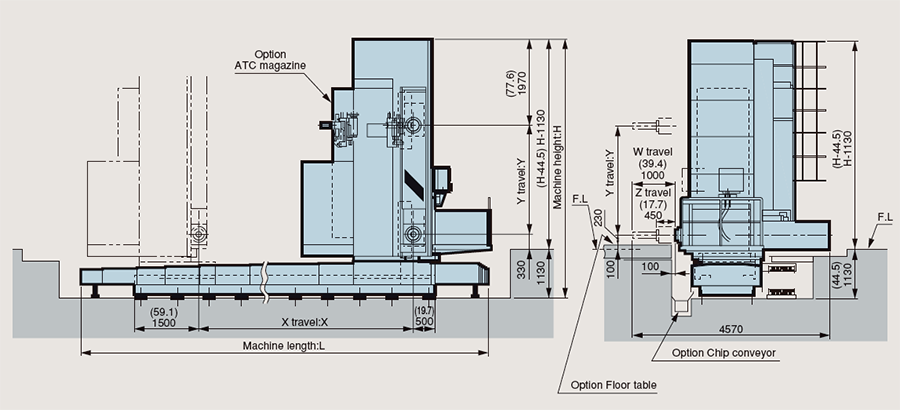

General view and Machine Layout
