SCARA Robot Applications

Workpiece Sort/transfer Cell

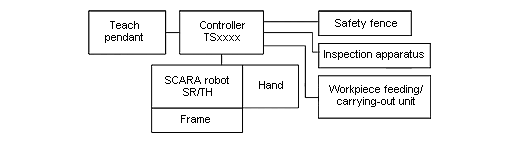

System configuration

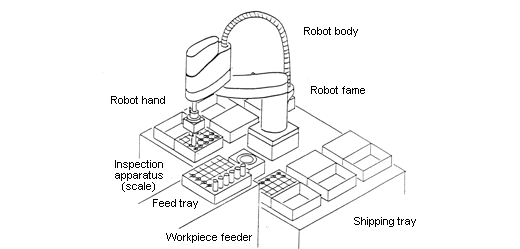

Layout

Outline of operation

Sorts fed workpieces based on the product inspection data. Sorts them according to inspection data, characteristics (weight, size, material, etc), barcode, lot, etc. and arranges them at the predetermined positions. This system has two processing methods: batch method where inspection data is received as a package for processing and online method where each workpiece is processed while being inspected.

Target user

Home appliance maker, electric appliance maker, auto parts manufacturer, medical equipment manufacturer

Small Parts Mounting Cell

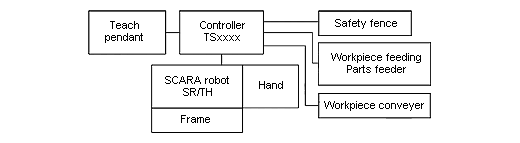

System configuration

Layout

Outline of operation

Mounts a workpiece fed from the parts feeder at a high speed. Use of a SCARA Robot allows a workpiece to be mounted in any orientation. Additionally attach a hopper to the parts feeder enables long-time continuously operation. It is also possible to replace the parts feeder with a tray or magazine, thereby increasing the degree of freedom of system construction.

Target user

Auto parts manufacturer, home appliance maker, electronics manufacturer

Loading/Unloading Workpiece onto/from Working Machine

System configuration

Layout

Outline of operation

This system performs sorting of workpieces based on inspection data.
It sorts workpieces according to inspection data such characteristics as weight, size, material, bar-code reading, or lot number, by placing each workpieces at the predetermined positions.
This system can have two possible processing methods; batch method, where inspection data is received as a batch, or online method, where each workpiece is processed after being inspected.

Target user

Home appliance maker, electric appliance maker, auto parts manufacturer, medical equipment manufacturer
