Element technology

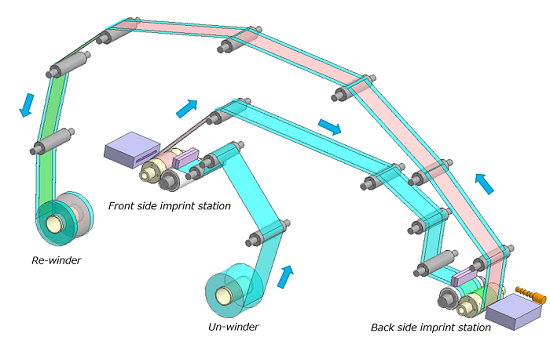

High accuracy both sides pattern imprinting

A transparent film is attached to the feeding shaft, and it is continuously fed at the surface transfer part. UV transfer the surface. After transfer, the film is inverted, the back and surface are UV-transferred by the back-surface transfer part, the front and back surfaces are aligned, and the film is wound by the winding shaft.

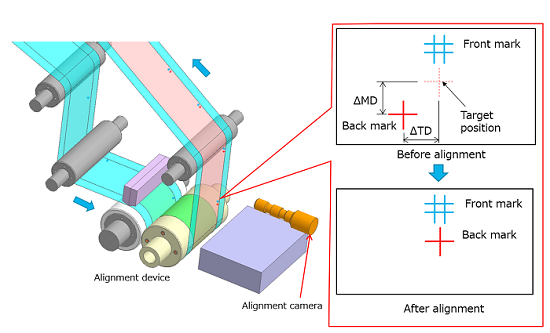

High precision pattern position alignment by web handling, sensing, and positioning technology

The alignment mark is transferred to the edge of the pattern area when UV transferring the front and back surfaces. The alignment marks on the front and back sides are taken with an alignment camera installed after the back-side transfer, and the relative position of the back side with respect to the front side is detected from the captured image and the position is corrected to the target position.

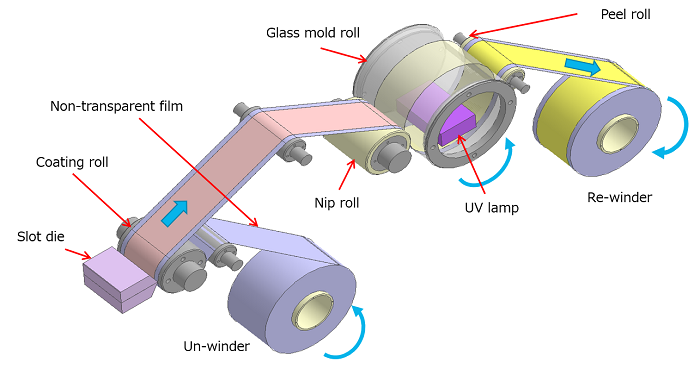

UV imprint on non-transparent film

By using a transparent glass roll and arranging a UV lamp inside the roll, UV transfer to an opaque substrate has been achieved.
It can be used as a mold roll by wrapping a transparent film mold around a glass roll.

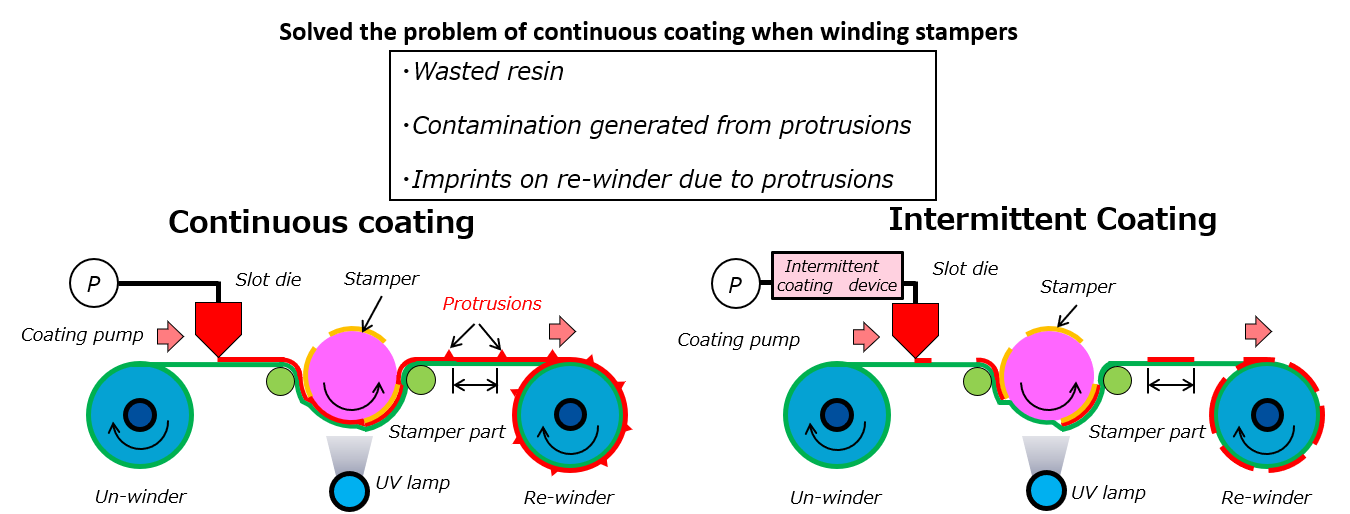

Intermittent Coating

For intermittent coating, only the stamper attached to the roll can be coated by linking the stamper position and coating timing.
