TUE-100

立旋盤TUEシリーズ


Workpieces made of various kind of material can be machined on the machine of wall type column with high rigidity and wide table speed

Features

Best balance on rigidity of structure

工作機械

Ram size is the same as larger model.
The column and arm which support the rail head is designed in a single piece of wall type column with higher rigidity to be able to work under heavy duty.




Highest table speed

Fast rapid traverse reduce manufacturing time.
The table run in wide speed range and make it suitable to work on workpiece made of various kind of material .

  • Rapid traverse 15 m/min on X axis and 12 m/min on Y axis
  • The table has two speed rabge.
    2~150min-1in low range, …8~ 600min-1 in high range

Safe and enviroment friendly machine

工作機械

Fully closed cover around the table is standard specification to avoid coolant and chips splash around and alleviate noise from machining.

Machine specifications

●Table diameter:Φ1016㎜ (Φ40in)
●Maximum swing:Φ1200㎜ (Φ47.2in)
●Maximum cutting height:850㎜(33.5in)
[Maximum height:1055㎜(41.5in)]
●Travel (X-axis×Z-axis):
(X-axis)-510~750㎜(-20.0in ~ 29.5in) (Z-axis)800㎜(31.4in)
●Table drive motor :AC45/37kW (60/50HP)
●Table speed:2~600min-1
●Floor space:5080×3530mm (200×139in)
●Machine height:4432mm (174.5in)
●Mass of machine(including CNC system): 11 000kg (24 200lbs)

Mechanical structure to allow powerful cutting

Main structure is made up using a thick high-quality cast iron.

Column

Column

The wall-type column with a large cross-sectional shape and the cross rail are a single casting designed to reach out to the table center. This type construction firmly supports the rail-head for high-precision, high speed positioning, and heavy cutting.

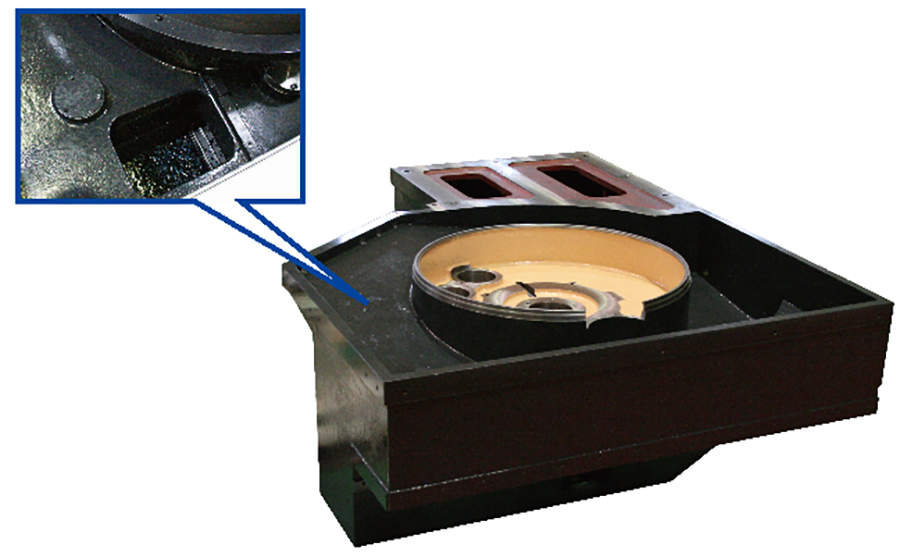

Bed

Bed

The bed, made of cast iron, was engineered for maximum support of the Table and Column. By design, the chips efficiently flow down the slope shape of the bed into the standard chip conveyor with the aid of a shower type coolant.

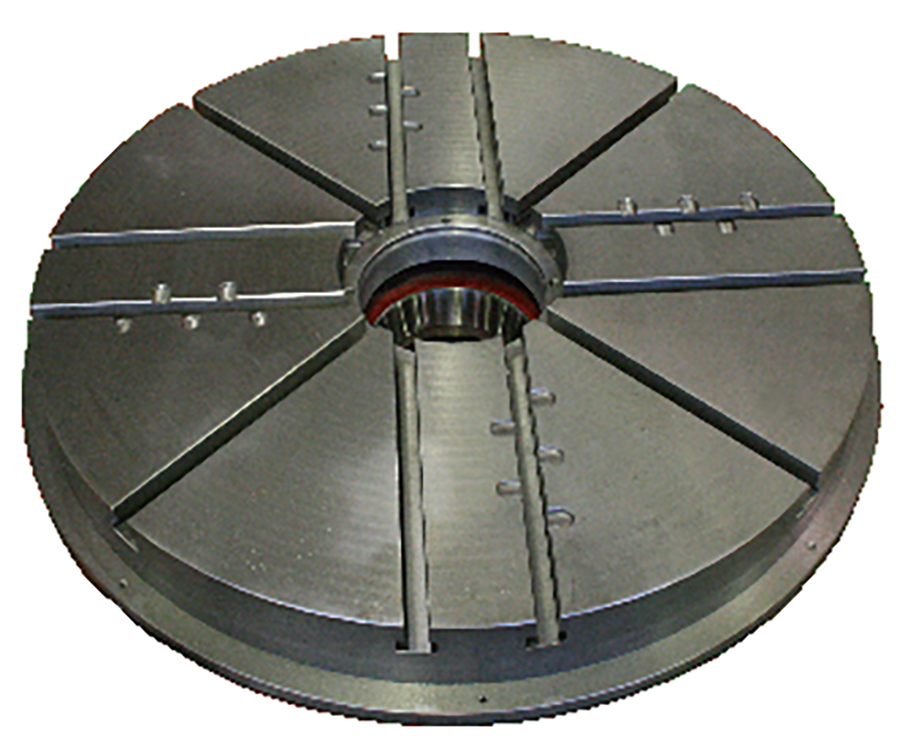

Table

Table

The table is supported by a combination of 2 different types of bearings, a tapered roller bearing which bears the radial load and a large diameter thrust ball bearing which bears the axial load. This combination makes high-speed and heavy cutting possible.

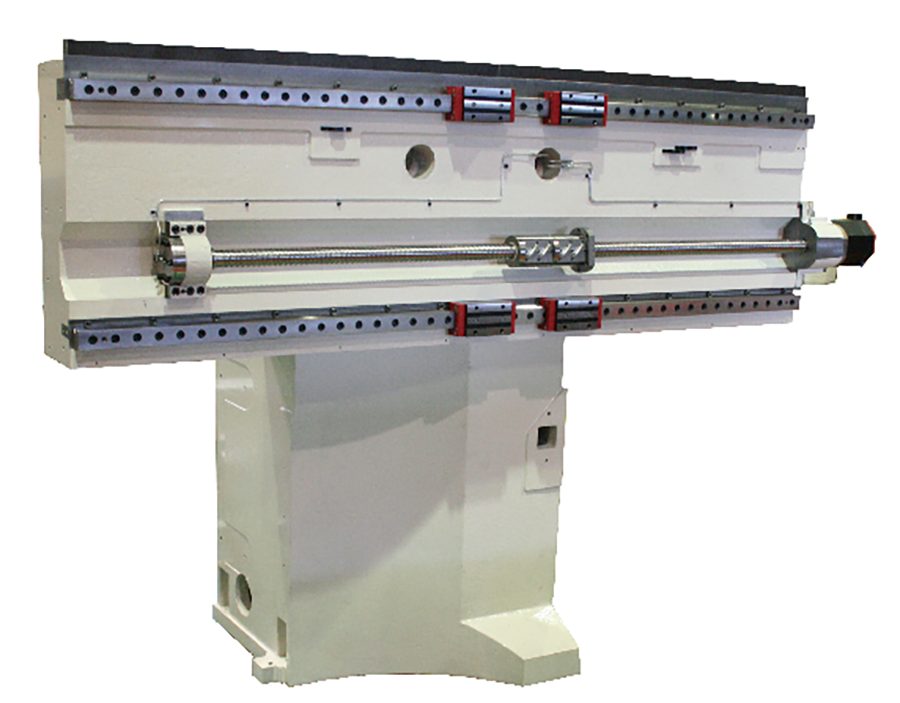

Railhead & Ram

Railhead & Ram

The Railhead and Ram create a hybrid system of motion utilizing large diameter ball screws with linear roller guide ways for the X axis and Hardened and Ground box slide ways for the Z axis making it possible for high-precision and high speed positioning to coexist with heavy cutting.

Railhead & Ram

Tool can be clamped/unclamped automatically in the Spindle (ISO taper No.50) with the collet type pull stud and the spindle is driven by the AC type motor located at the top of the ram.

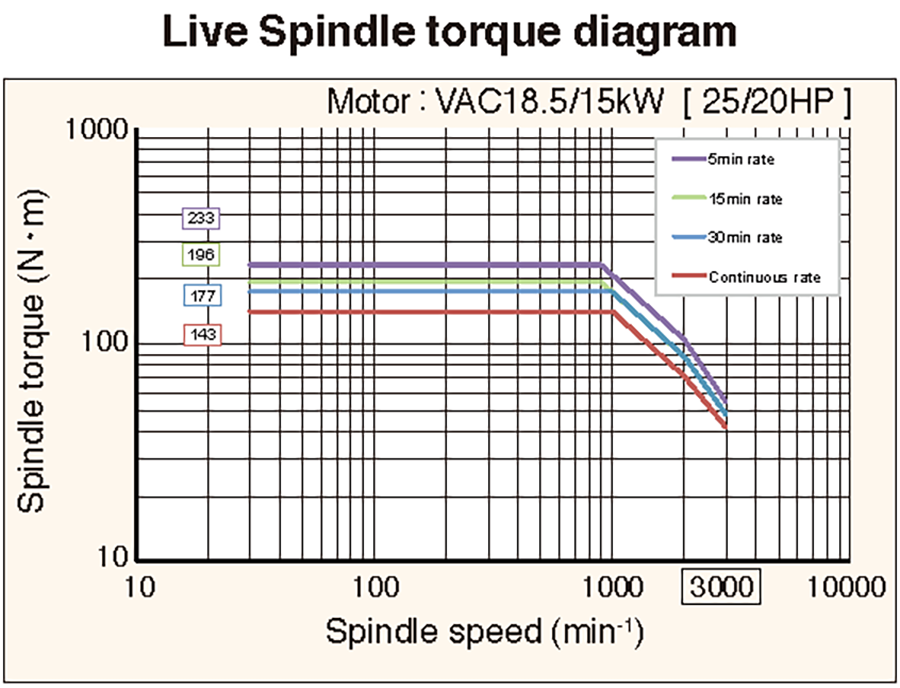

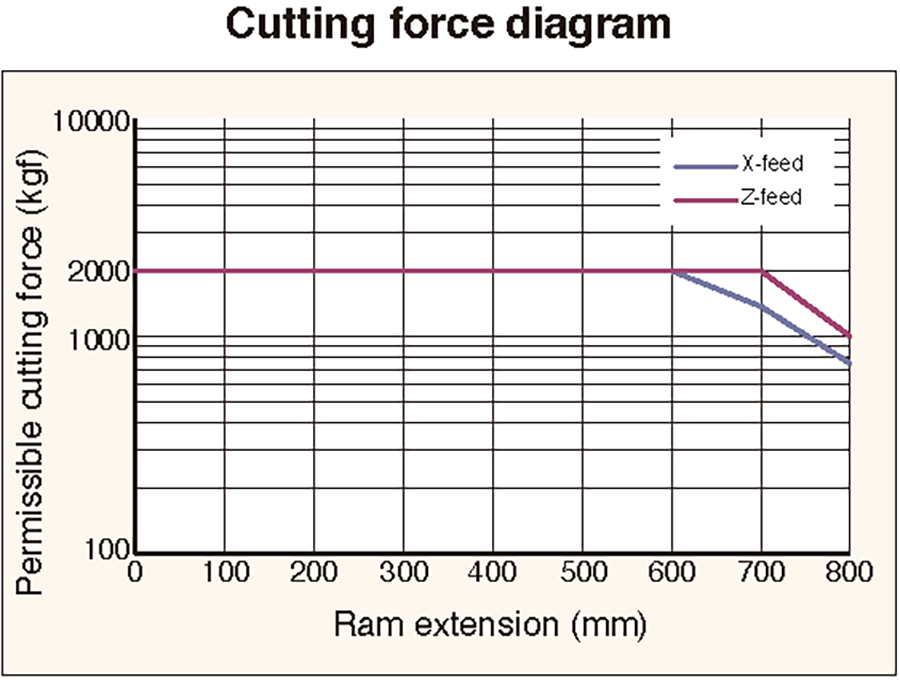

Machine capability

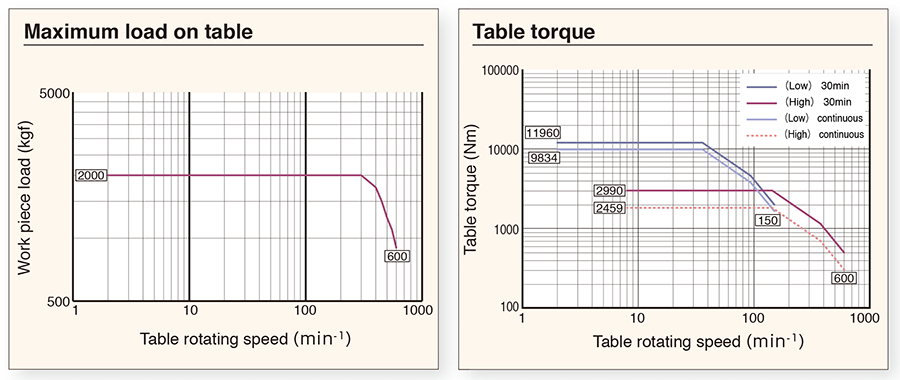

Table capability diagram

Table capability diagram

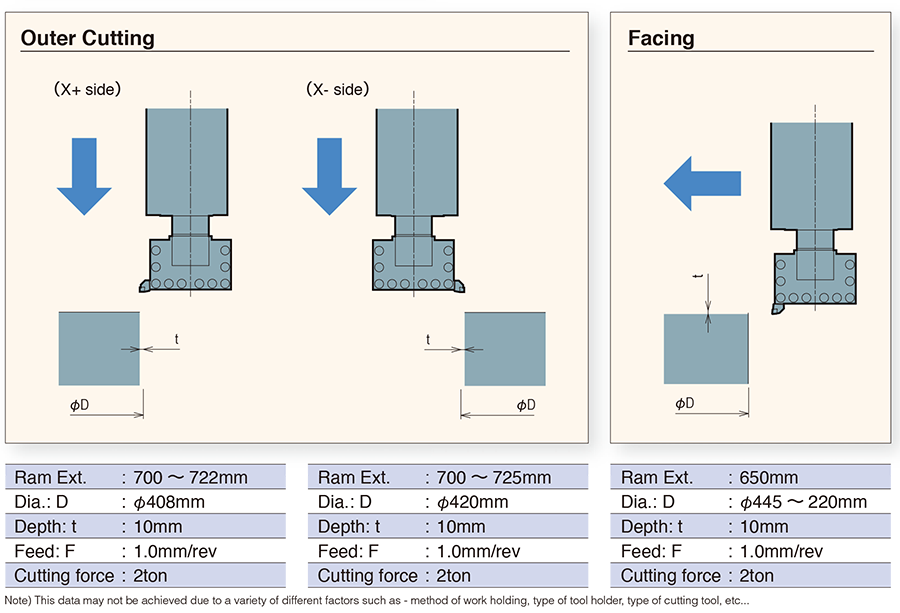

Machining capability(Material: AISI 1055)

Machining capability(Material: AISI 1055)

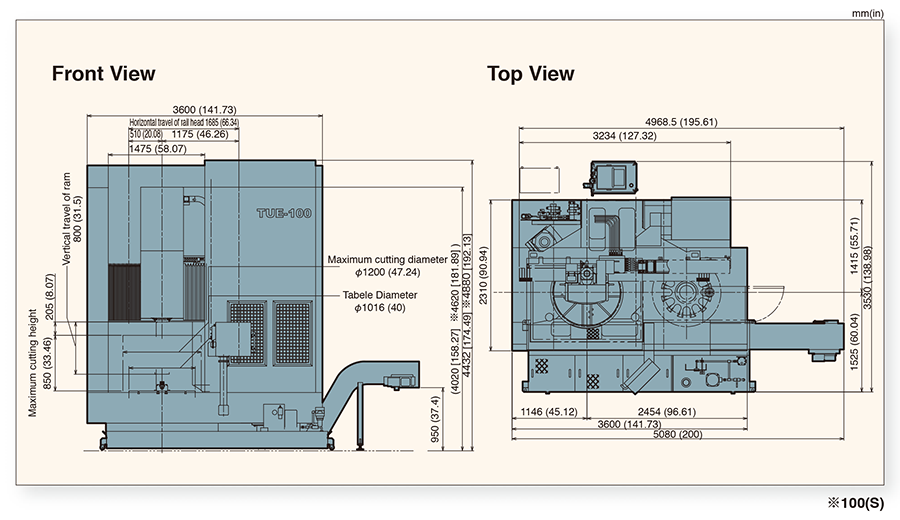

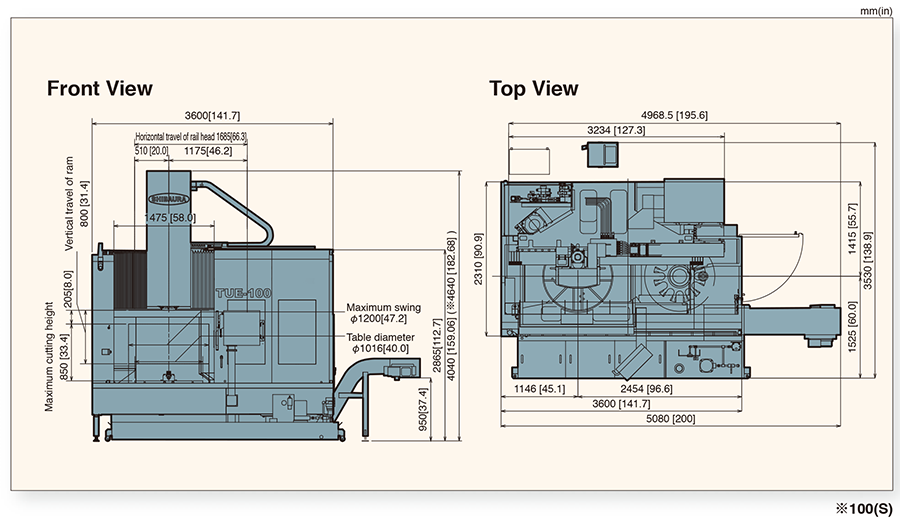

Machine General View

FULL COVER

Machine General View

HALF COVER

Machine General View

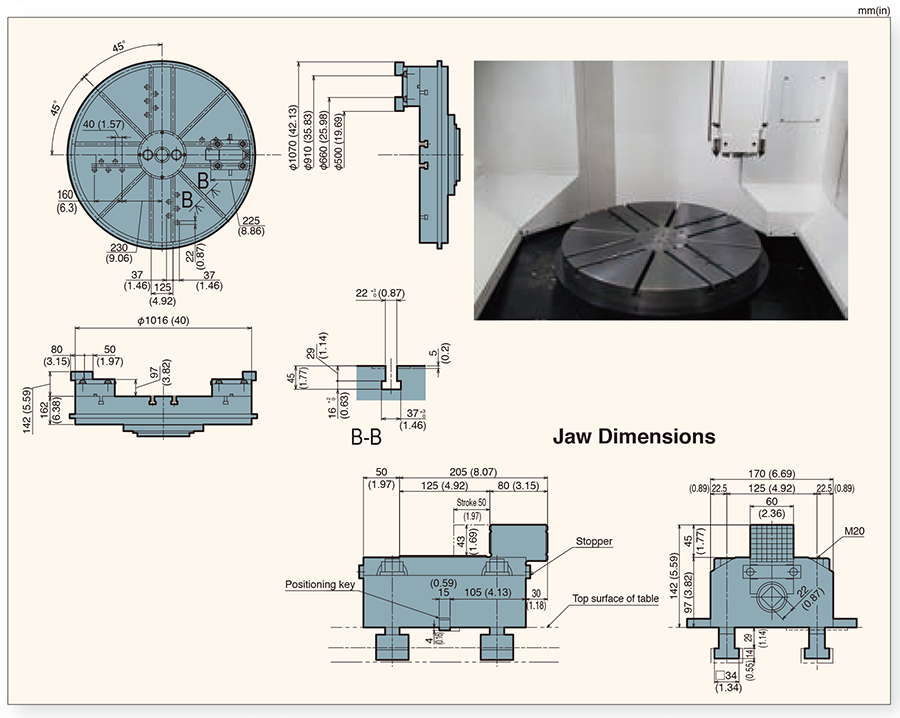

Table Dimensions

Table Dimensions

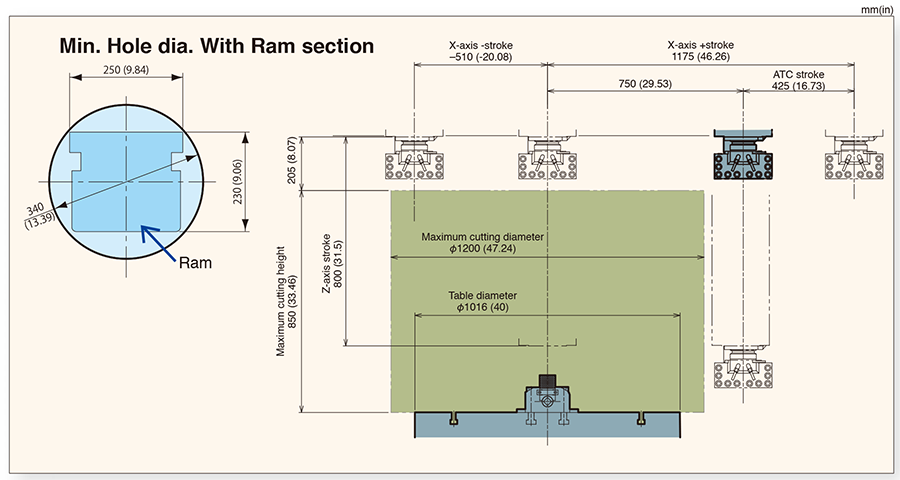

Machine Area

Machine Area

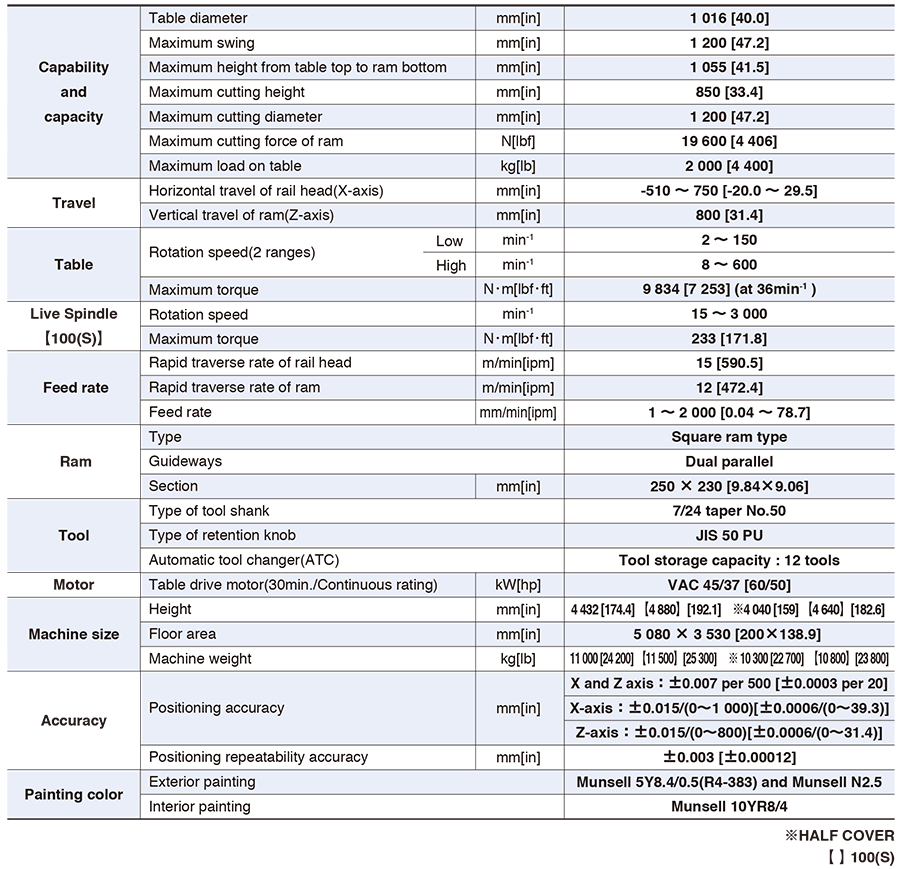

Machine specifications

Machine specifications

Standard Accessory

  1. Installations parts 1set
  2. Special service tools 1set
  3. Automatic slideway lubricating unit 1set
  4. Four (4) independent manually-operated jaws 1set
  5. Telescopic crossrail slide cover 1set
  6. Splash cover (Full-cosed type) 1set
  7. Coolant throuth spindle 1set

Optional Accessory

Turning basic package

  1. Automatic tool changer (ATC)
    Tool storage capacity : 12 tools (※18 tools)
    Type of tool shank for turning : 7/24 taper No.50
    Maximum tool size : 350W×150T×400L mm
    {13.8W×5.9T×15.7L inch}
    Maximum tool weight : 40 kg (88 lb)
    Method of tool selection : Soft tool pot address
  2. Work light (LED)
    10 Watt x 2 piece, Located inside of splash cover
  3. Operator call lamp(This lamp is mounted on top of the arm right side.)
    Green : Illuminated during automatic operation.
    Yellow : Illuminated when M00, M01, M02, M30 or M52 has been executed.
    Red : Illuminated at NC alarm or machine alarm generation.
  4. Table lubricant oil cooling unit
  5. Automatic power OFF
  6. Chip conveyor with tank / coolant unit Used to discharge chips recovered by the chip scraper from the machine.
    Not available to operate by inputting M-code
    (only manual push button).
    Coolant tank capacity : 550 L [145.3 gal]
    Standard type : Motor : AC 4P, 0.2kW [0.27 HP]
  7. Additional table center hole and tap hole Table center hole for fixture : Dia. 100 mm [3.94"] Tap size : M24×pitch 3.0 [1-8UNC]

User Option

  1. High type independent manually-operated jaw set (4 pieces)
  2. Separate type independent manually-operated Soft jaw set (4 pieces)
  3. Separate type independent manually-operated Hard jaw set (4 pieces)
  4. Special stroke type independent manually-operated jaws set (4 pieces) Jaw stroke : 100 mm [3.94"]
  5. Tool holder (see below)
  6. X-axis linear scale feedback
  7. Automatic diameter and step difference measuring device (Included automatic tool compensation function)
    This consists of "touch probe from Renishaw" and measuring software for it.
    Printer is not included in this option.
  8. Automatic tool tip measuring device (Included automatic tool compensation function)
    This consists of "tool eye (with a cross type feeler) from Renishaw" and measuring software for it.
    Printer is not included in this option.
  9. ATC jib crane
    Maximum lifting load : 50 kg (110lb)
  10. HALF COVER

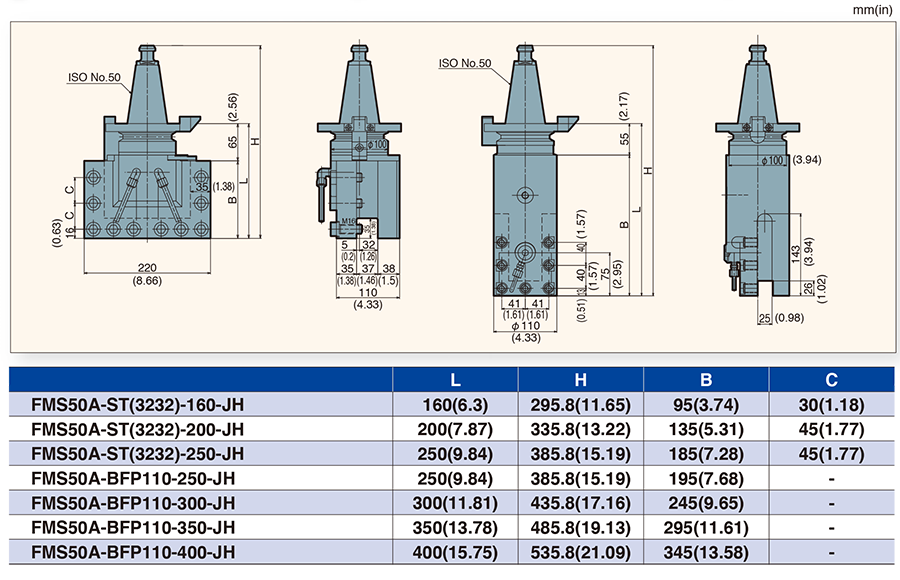

Tool holder (Optional Accessory)

Tool holder (Optional Accessory)

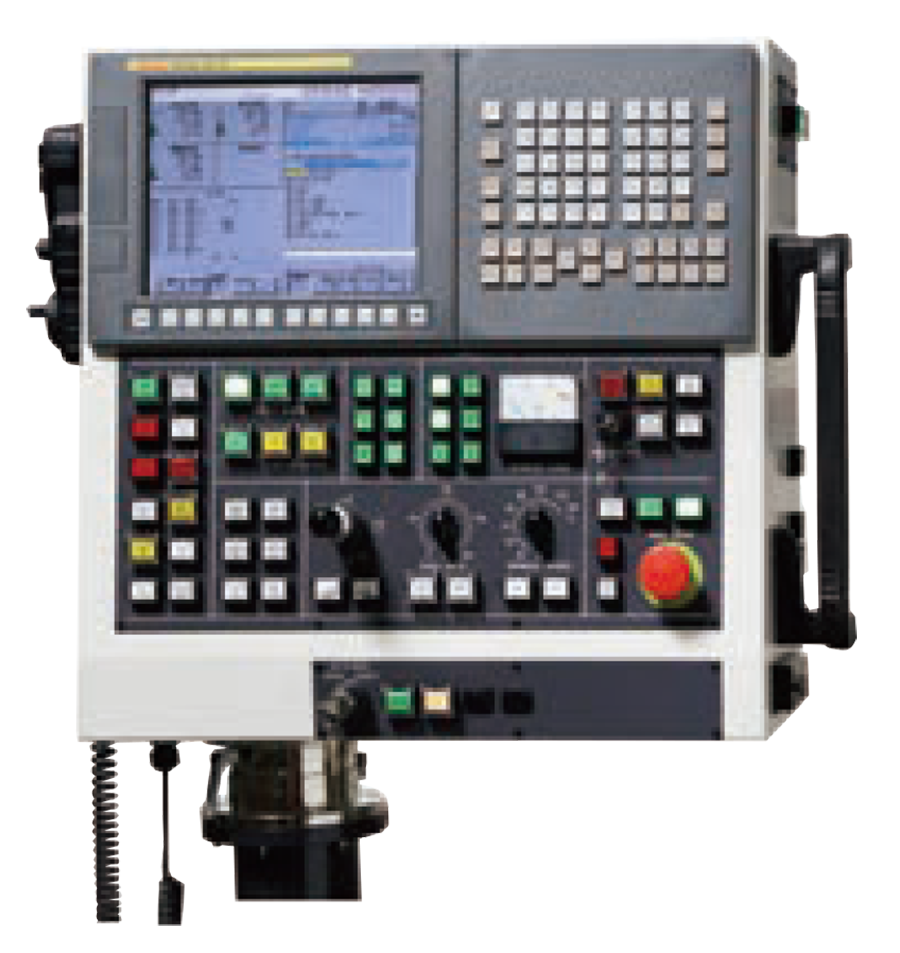

CNC FANUC Series 0i-TF

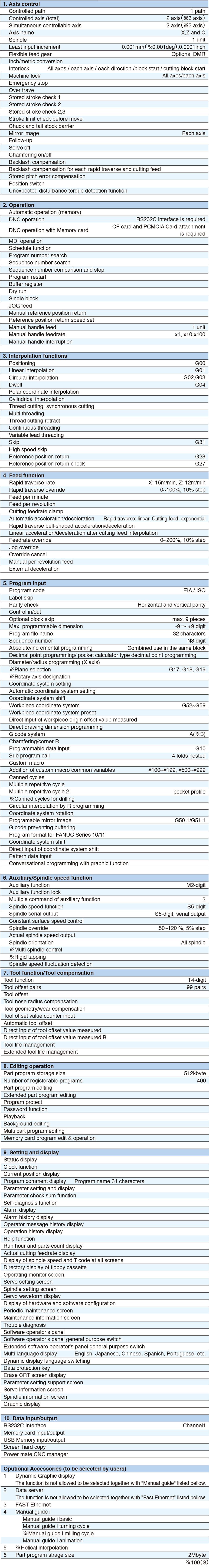

CNC FANUC Series 0i-TF Basic Specifications

Basic Specifications

CNC FANUC Series 0i-TF

CNC FANUC Series 0i-TF

Most advanced CNC controller of FANUC series 0i-TF is applid on the machine.
Most of functions including optional functions in Fanuc's classification are specified as standard. In addition to common operational functions, the machine is provided with such oprator friendly functions as help function, alarm display, and display of operation status to assist operator.

Manual operation

The "TUE series machine can be operated in manual very easily, in addition to automatic operation. Many opration buttons to be used in manual mode are located on the operation panel, which are "Table CW/CCW" including jogging, Feed selection switch for X and Z including jogging, "Table speed overrideswitch", "Feed override switch" "Operation mode selection buttons", and Manual pulse generator (MPG)".
