Horizontal Machine Line up

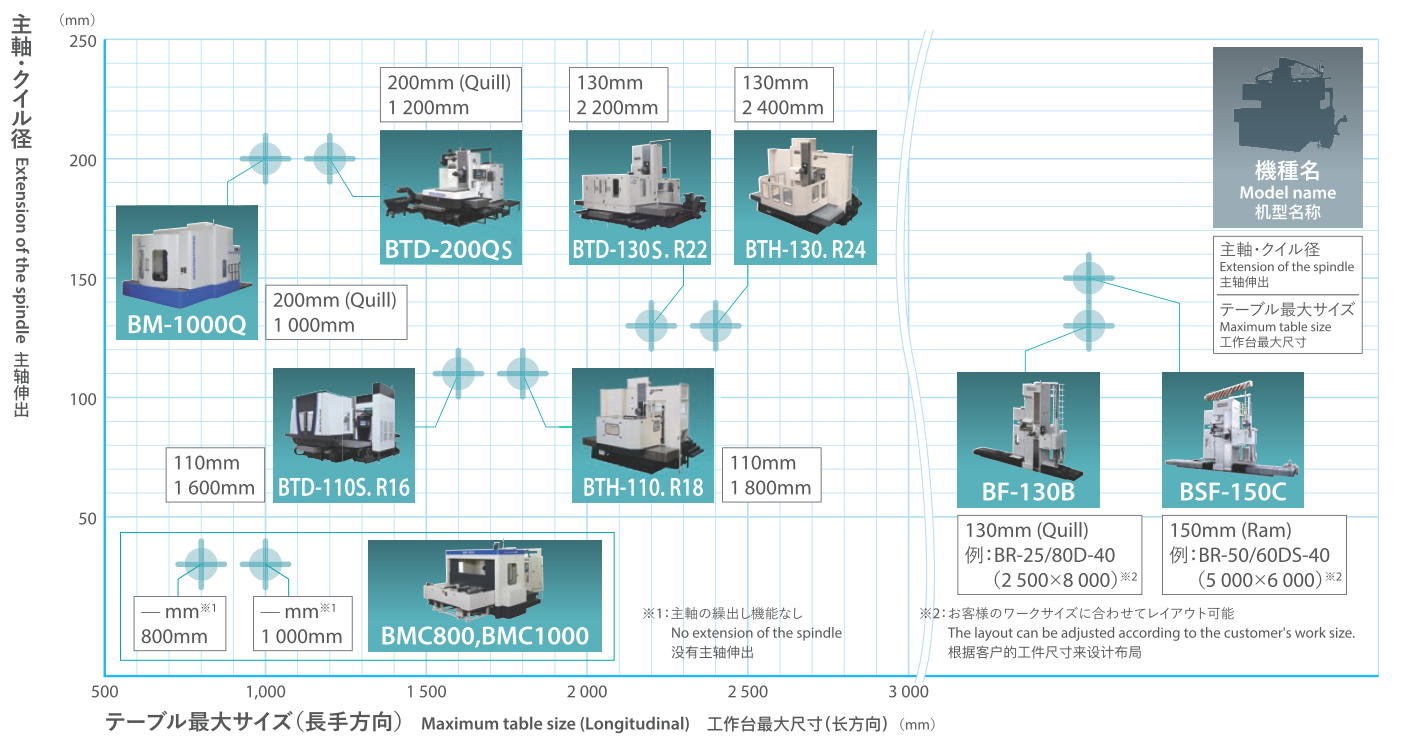

Positioning map[Extension of the spindle×Maximum table size]

[●…BA 〇…OP]
Series |
![]() Drilling |
![]() Milling |
![]() Turning |
![]() Top |
![]() Side |
![]() 5-face |
![]() Cylindrical |
![]() 5-axis |
---|---|---|---|---|---|---|---|---|
BTD・BTH | ● | ● | 〇 | 〇 | ● | 〇 | 〇 |
〇 Additional-axis |
BM-Q | ● | ● |
〇 ✕ Rotary face plate |
― | ● | ― | ● | ― |
BMC | ● | ● | ― | ● | ― | 〇 | ― | |
BF・BSF | ● | ● | 〇 | 〇 | 〇 | 〇 | 〇 | ― |
〇Optional features | ||||||||
Rotary face plate Normal direction control |
support |
|||||||
Angle head | support | support | support | support | support | support | ||
Additional axis | B-axis | support |
Turning:Precautions
Although machining can be performed physically, there may be risks such as machine load, various restrictions, and long machining time. If you have any questions, please contact us and consult with us.
By type
Table-Type Horizontal Boring and Milling Machine
Not only drilling, boring, tapping and shaping, but also heavy cutting is possible with the rigid spindle.
You can choose the spindle and table size according to your target workpiece.
Horizontal Machining Center
Automatic pallet replacement is provided as standard
Contributes to productivity improvement by increasing feed speed.
Floor-Type Horizontal Boring and Milling Machine
It is possible to machine large workpieces with little limitation of workpiece dimensions.
It is possible to machine deep parts by feeding the spindle, quill or ram.
Industry
Movie
Here is a video of Shibaura Machine's horizontal boring and milling machine.
Difference between a tapered traverse and a column traverse
Size development of spindle and table
We have compiled machining videos of products by industry.
