Thermal displacement type automatic die

Select the optimum method based on the viscosity characteristics depending on the resin temperature.

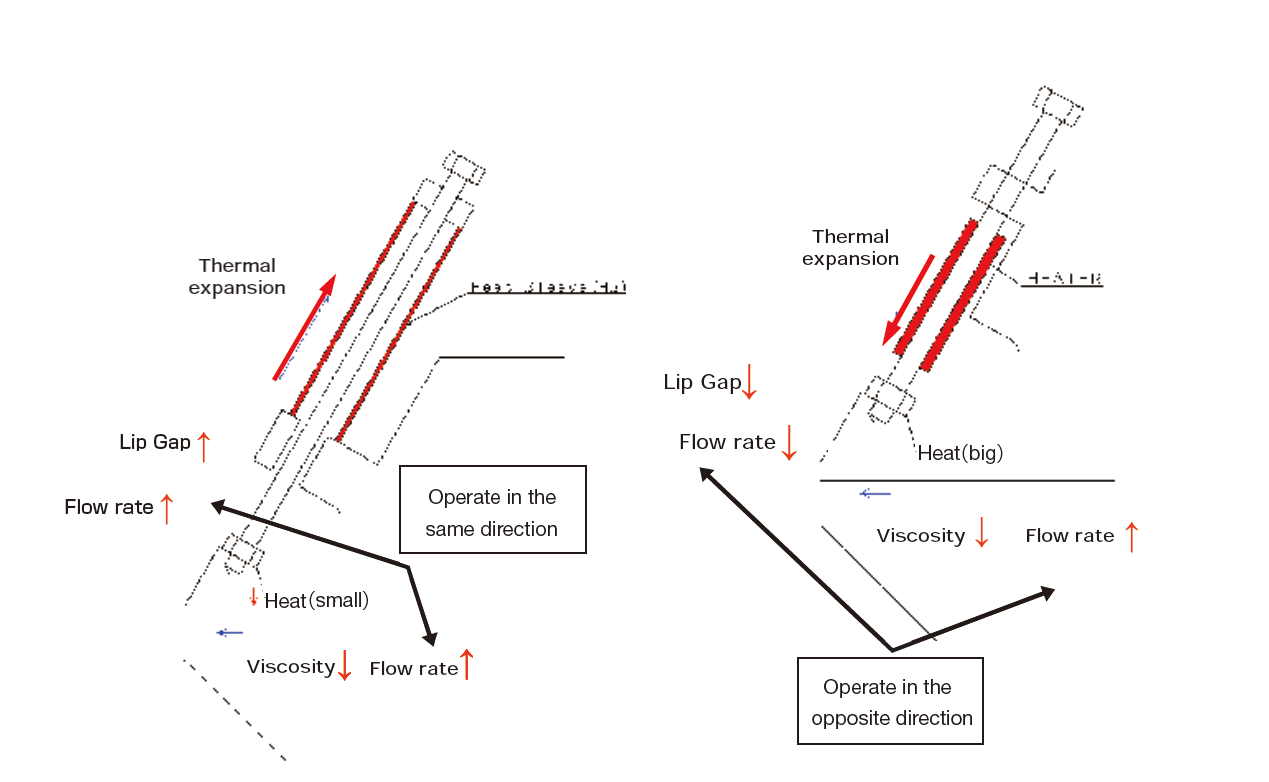

●Thermal different type
Suitable for resins with large changes in viscosity due to resin temperature.

●Thermal direct acting type
Suitable for large discharge molding and thick sheets.

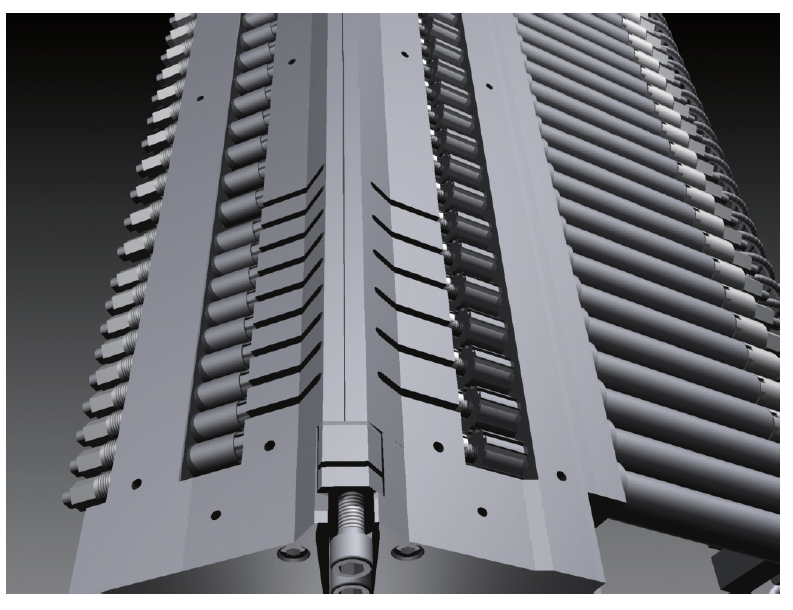

High orecision adjustment is possible by using a double bending type that is automatic on one side and manual on one side.

Features
●Precision control method based on structual analysis data of automatic dies.

●A temperature sensor is mounted on each Bolt to control the temperature in order to stabilize the thickness.

Select the optimum thickness gauge from all types such as in frared, X-ray, β-ray, and laser type.
