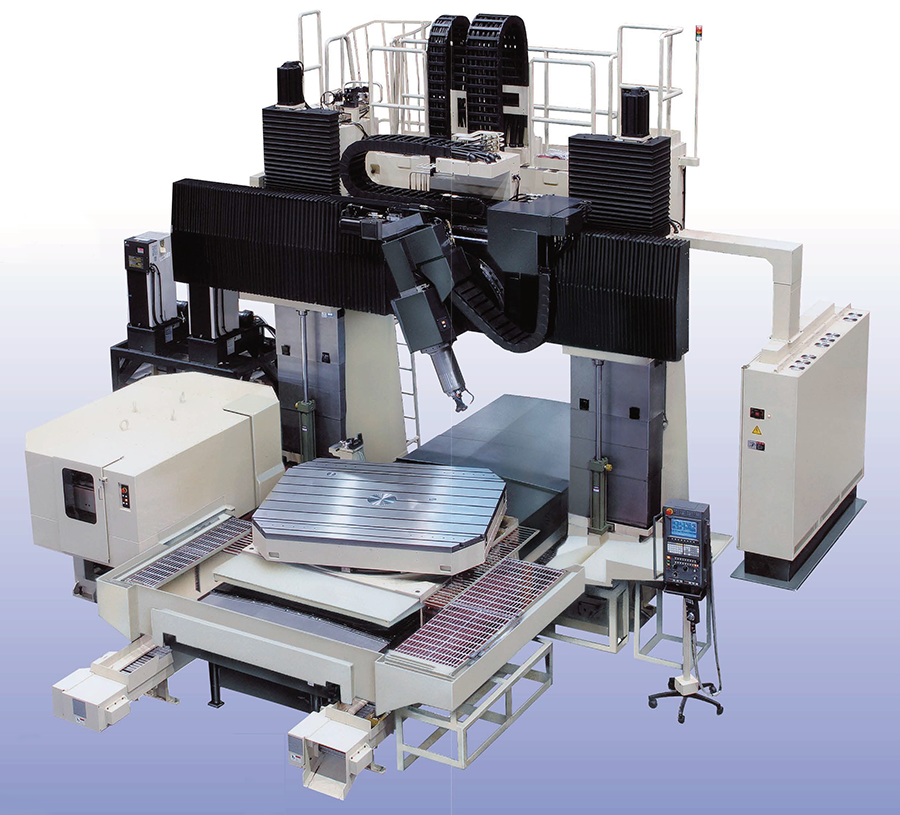

MP-(5C) series

MP-(5C)


The compact 5-axis machining center to contribute to the industry of Die-mold, IT,and Aircraft

Axis configuration

WELCOME TO THE DEBUT of our new machine to meet the demand of a time, The compact 5-axis machining center to contribute to the industry of Die-mold, IT, and Aircraft

  • Highly efficient and extremely high quality machining by the new concept 5-axis machining center with rotary table and swivel head
  • With no ram axis, highly stable machining by crossrail elevating
  • Easy set-up for slant machining operation by 2-axis rotating function with optional angle positioning
  • High productivity improved by process intensive operation

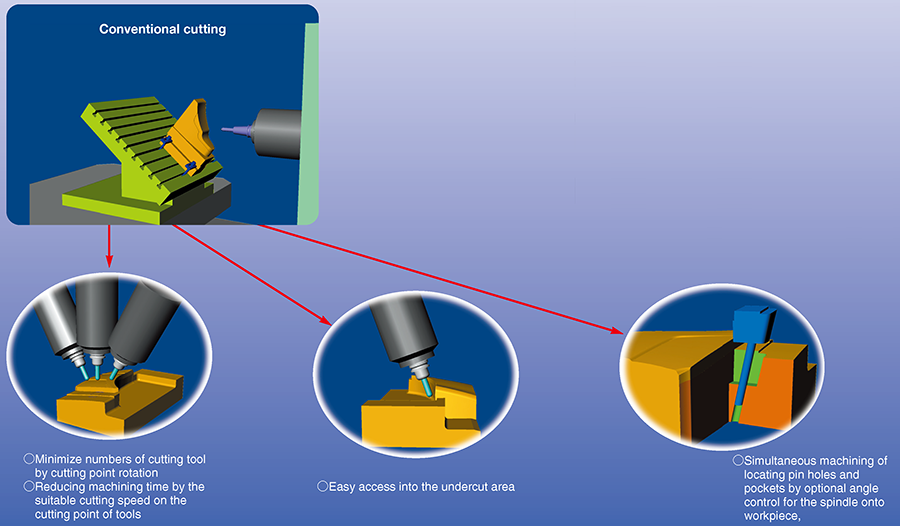

Easy set-up for slant machining and machining samples

Easy set-up for slant machining and machining samples

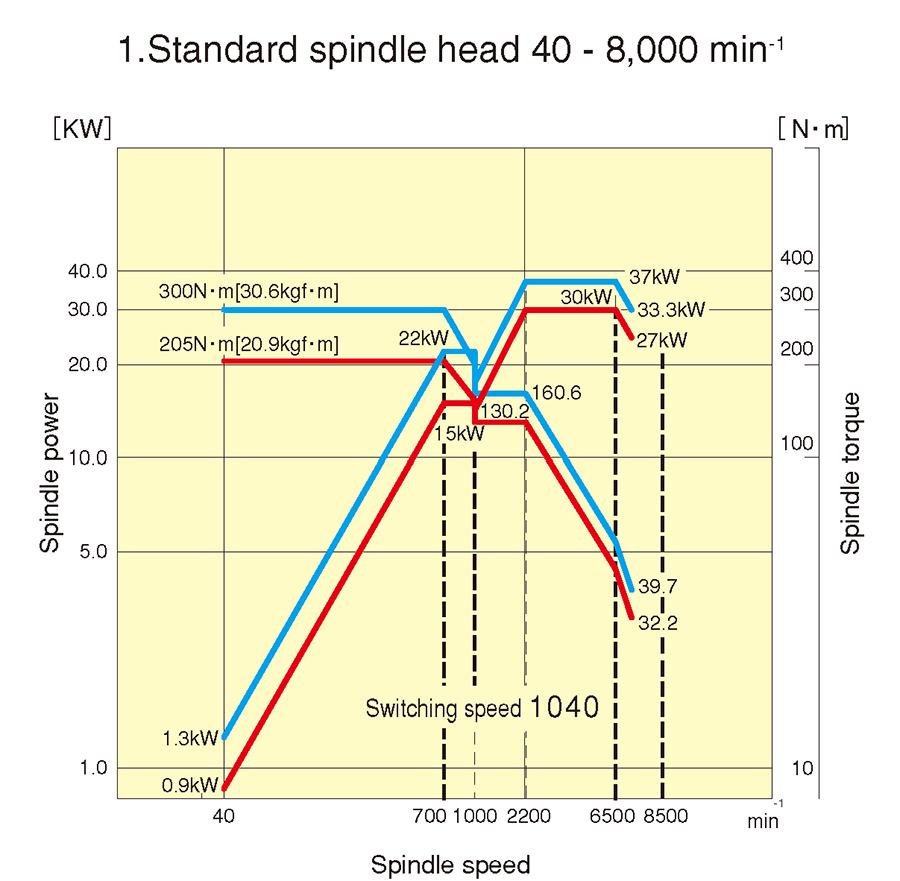

Spindle torque output diagram

Spindle torque output diagram

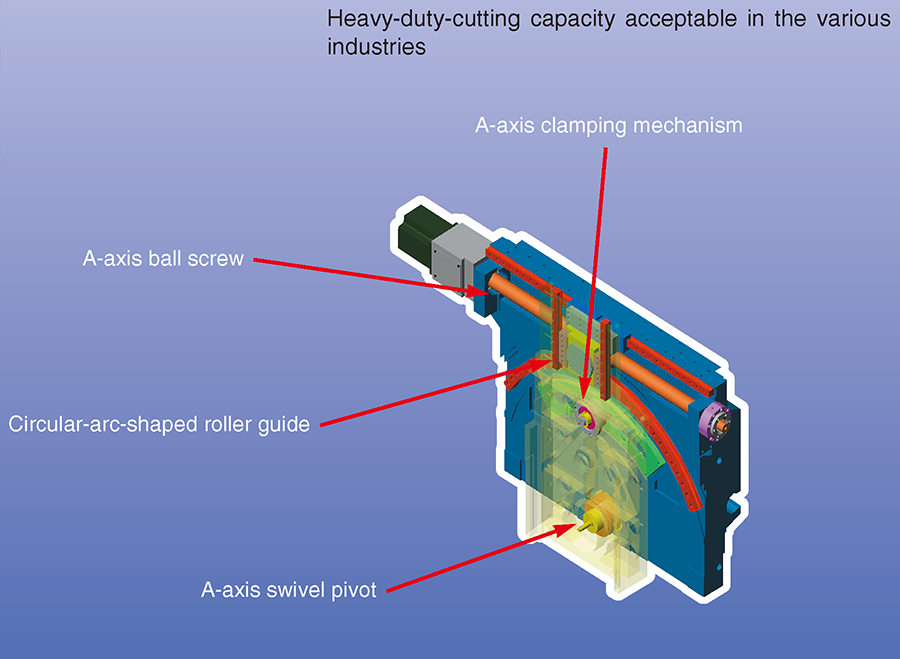

Unique A-axis swing mechanism

Unique A-axis swing mechanism

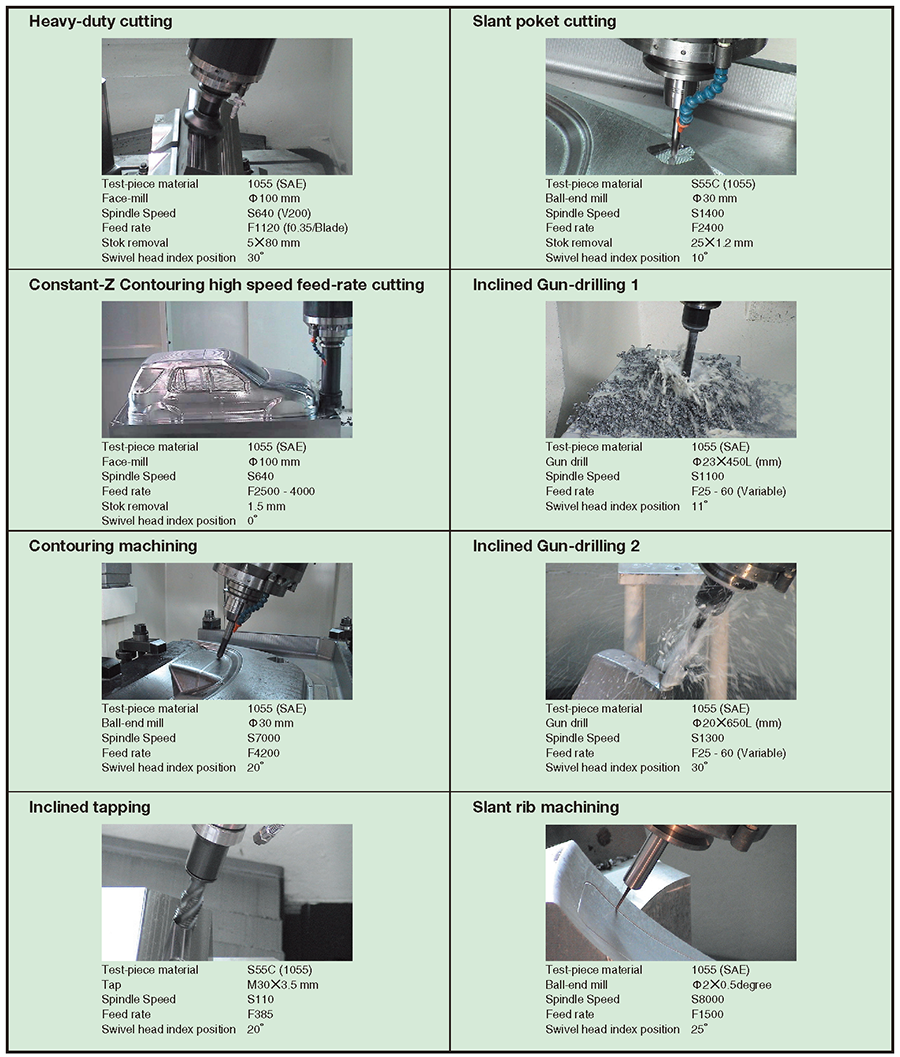

Examples of machining data

Examples of machining data

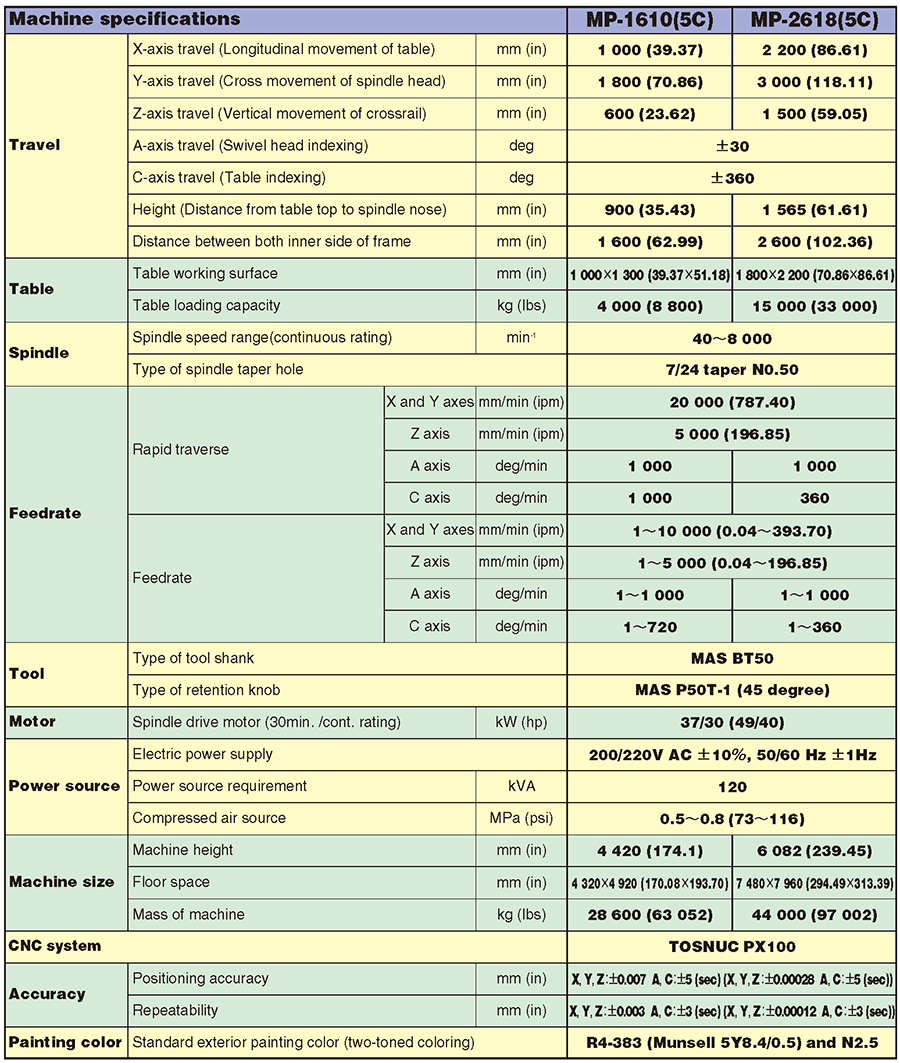

Machine specifications

Machine specifications

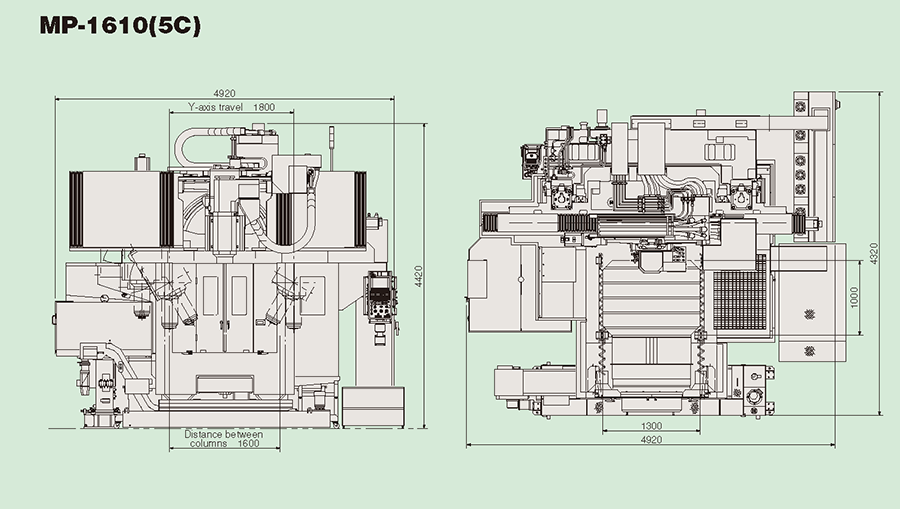

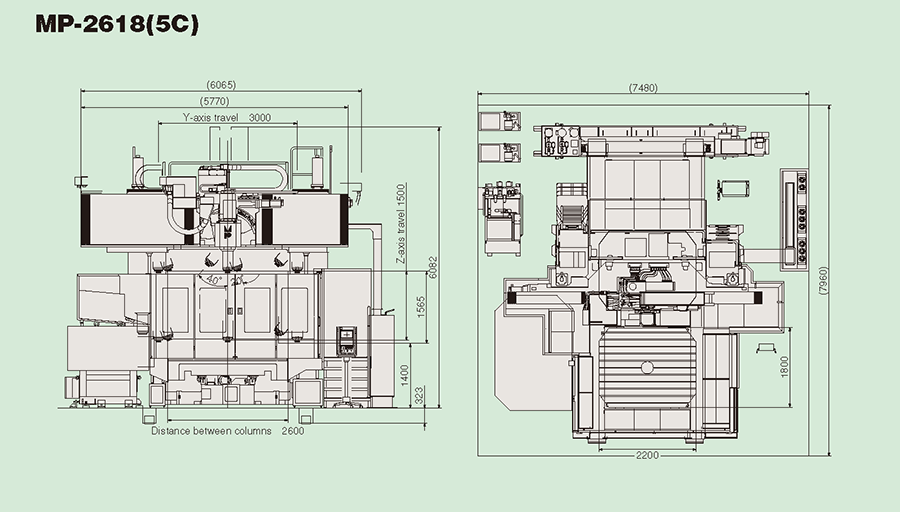

GENERAL VIEW

GENERAL VIEW
GENERAL VIEW

General view and Machine Layout
