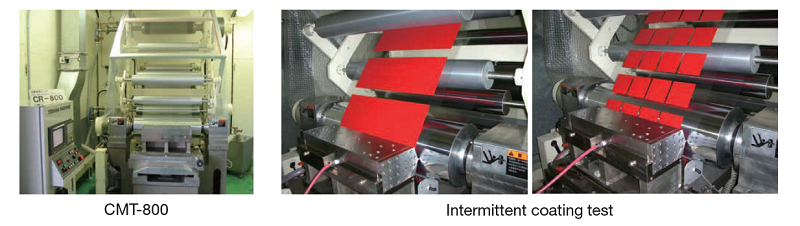

Coating Machine CMT test machine
Direct Drive motors for not only coating unit back-up roll but also Infeed and Outfeed roll is installed.You can select three coating methods (Die Coater, Bar Coater, Small Gravure Coater)by using our test coater.
| Item | CMT-800 | |
|---|---|---|
| Film width | 600～700mm | |
| Line speed | Max. 50m/min | |
| Tension | 30～150N/All width | |
| Coating unit | Coating method | Die, Bar, Small Gravure |
| Roll drive | Built-in Direct Drive Motor | |
| Coating width | 500mm | |
| Feed unit | Method | Suction roll |
| Roll drive | Built-in Direct Drive Motor | |
| Dryer unit | Method | Roll support style, Floating style |
| Dryer length | 2m×3Z 6m | |
| UV unit | UV lamp | Electrodeless lamp H bulb, D bulb |
| Output | Max. 240W/cm | |
