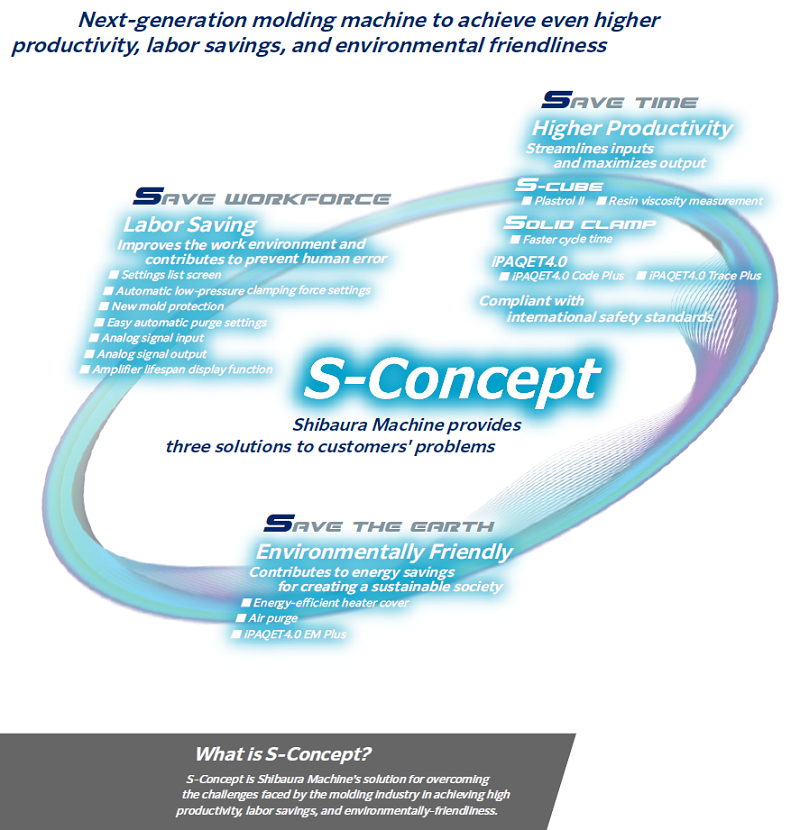

All-electric injection molding machine EC SXⅢ series S-Concept

• S-Concept
• SAVE TIME / Higher Productivity
• SAVE WORKFORCE / Labor Saving
• SAVE THE EARTH / Environmentally Friendly

All-electric injection molding machine EC SXⅢ series S-Concept is a high productivity,
This is a new generation molding machine that achieves a high level of labor-saving and environmental friendliness.

• BACK TO TOP

SAVE TIME　Higher Productivity

Streamlines inputs and maximizes output

Injection unit ≪S-CUBE≫

Injection unit for stable plasticization and filling

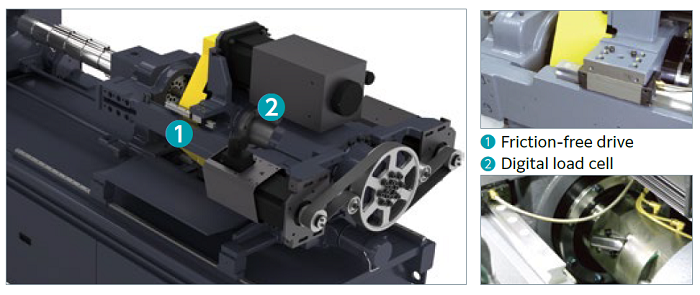

• Friction-free drive that minimizes sliding resistance

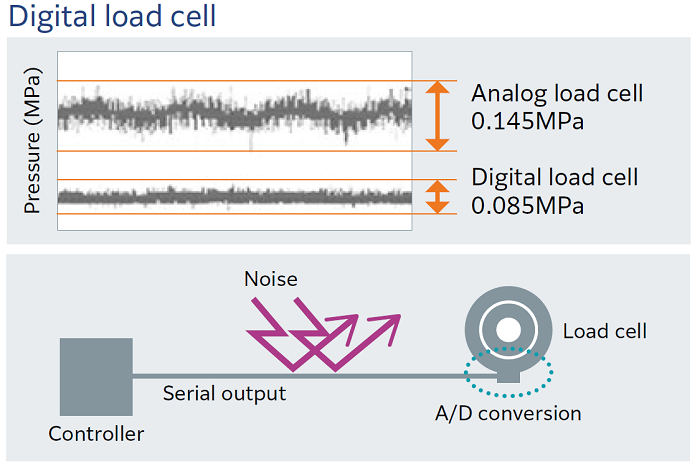

• Noise-resistant digital load cell that improves pressure detection accuracy

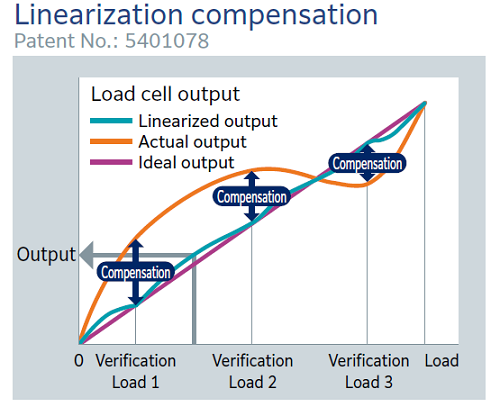

• Linearization compensation that eliminates variation between machines
• High output motor that enables industry's top pressure holding capacity

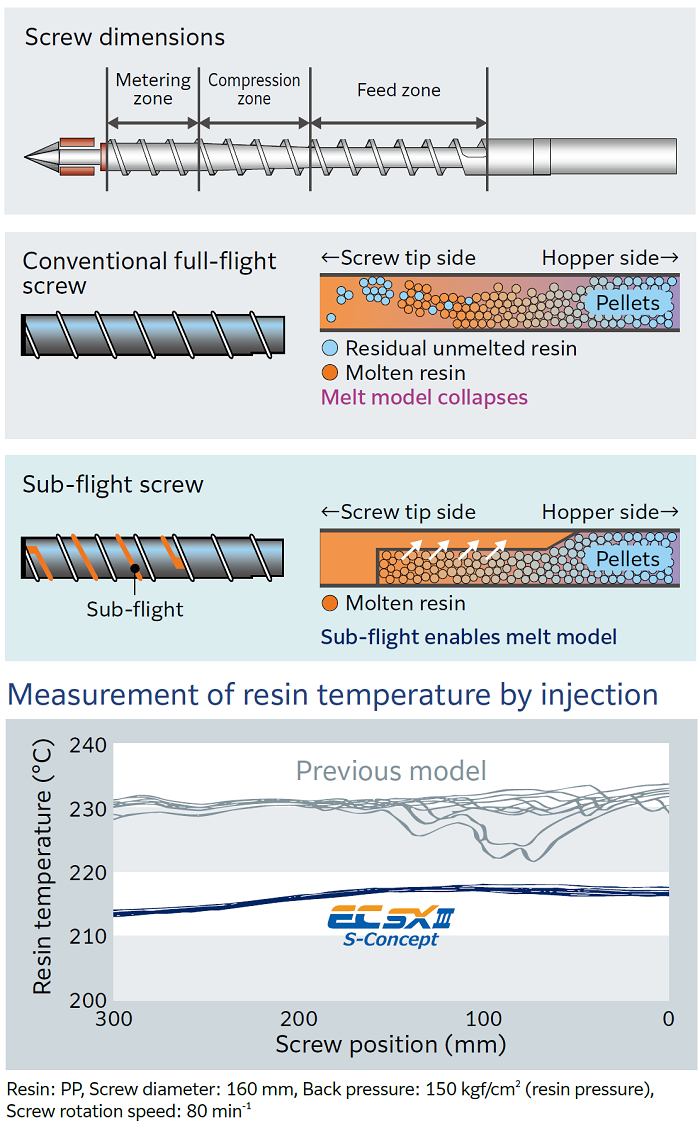

High-performance screw for uniform plasticization of materials

• Screw design for high quality molded products
  Shibaura Machine's standard screw has a sub-flight for
  separating the solid channel from the melt channel, and
  transferring the molten resin, thereby eliminating break-up.

Wide Variety of Screws for Various Resins

• A wide variety of screw types are available for various resins, including standard sub-flight screws (DBG).

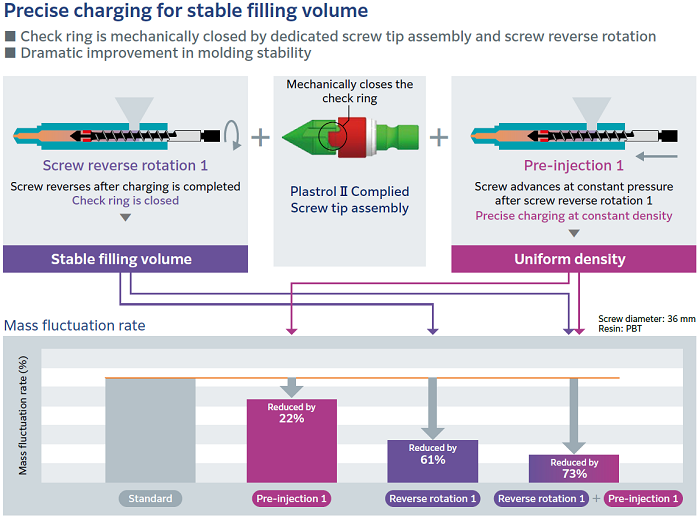

Plastrol®Ⅱ（OPTION）

Precise charging for stable filling volume

• Check ring is mechanically closed by dedicated screw tip assembly and screw reverse rotation
• Dramatic improvement in molding stability

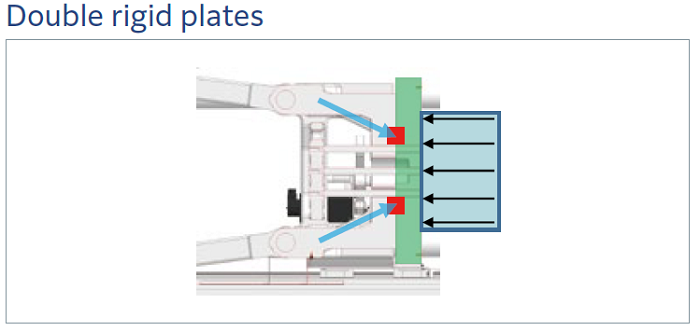

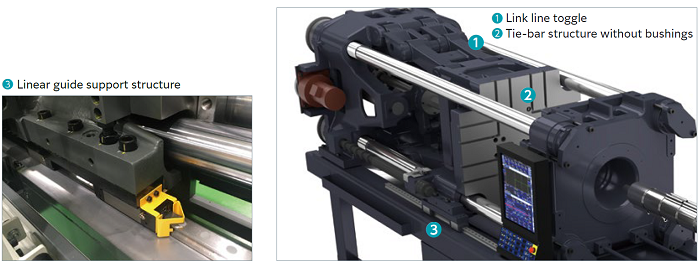

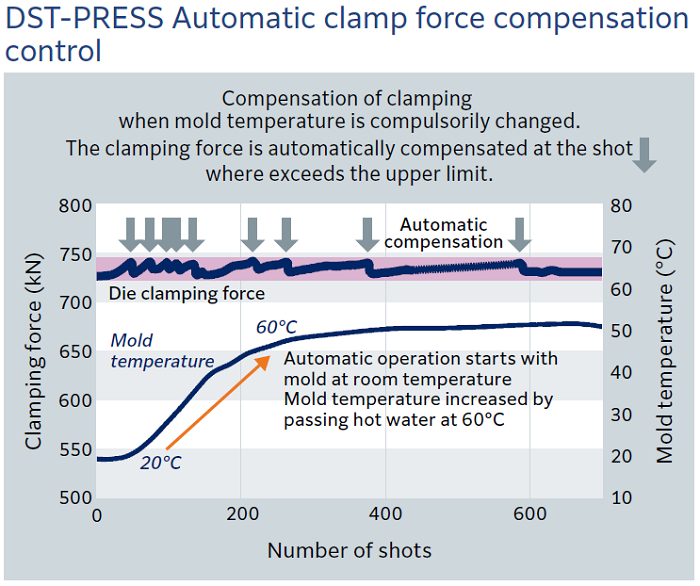

Clamp unit ≪SOLID-CLAMP≫

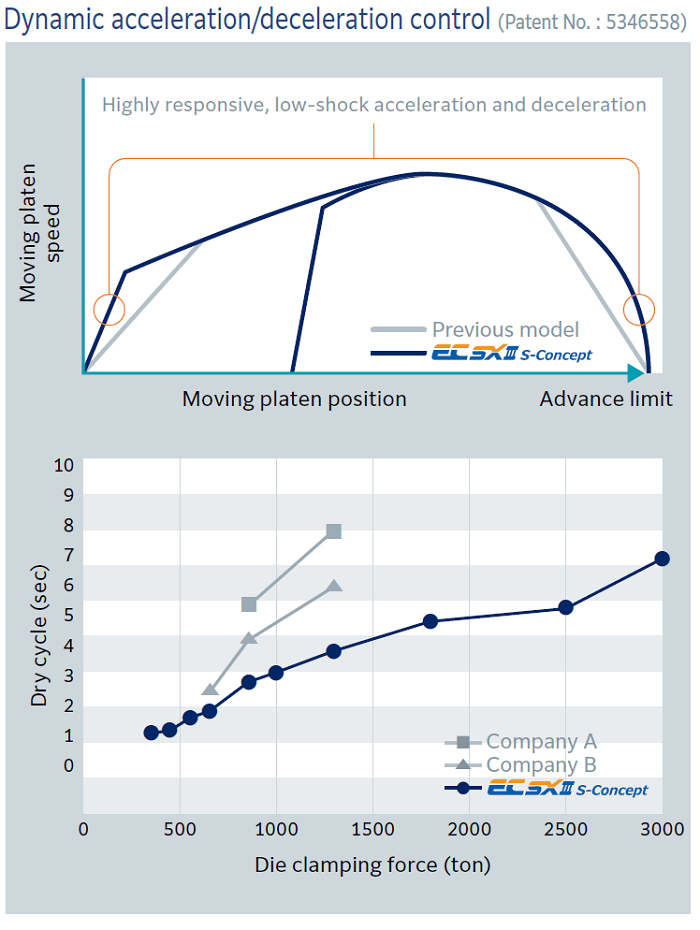

Shorten the cycle time without changing the molding conditions

• Enabling shorter cycle times without impact on the quality while maintaining the same molding conditions as before

• Compared to EC-NⅡ (previous generation), cycle time can be shortened by up to 168 hours per year*
  *For the same injection conditions, 200 hr of production per month, and a cycle time of 10 s.*Adjustments may be required depending on the customer's production system.

• BACK TO TOP

SAVE WORKFORCE　Labor Saving

Improves the work environment and contributes to prevent human error

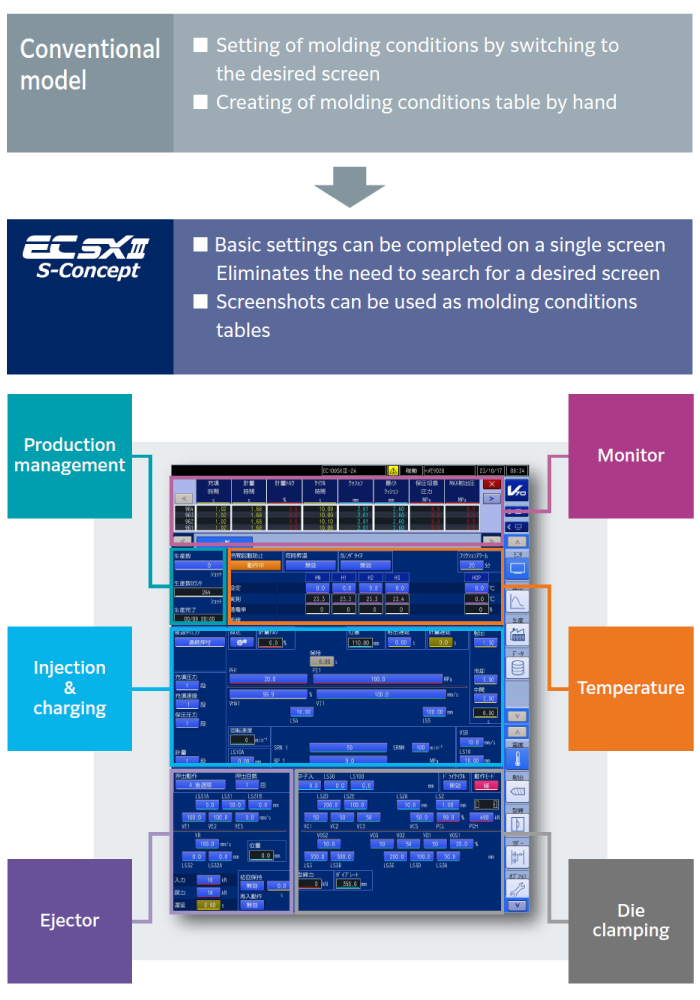

Controller ≪INJECTVISOR® V70≫

Six key elements of setting are integrated into one screen. This eliminates the need to search for the desired screen.

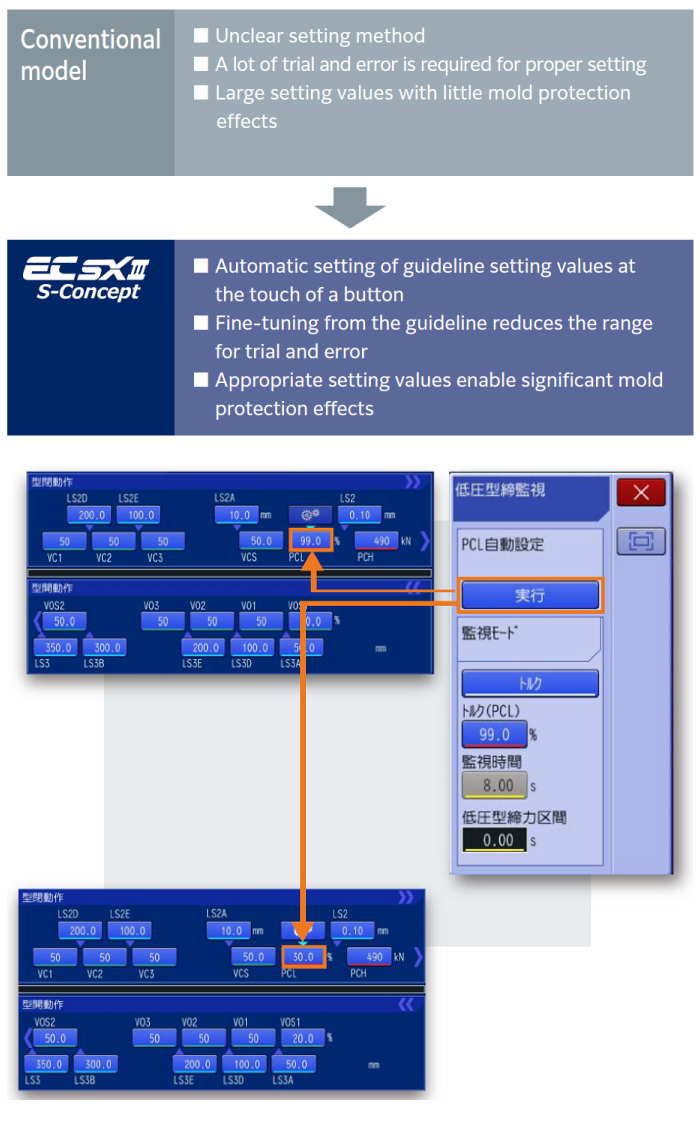

Automatic setting based on guideline setting values and advanced mold protection functions.

• The low pressure clamping force (PCL) and mold closing limit position (LS2) are automatically calculated and set
• Enables fine adjustments from automatic setting values to increase the mold protection effects

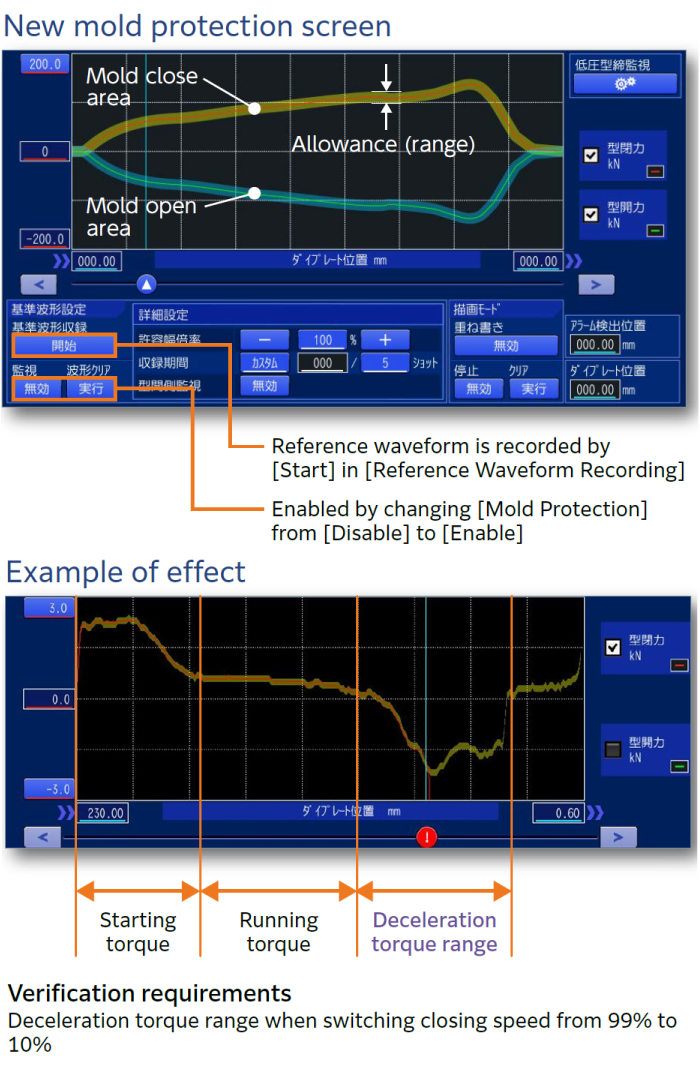

Easy setting of torque monitoring during mold open and close

• Reference torque waveforms can be acquired and set with a single touch
• Mold open process can be monitored as well as mold close process
• New mold protection easier-to-use for preventing mold damage

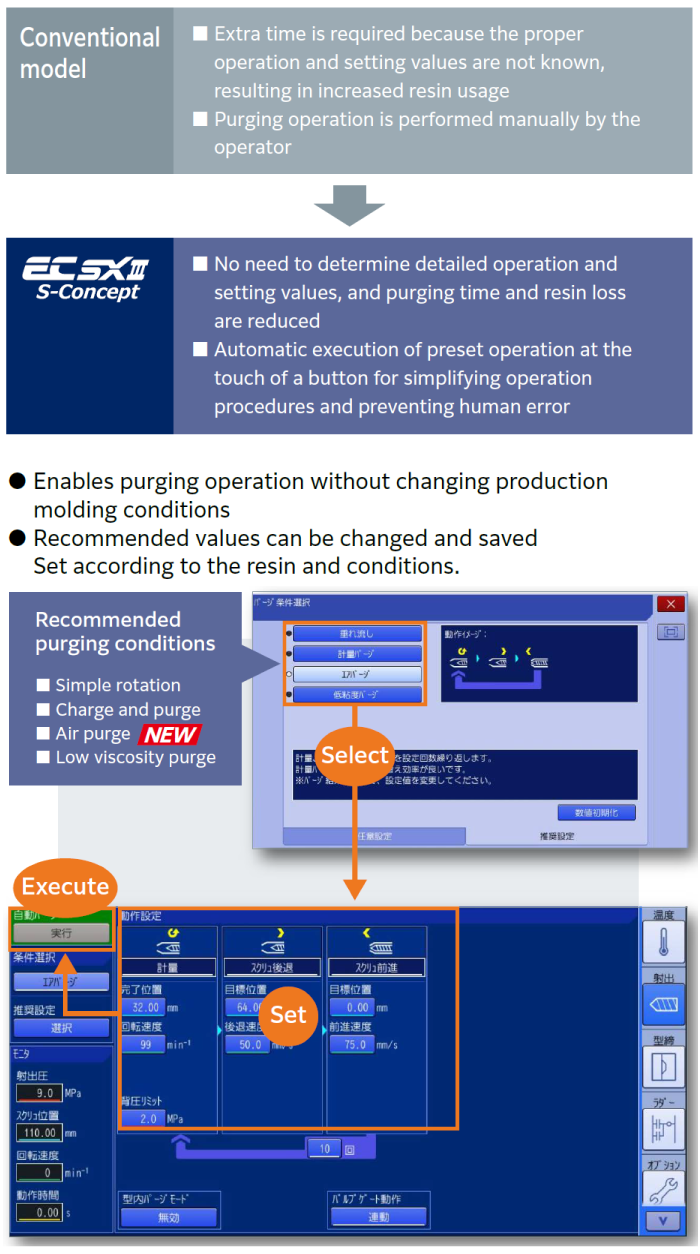

Reduces purging time and resin loss. Simplifies purging operations.

• Recommended purging conditions and values are automatically set
• Purging operation is executed by a simple operation (can also be performed from the operation panel)

• BACK TO TOP

SAVE THE EARTH　Environmentally Friendly

Contributes to energy savings for creating a sustainable society

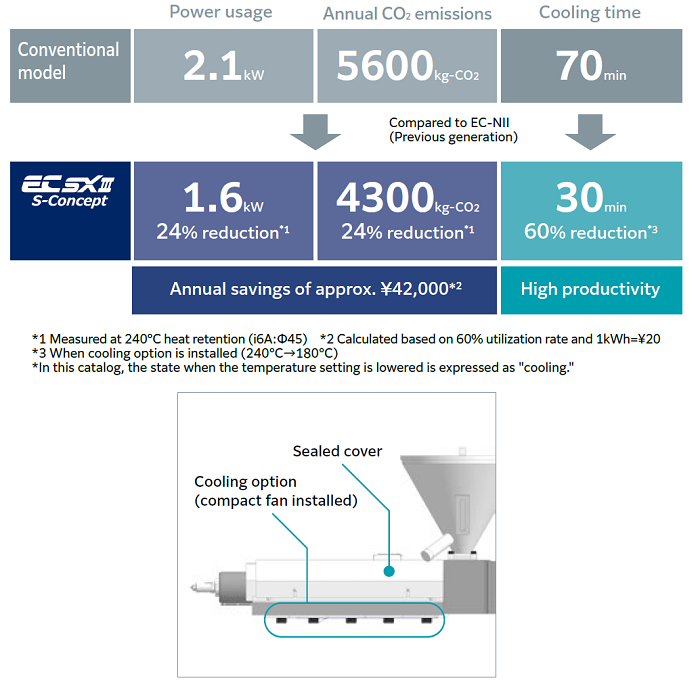

New heater cover with both heat retention and cooling performance

• Enclosed cover structure for improved heat retention and energy-saving performance
• Cooling option provides both heat retention and cooling efficiency

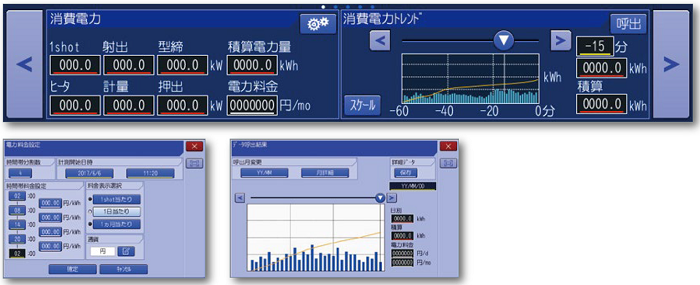

Displays Power Consumption (Calculated Value) of Molding Machine

• Shows current and cumulative power consumption, trend graph for a specified period, electricity fees, etc.
• Power usage data can be saved to a USB flash drive. Backup data for the past year can be loaded.

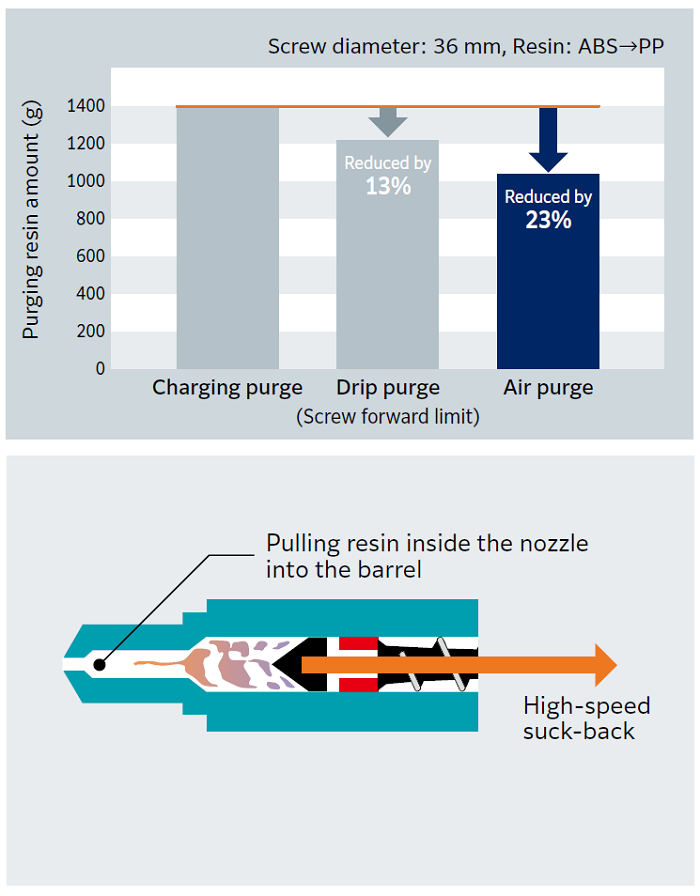

Dramatically Improve Color Change Efficiency

• High-speed suck-back during automatic purging to pull resin inside the nozzle enables dramatically improved color change efficiency
