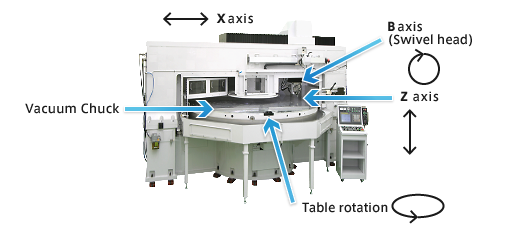

High Precision Turning Machine UTD Series
Main Specifications
| Main Specifications |
UTD-2200B(H) |
UTD-3400B(H) |
| Maximum workpiece diameter |
mm |
2200 |
3400 |
| Radial movement of Saddle (X axis) |
Travel |
mm |
1100 |
1850 |
| Maximum feedrate |
mm/min |
1500 |
| Vertical movement of Ram (Z axis) |
Travel |
mm |
160 |
240 |
| Maximum feedrate |
mm/min |
1500 |
| Swivel Head rotation (B axis) |
Travel |
deg |
±360 |
| Maximum feedrate |
deg/min |
1500 |
1000 |
| Work table |
Table diameter |
mm |
2200 |
3400 |
| Allowance load |
kg |
1000 |
2000 |
| Rotation speed |
min-1
|
10-100 |
10-80 |
| Programming resolution |
X, Z axis |
mm |
0.00001 |
| B axis |
deg |
0.00001 |
| Machine mass |
kg |
10000 |
38000 |
