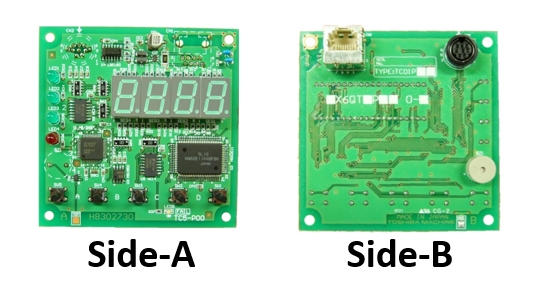

TC5-P00
Features
Exclusive operation panel for TCmini
Equipped with a 7-segment display, LED display lamps, switch input, buzzer input, RS485 communications.
(*) A dedicated cable and parameter settings are required.
(*) Panel seat and plate can be customize.
Specifications
| Item | TC5-P00 |
|---|---|
| Push button input | 5 points |
| LED display indicator | 4 points |
| 7-segment LED display | 4 digits |
| Buzzer output | Available |
| Minimum order lot | 20 units |
| RS485 communication | 1 port |
| External dimensions (W) × (H) × (D) | 135×80×19 (mm) |
