Test center Coating Machine
We have started test coating service in our Numazu plant.
Installing Direct-Drive motors for not only coating unit back-up roll but also In Feed and Out Feed roll makes advantage of stabilizing web at coating point

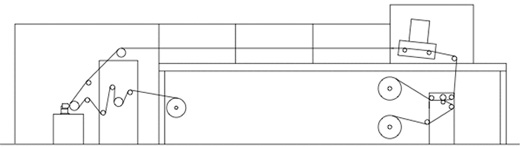

Basic specification of pilot coating machine
| Base material width | 600 - 700mm | |
|---|---|---|
| Coating speed | Max. 50m/min | |
| Tension | 30-300N/Width | |
| Coating | Coating methods | Slot Die Coating |
| Roll drive | Built-in direct drive motor | |
| Gap adjustment | Positioning by Servomotor | |
| Coating Width | 500mm | |
| Feeder | Methods | Suction Roll |
| Roll Drive | Built-in type | |
Test result by quasi-PVA coating liquid. (Bird's eye view of Film thickness)
We conducted a test of quasi-PVA coating liquid using our pilot coating machine
(Die coating method) After application, we measured dried film thickness by optical
interferometry. And then, make film thickness distribution into bird's eye view.
We verified that average amount of film-thickness conducted by both way, low-viscosity
and high viscosity, are ±2%.
