Castings

Here we introduce some of our casting products that we produce with our accumulated expertise and knowledge of technologies.

Gray cast iron (FC300)

Bed (49,600 kg)
Bed (49,600 kg)
Bed (39,000 kg) (caption)
Bed (39,000 kg) (caption)

Ductile cast iron (FCD450) (caption)

Fixed plate (49,600 kg)
Fixed plate (49,600 kg)
Clamping cylinder (1,200 kg)
Clamping cylinder (1,200 kg)
Injection bracket (900 kg)
Injection bracket (900 kg)

Special cast iron

Hybrid Barrel (Antifriction barrel of Twin Screw Extruder)

Production by casting hybrid barrel (Antifriction barrel of Twin Screw Extruder) ductile cast iron and high chromium cast iron in a mold.

High-stiffness, high-damping cast iron TAFSON® (patent publication number 2008-223135)

Has the same stiffness as FC300 and the vibration damping ability more than 3 times that of FC300.

We have developed the high-stiffness and high-damping cast iron TAFSON® which has the high Young's modulus and high vibration damping ability needed for high-precision machine tools and measuring instruments. Applications to structural objects where vibrations are undesirable are expected.

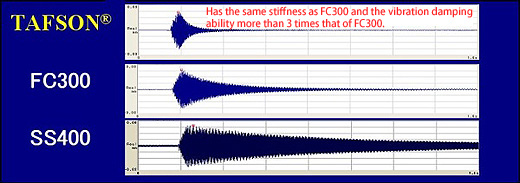

(Vibration damping waveform comparison; maximum amplitude: 1 × 10 - 4ε; measurement time: 1.6 sec)
Note: TAFSON® is a registered trademark of Shibaura Machine (registration number: 5169163).
