What's TCmini?
What's TCmini?
To put it simply, it is a microcontroller board(board type PLC)that can be programmed in ladder language (PLC language).
Programs can be created easily without knowledge of C and Assembly languages.
Standard model
・No development cost and time
・Abundant lineup (DI/O, analog input and output, temperature input and some communications)
・Can be sold in small quantity

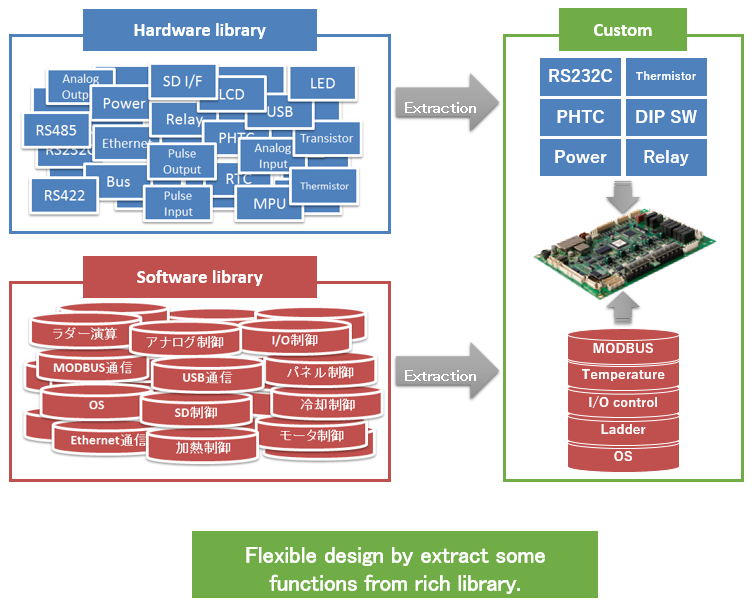

Custom model
・Can be modified for the equipment
・Customizable for hardware, software and design.
・Cost down by mass production.
Features of TCmini
We'll introduce the features of TCmini.

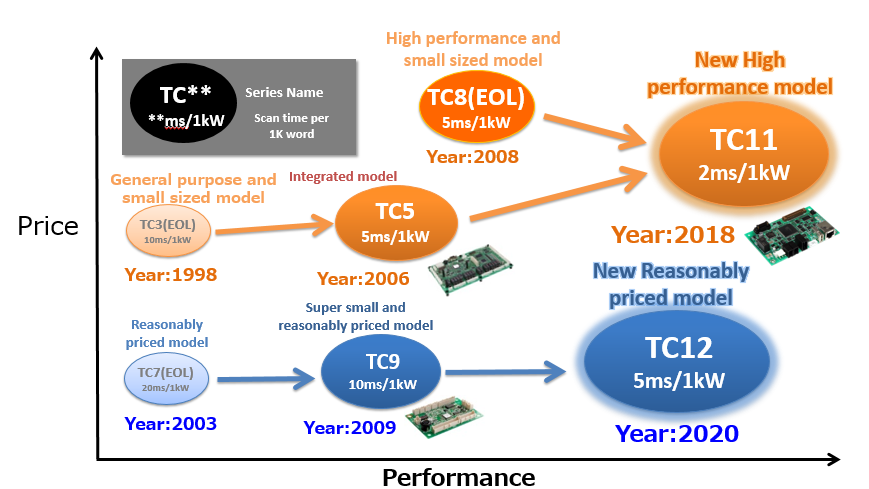

Full line-up ! TCmini series
TCmini System Configuration
A typical system configuration is shown.

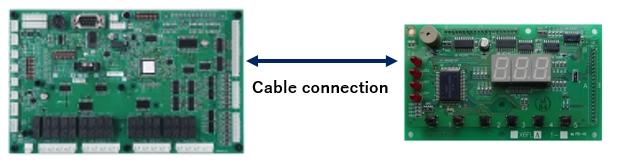

1. Combination example of a standard machine and an operation panel
Model used
・【Standard model】:TC12-02
・【Operation model】:TC3-P01

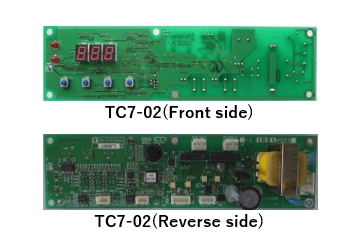

2. Example of integrated operation panel type custom machine configuration
Model used
・【Custom model】:TC7-02
